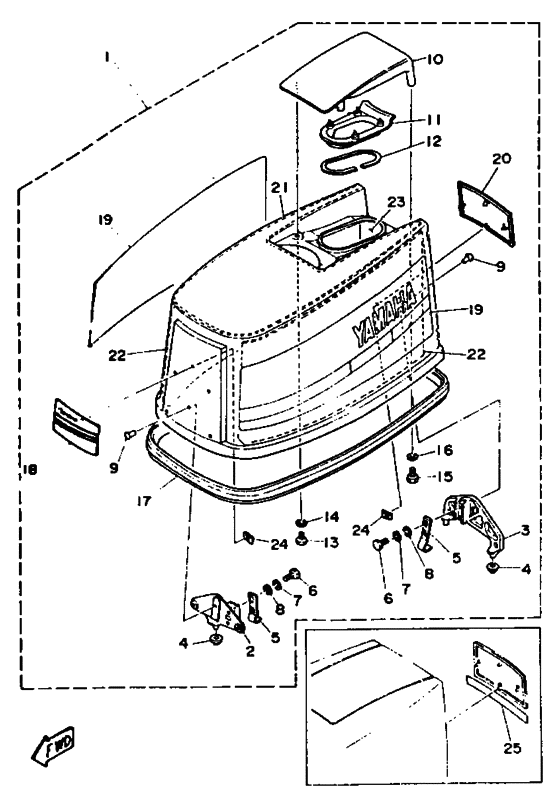

Top cowling Diagram Yamaha 85 TLR
- Year
- 1993
- Model
- C85
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-42610-L1-EK
Top Cowling Assembly
|
688-42610-L1-EK |
— | ||
|
2
|
2
688-42647-00-94
Holder, Clamp Band
|
688-42647-00-94 |
— | ||
| replacement | |||||
|
2
|
2
688-42647-00-00 Clamp Band Holder |
688-42647-00-00 |
from US $20.97 |
||
|
3
|
3
688-42649-00-94
Holder, Clamp Band
|
688-42649-00-94 |
— | ||
| replacement | |||||
|
3
|
3
688-42649-00-00 Holder, Clamp Band |
688-42649-00-00 |
from US $43.54 |
||
|
4
|
4
663-42662-00-00 Damper |
663-42662-00-00 |
US $8.93 |
||
|
5
|
5
688-42652-10-00 Hook 2 |
688-42652-10-00 |
from US $8.42 |
||
|
6
|
6
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
90266-06M02-00 Rivet (697) |
90266-06M02-00 |
from US $2.24 |
||
|
10
|
10
688-42613-00-EK
Molding, Air Duct
|
688-42613-00-EK |
— | ||
|
11
|
11
688-42618-00-00 Air Shroud, Top Cowling |
688-42618-00-00 |
from US $21.39 |
||
|
12
|
12
688-42628-00-00 Seal |
688-42628-00-00 |
from US $2.83 |
||
|
13
|
13
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
15
|
15
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
688-42615-00-00 Seal |
688-42615-00-00 |
US $52.78 |
||
|
18
|
18
6H1-42686-00-00
Emblem, Front
|
6H1-42686-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
688-W0070-02-00
Graphic Set
|
688-W0070-02-00 |
— | ||
|
20
|
20
688-42687-60-00
Emblem, Rear
|
688-42687-60-00 |
— | ||
|
21
|
21
689-W4266-30-00
Damper (300X600)
|
689-W4266-30-00 |
— | ||
|
22
|
22
689-W4266-40-00 Damper, Form |
689-W4266-40-00 |
from US $50.01 |
||
|
23
|
23
689-W4266-10-00
Damper, Form
|
689-W4266-10-00 |
— | ||
|
24
|
24
90183-05M01-00 Nut, Spring |
90183-05M01-00 |
from US $2.16 |
||
|
25
|
25
6H1-42684-00-00
Mark, Cowling
|
6H1-42684-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
