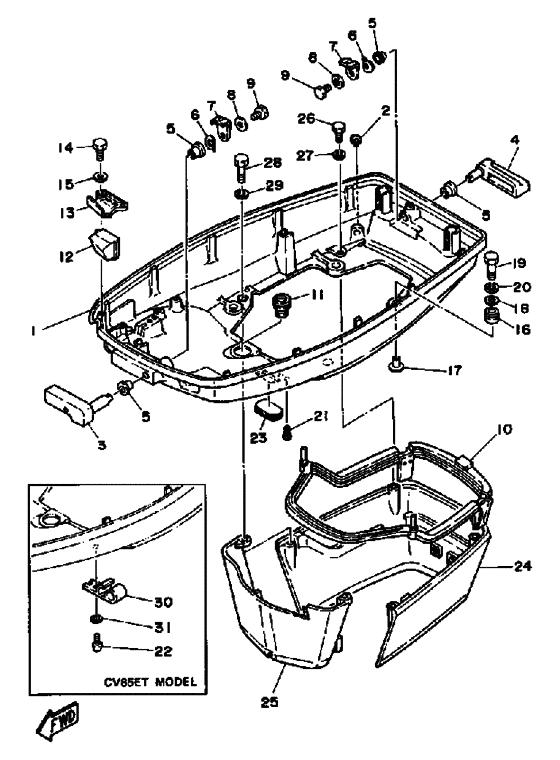

Bottom cowling Diagram Yamaha 85 ETL
- Year
- 1990
- Model
- CV85
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 85
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
688-42711-03-EJ
Bottom Cowling
|
688-42711-03-EJ |
— | ||
| replacement | |||||
|
1
|
1
688-42711-04-EJ
Cowling Bottom
|
688-42711-04-EJ |
— | ||
|
2
|
2
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
2
|
2
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.93 |
||
|
3
|
3
688-42815-00-EJ
Lever, Clamp 1
|
688-42815-00-EJ |
— | ||
| replacement | |||||
|
3
|
3
688-42815-01-EJ
Lever Clamp
|
688-42815-01-EJ |
— | ||
|
4
|
4
688-42817-00-EJ
Lever, Clamp 3
|
688-42817-00-EJ |
— | ||
| replacement | |||||
|
4
|
4
688-42817-01-EJ
Lever Clamp
|
688-42817-01-EJ |
— | ||
|
5
|
5
90386-13M38-00 Bush |
90386-13M38-00 |
from US $2.55 |
||
|
6
|
6
90206-13019-00 Washer, Wave |
90206-13019-00 |
from US $2.83 |
||
|
7
|
7
688-42816-00-00 Lever, Clamp |
688-42816-00-00 |
from US $11.76 |
||
|
8
|
8
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
9
|
9
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
10
|
10
688-42716-02-00 Rubber, Seal 1 |
688-42716-02-00 |
US $58.58 |
||
| replacement | |||||
|
10
|
10
688-42716-03-00 RUBBER SEAL 1 |
688-42716-03-00 |
from US $58.58 |
||
|
11
|
11
663-42724-00-00 Grommet |
663-42724-00-00 |
US $8.22 |
||
| replacement | |||||
|
11
|
11
663-42724-01-00 Grommet |
663-42724-01-00 |
from US $8.22 |
||
|
12
|
12
688-42725-10-00 Grommet |
688-42725-10-00 |
US $12.18 |
||
|
12
|
12
688-42725-01-00 Grommet 2 |
688-42725-01-00 |
US $12.18 |
||
| replacements | |||||
|
12
|
12
688-42725-02-00 Grommet |
688-42725-02-00 |
from US $7.76 |
||
|
12
|
12
688-42725-03-00 GROMMET |
688-42725-03-00 |
from US $12.18 |
||
|
13
|
13
688-42738-00-94 Plate, Fitting |
688-42738-00-94 |
US $9.35 |
||
| replacement | |||||
|
13
|
13
688-42738-01-8D Plate, Fitting |
688-42738-01-8D |
from US $9.35 |
||
|
14
|
14
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.02 |
||
|
17
|
17
90387-06M69-00 Collar |
90387-06M69-00 |
from US $4.04 |
||
|
18
|
18
90201-06416-00 Washer, Plate |
90201-06416-00 |
from US $2.69 |
||
|
19
|
19
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
19
|
19
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
90338-05M03-00 Plug |
90338-05M03-00 |
from US $1.84 |
||
|
22
|
22
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.69 |
||
|
23
|
23
688-42726-10-00 Grommet |
688-42726-10-00 |
US $4.11 |
||
|
23
|
23
6H4-42726-00-00 Grommet |
6H4-42726-00-00 |
US $3.68 |
||
|
24
|
24
688-42741-00-EJ
Apron 1
|
688-42741-00-EJ |
— | ||
| replacement | |||||
|
24
|
24
688-42741-01-EJ
Plate Fitting
|
688-42741-01-EJ |
— | ||
|
25
|
25
688-42771-00-EJ
Apron 2
|
688-42771-00-EJ |
— | ||
| replacement | |||||
|
25
|
25
688-42771-01-EJ
Apron
|
688-42771-01-EJ |
— | ||
|
26
|
26
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
26
|
26
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
28
|
28
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
28
|
28
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
29
|
29
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
30
|
30
6E5-24367-01-00 Clamp, Fuel Pipe 2 |
6E5-24367-01-00 |
from US $10.44 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
