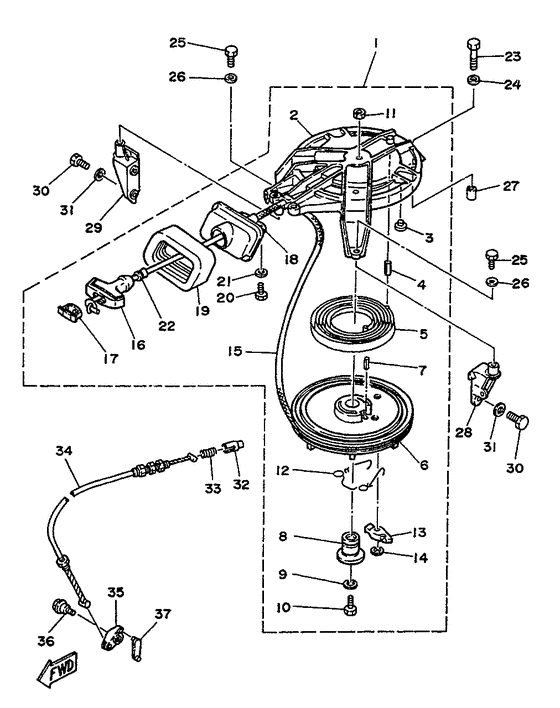

Starter Diagram Yamaha 9.9 MHS/L
- Year
- 1990
- Model
- 9.9D
- Model code
- 6E7
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 9.9
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E7-15710-04-94
Starter Assembly
|
6E7-15710-04-94 |
— | ||
| replacement | |||||
|
01
|
01
6E7-Y129P-00-00
element
|
6E7-Y129P-00-00 |
— | ||
|
02
|
02
682-15711-71-94 Case, Starter |
682-15711-71-94 |
US $124.07 |
||
| replacement | |||||
|
02
|
02
682-15711-71-00 Case, starter |
682-15711-71-00 |
from US $89.21 |
||
|
03
|
03
648-15773-00-00 Stay 3 |
648-15773-00-00 |
from US $3.54 |
||
|
04
|
04
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
05
|
05
90510-08M04-00 Spring, Spiral |
90510-08M04-00 |
from US $35.56 |
||
|
06
|
06
677-15714-00-94 Drum, Sheave |
677-15714-00-94 |
from US $70.78 |
||
|
07
|
07
91690-40020-00 Pin, Spring |
91690-40020-00 |
from US $3.12 |
||
|
08
|
08
677-15717-01-00 Shaft, Starter |
677-15717-01-00 |
from US $30.04 |
||
|
09
|
09
90201-06060-00 Washer, Plate |
90201-06060-00 |
from US $1.56 |
||
| replacements | |||||
|
09
|
09
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
09
|
09
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
|
10
|
10
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
11
|
11
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
12
|
12
677-15705-02-00 Spring, Drive Pawl |
677-15705-02-00 |
from US $9.78 |
||
|
13
|
13
677-15741-01-00 Pawl, Drive |
677-15741-01-00 |
from US $9.35 |
||
|
14
|
14
93430-06M02-00 Circlip |
93430-06M02-00 |
from US $1.70 |
||
|
16
|
16
689-15755-01-00 Handle, Starter |
689-15755-01-00 |
US $10.63 |
||
| replacement | |||||
|
16
|
16
689-15755-02-00 HANDLE STARTER |
689-15755-02-00 |
from US $6.06 |
||
|
17
|
17
6F5-15779-02-00 Cover |
6F5-15779-02-00 |
from US $2.36 |
||
|
18
|
18
6E7-15758-00-94
Guide, Rope
|
6E7-15758-00-94 |
— | ||
|
19
|
19
6E7-15761-00-00
Seal, Rubber 1
|
6E7-15761-00-00 |
— | ||
|
20
|
20
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
20
|
20
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
20
|
20
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
689-15789-00-00 Damper |
689-15789-00-00 |
from US $5.95 |
||
|
23
|
23
973-95060-35-00
Bolt, Hexagon
|
973-95060-35-00 |
— | ||
| replacement | |||||
|
23
|
23
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
25
|
25
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
27
|
27
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
27
|
27
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
27
|
27
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
28
|
28
6E7-15771-01-94
Stay 1
|
6E7-15771-01-94 |
— | ||
|
29
|
29
6E7-15771-80-94
Stay 1
|
6E7-15771-80-94 |
— | ||
|
30
|
30
97313-06018-00 Bolt, Hex |
97313-06018-00 |
from US $1.62 |
||
| replacement | |||||
|
30
|
30
97013-06018-00 Bolt |
97013-06018-00 |
from US $1.57 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
32
|
32
656-15748-00-00 Plunger, Starter Stop |
656-15748-00-00 |
from US $11.33 |
||
|
33
|
33
90501-10227-00 Spring, Compression |
90501-10227-00 |
from US $2.55 |
||
|
34
|
34
682-15770-00-00
Cable Comp., Starter Stop
|
682-15770-00-00 |
— | ||
|
35
|
35
682-15746-00-00 Arm |
682-15746-00-00 |
US $6.46 |
||
|
36
|
36
90109-06M04-00 Bolt |
90109-06M04-00 |
US $4.11 |
||
| replacement | |||||
|
36
|
36
90109-06MA1-00 Bolt |
90109-06MA1-00 |
from US $4.11 |
||
|
37
|
37
682-15747-00-00
Link
|
682-15747-00-00 |
— | ||
