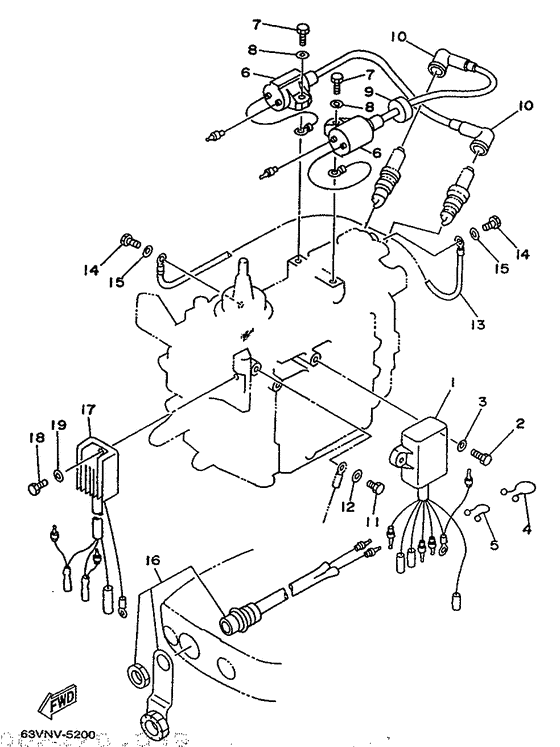

Electrical 1 Diagram Yamaha 9.9 MHS/L
- Year
- 1995
- Model
- 9.9F
- Model code
- 63V
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 9.9
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
63V-85540-00-00 C.d.i. Unit Assembly |
63V-85540-00-00 |
US $339.87 |
||
| replacements | |||||
|
01
|
01
63V-85540-02-00 C.d.i. Unit Assy |
63V-85540-02-00 |
US $339.87 |
||
|
01
|
01
63V-85540-03-00 CDI UNIT ASSY |
63V-85540-03-00 |
from US $251.10 |
||
|
02
|
02
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
02
|
02
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
04
|
04
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
|
05
|
05
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
06
|
06
63V-85570-00-00 Ignition Coil Assy |
63V-85570-00-00 |
US $95.61 |
||
| replacements | |||||
|
06
|
06
65E-85570-00-00 Ignition Coil Assy |
65E-85570-00-00 |
US $160.27 |
||
|
06
|
06
63V-85570-01-00 Ignition Coil Assy |
63V-85570-01-00 |
US $95.61 |
||
|
06
|
06
65E-85570-01-00
IGNITION COIL ASSY
|
65E-85570-01-00 |
— | ||
|
06
|
06
65E-85570-02-00 Shaft,Throttle Con |
65E-85570-02-00 |
from US $129.51 |
||
|
06
|
06
63V-85570-10-00 IGNITION COIL ASSY |
63V-85570-10-00 |
from US $100.37 |
||
|
07
|
07
97095-06018-00 Bolt |
97095-06018-00 |
from US $4.11 |
||
| replacement | |||||
|
07
|
07
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
09
|
09
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
10
|
10
6E3-82370-20-00
Plug Cap Assy
|
6E3-82370-20-00 |
— | ||
| replacement | |||||
|
10
|
10
6E3-82370-21-00 Plug Cap Assy |
6E3-82370-21-00 |
from US $15.53 |
||
|
11
|
11
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
11
|
11
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
13
|
13
662-82519-00-00 Wire, Earth Lead |
662-82519-00-00 |
from US $7.76 |
||
|
14
|
14
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
14
|
14
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
16
|
16
682-84381-00-00 2P ConcentAp |
682-84381-00-00 |
from US $45.77 |
||
|
17
|
17
6J8-81960-00-00 Rectifier & Regulator AssyAp |
6J8-81960-00-00 |
from US $120.97 |
||
|
18
|
18
97095-06016-00 BoltAp |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep RecessAp |
97D95-06016-00 |
from US $1.52 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646)Ap |
929-90066-00-00 |
from US $1.39 |
||
