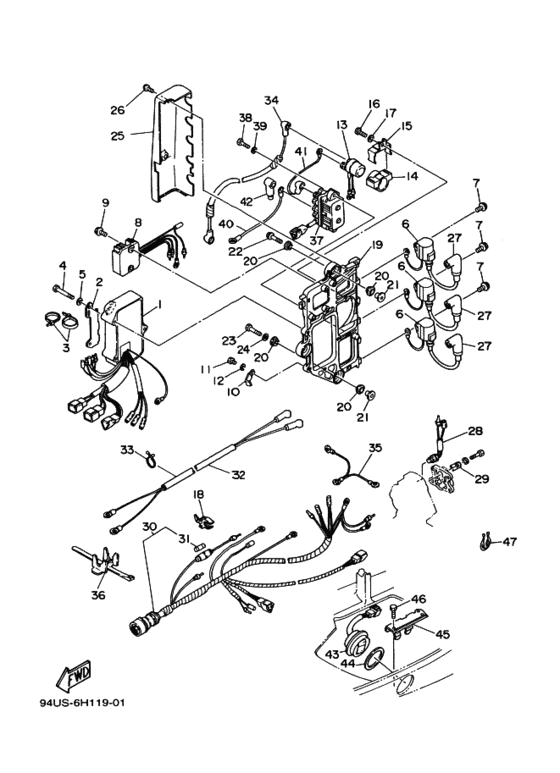

Electrical 1 Diagram Yamaha 90 ETOL/XL
- Year
- 1995
- Model
- 90A
- Model code
- 6H1
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H0-85540-02-00
Cdi Unit Assembly
．．．ＣＤＩユニツトアセンブリ; |
6H0-85540-02-00 |
— | ||
| replacement | |||||
|
1
|
1
6H0-85540-07-00 C.d.i. Unit Assy．．．ＣＤＩユニツトアセンブリ; |
6H0-85540-07-00 |
from US $975.48 |
||
|
2
|
2
6H1-85542-10-00 Bracket |
6H1-85542-10-00 |
from US $18.70 |
||
|
3
|
3
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
3
|
3
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
4
|
4
973-95060-50-00
Bolt
|
973-95060-50-00 |
— | ||
| replacement | |||||
|
4
|
4
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $3.26 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
6
|
6
6H2-85570-00-00 Ignition Coil Assemblyイグニツシヨンコイルアセンブリ; |
6H2-85570-00-00 |
US $102.24 |
||
| replacement | |||||
|
6
|
6
697-85570-00-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
697-85570-00-00 |
from US $95.60 |
||
|
7
|
7
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
7
|
7
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
7
|
7
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
8
|
8
6H0-81960-00-00 Rectifier & Regulator Assemblyレクチフアイヤアンドレギユレータアセンブリ; |
6H0-81960-00-00 |
from US $122.69 |
||
|
9
|
9
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
9
|
9
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
9
|
9
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
10
|
10
90465-08M23-00 Clamp |
90465-08M23-00 |
from US $3.54 |
||
|
11
|
11
970-95060-10-00
Bolt
ボルト; |
970-95060-10-00 |
— | ||
| replacement | |||||
|
11
|
11
97085-06010-00 Boltボルト; |
97085-06010-00 |
from US $1.28 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
6G1-81941-10-00 Starter Relay Assyスタータリレーアセンブリ; |
6G1-81941-10-00 |
from US $57.24 |
||
|
14
|
14
6G1-81952-00-00 Holder, Relayホルダー， リレー; |
6G1-81952-00-00 |
US $7.93 |
||
|
15
|
15
6E9-81945-70-00 Plate, Switch Fittingプレート，スイツチフイツテイング; |
6E9-81945-70-00 |
from US $15.58 |
||
|
16
|
16
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
6G5-82152-00-00 Holder, Fuseホルダ，フユーズ; |
6G5-82152-00-00 |
from US $2.36 |
||
|
19
|
19
6H1-85542-00-94 Bracketブラケツト; |
6H1-85542-00-94 |
US $58.86 |
||
| replacement | |||||
|
19
|
19
6H1-85542-00-00 Bracketブラケツト; |
6H1-85542-00-00 |
from US $58.86 |
||
|
20
|
20
90480-09M25-00 Grommet |
90480-09M25-00 |
from US $4.11 |
||
|
21
|
21
90387-06M03-00 Collarカラー; |
90387-06M03-00 |
from US $5.81 |
||
|
22
|
22
90119-06M75-00 Bolt,with Washer |
90119-06M75-00 |
US $1.21 |
||
| replacements | |||||
|
22
|
22
90119-06M56-00 Bolt, With Washer |
90119-06M56-00 |
US $1.21 |
||
|
22
|
22
90119-06293-00 Bolt, With Washer |
90119-06293-00 |
from US $1.21 |
||
|
23
|
23
90109-06M39-00 Bolt |
90109-06M39-00 |
from US $2.09 |
||
|
24
|
24
90201-06M31-00 Washer, Plateワツシヤ，プレート; |
90201-06M31-00 |
from US $1.81 |
||
|
25
|
25
6H1-81916-00-00 Cover, Terminalカバー，ターミナル; |
6H1-81916-00-00 |
from US $13.82 |
||
|
26
|
26
90159-06M11-00 Screw, With Washer |
90159-06M11-00 |
from US $1.98 |
||
|
27
|
27
6E3-82370-20-00
Plug Cap Assy
プラグキヤツプアセンブリ; |
6E3-82370-20-00 |
— | ||
| replacement | |||||
|
27
|
27
6E3-82370-21-00 Plug Cap Assyプラグキヤツプアセンブリ; |
6E3-82370-21-00 |
from US $15.53 |
||
|
28
|
28
688-82560-10-00 Thermo Switch Assyサーモスイツチアセンブリ; |
688-82560-10-00 |
from US $50.50 |
||
|
29
|
29
688-82588-01-00 Plateプレート; |
688-82588-01-00 |
from US $3.97 |
||
|
30
|
30
6H0-82590-12-00 Wire Harness Assyワイヤハーネスアセンブリ; ＵＲ ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
6H0-82590-12-00 |
US $197.57 |
||
|
30
|
30
6H0-82590-30-00
Wire Harness Assy
ワイヤハーネスアセンブリ; ＵＲ ９０ＡＥＯ／９０ＡＥＭＯ |
6H0-82590-30-00 |
— | ||
|
31
|
31
682-82151-00-00 Fuse．フユーズ ; ２０Ａ |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
31
|
31
682-82151-01-00 Fuse (20A)．フユーズ ; ２０Ａ |
682-82151-01-00 |
US $1.81 |
||
|
31
|
31
682-82151-02-00 FUSE．フユーズ ; ２０Ａ |
682-82151-02-00 |
from US $1.81 |
||
|
32
|
32
6H0-82105-01-00 Battery Cableワイヤハーネス; |
6H0-82105-01-00 |
US $229.35 |
||
| replacements | |||||
|
32
|
32
6H0-82105-J2-00 Battery Cableワイヤハーネス; |
6H0-82105-J2-00 |
US $127.65 |
||
|
32
|
32
6H0-82105-J3-00 Battery Cableワイヤハーネス; |
6H0-82105-J3-00 |
US $322.99 |
||
|
33
|
33
90464-23M22-00 Clamp |
90464-23M22-00 |
from US $1.70 |
||
| replacement | |||||
|
33
|
33
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
34
|
34
6H0-82117-00-00 Wire, Leadワイヤ，リード; |
6H0-82117-00-00 |
US $25.22 |
||
|
35
|
35
697-82519-00-00 Wire, Earth Leadワイヤ，アースリード; |
697-82519-00-00 |
from US $12.89 |
||
|
36
|
36
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $6.52 |
||
|
37
|
37
61A-81950-00-00 Relay Assyリレーアセンブリ; ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
61A-81950-00-00 |
US $243.16 |
||
| replacement | |||||
|
37
|
37
61A-81950-01-00 Relay Assyリレーアセンブリ; ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
61A-81950-01-00 |
from US $243.16 |
||
|
38
|
38
973-95060-25-00
Bolt (682)
８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
973-95060-25-00 |
— | ||
| replacement | |||||
|
38
|
38
90101-06M27-00 Bolt８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
90101-06M27-00 |
from US $1.52 |
||
|
39
|
39
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
929-90066-00-00 |
from US $1.18 |
||
|
40
|
40
6H0-81949-10-00 Wire, Leadワイヤ，リード; ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
6H0-81949-10-00 |
US $18.42 |
||
| replacements | |||||
|
40
|
40
6H2-81949-11-00 Wire, Leadワイヤ，リード; ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
6H2-81949-11-00 |
US $18.42 |
||
|
40
|
40
6H2-81949-12-00 Wire, Leadワイヤ，リード; ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
6H2-81949-12-00 |
US $22.37 |
||
|
41
|
41
6H5-81949-00-00 Wire, Leadワイヤ，リード; ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
6H5-81949-00-00 |
US $20.54 |
||
|
42
|
42
682-82119-01-00 Cover, Lead Wireカバー，リードワイヤ; ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
682-82119-01-00 |
US $5.53 |
||
| replacement | |||||
|
42
|
42
6G5-82119-10-00 Cover, Lead Wireカバー，リードワイヤ; ８０ＡＥ（Ｍ）ＴＯ／９０ＡＥ（Ｍ）ＴＯ |
6G5-82119-10-00 |
from US $5.53 |
||
|
43
|
43
6H1-82563-10-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; ８０ＡＥＴＯ／９０ＡＥＴＯ |
6H1-82563-10-00 |
US $95.47 |
||
| replacements | |||||
|
43
|
43
6H1-82563-11-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; ８０ＡＥＴＯ／９０ＡＥＴＯ |
6H1-82563-11-00 |
from US $95.47 |
||
|
43
|
43
6R3-82563-01-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; ８０ＡＥＴＯ／９０ＡＥＴＯ |
6R3-82563-01-00 |
from US $78.10 |
||
|
44
|
44
6E5-82587-00-00 Gasket８０ＡＥＴＯ／９０ＡＥＴＯ |
6E5-82587-00-00 |
US $5.58 |
||
|
45
|
45
6H1-83614-00-00 Bracket８０ＡＥＴＯ／９０ＡＥＴＯ |
6H1-83614-00-00 |
from US $11.33 |
||
|
46
|
46
973-95060-16-00
Bolt, Hex
８０ＡＥＴＯ／９０ＡＥＴＯ |
973-95060-16-00 |
— | ||
| replacements | |||||
|
46
|
46
97095-06016-00 Bolt８０ＡＥＴＯ／９０ＡＥＴＯ |
97095-06016-00 |
US $1.52 |
||
|
46
|
46
97D95-06016-00 Bolt, Hexagon Deep Recess８０ＡＥＴＯ／９０ＡＥＴＯ |
97D95-06016-00 |
from US $1.52 |
||
|
47
|
47
90464-18M14-00 Clamp８０ＡＥＴＯ／９０ＡＥＴＯ |
90464-18M14-00 |
from US $1.84 |
||
