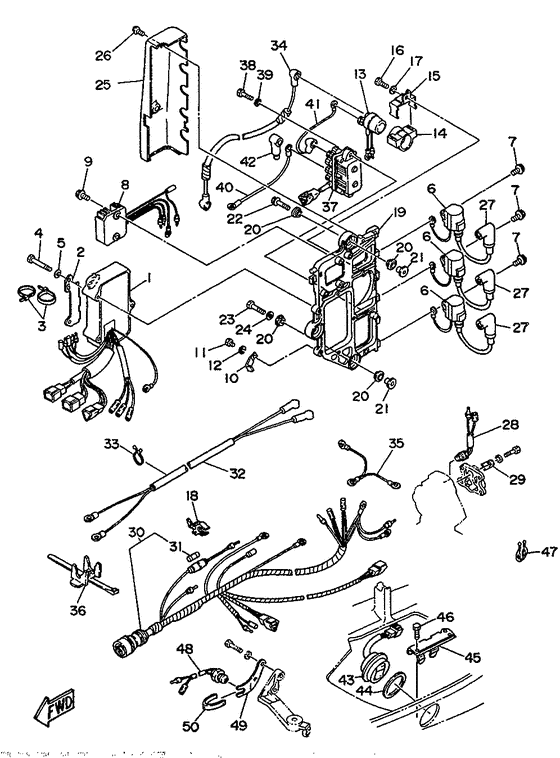

Electrical 1 Diagram Yamaha 90 ETOL/XL
- Year
- 1994
- Model
- 90A
- Model code
- 6H1
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H0-85540-03-00
C.d.i. Unit Assembly
|
6H0-85540-03-00 |
— | ||
| replacement | |||||
|
01
|
01
6H0-85540-07-00 C.d.i. Unit Assy |
6H0-85540-07-00 |
from US $975.48 |
||
|
02
|
02
6H1-85542-10-00 Bracket |
6H1-85542-10-00 |
from US $18.70 |
||
|
03
|
03
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
03
|
03
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
04
|
04
973-95060-50-00
Bolt
|
973-95060-50-00 |
— | ||
| replacement | |||||
|
04
|
04
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $3.26 |
||
|
05
|
05
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
06
|
06
6H2-85570-00-00 Ignition Coil Assembly |
6H2-85570-00-00 |
US $102.24 |
||
| replacement | |||||
|
06
|
06
697-85570-00-00 Ignition Coil Assy |
697-85570-00-00 |
from US $95.60 |
||
|
07
|
07
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
07
|
07
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
07
|
07
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
08
|
08
6H0-81960-00-00 Rectifier & Regulator Assembly |
6H0-81960-00-00 |
from US $122.69 |
||
|
09
|
09
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
09
|
09
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
09
|
09
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
10
|
10
90465-08M23-00 Clamp |
90465-08M23-00 |
from US $3.54 |
||
|
11
|
11
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
11
|
11
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
14
|
14
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
15
|
15
6E9-81945-70-00 Plate, Switch Fitting |
6E9-81945-70-00 |
from US $15.58 |
||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2.36 |
||
|
19
|
19
6H1-85542-00-94 Bracket |
6H1-85542-00-94 |
US $58.86 |
||
| replacement | |||||
|
19
|
19
6H1-85542-00-00 Bracket |
6H1-85542-00-00 |
from US $58.86 |
||
|
20
|
20
90480-09M25-00 Grommet |
90480-09M25-00 |
from US $4.11 |
||
|
21
|
21
90387-06M03-00 Collar |
90387-06M03-00 |
from US $5.81 |
||
|
22
|
22
90119-09M75-00
Bolt, With Washer
|
90119-09M75-00 |
— | ||
|
23
|
23
90109-06M39-00 Bolt |
90109-06M39-00 |
from US $2.09 |
||
|
24
|
24
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
25
|
25
6H1-81916-00-00 Cover, Terminal |
6H1-81916-00-00 |
from US $13.82 |
||
|
26
|
26
90159-06M11-00 Screw, With Washer |
90159-06M11-00 |
from US $1.98 |
||
|
27
|
27
6E3-82370-20-00
Plug Cap Assy
|
6E3-82370-20-00 |
— | ||
| replacement | |||||
|
27
|
27
6E3-82370-21-00 Plug Cap Assy |
6E3-82370-21-00 |
from US $15.53 |
||
|
28
|
28
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $50.50 |
||
|
29
|
29
688-82588-01-00 Plate |
688-82588-01-00 |
from US $3.97 |
||
|
30
|
30
6H0-82590-12-00 Wire Harness AssyUr 80aeto/90aeto |
6H0-82590-12-00 |
US $197.57 |
||
|
30
|
30
6H0-82590-30-00
Wire Harness Assy
Ur 80ae/90aeo |
6H0-82590-30-00 |
— | ||
|
31
|
31
682-82151-00-00 Fuse |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
31
|
31
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.81 |
||
|
31
|
31
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.81 |
||
|
32
|
32
6H0-82105-01-00 Battery Cable |
6H0-82105-01-00 |
US $229.35 |
||
| replacements | |||||
|
32
|
32
6H0-82105-J2-00 Battery Cable |
6H0-82105-J2-00 |
US $127.65 |
||
|
32
|
32
6H0-82105-J3-00 Battery Cable |
6H0-82105-J3-00 |
US $322.99 |
||
|
33
|
33
90464-23M22-00 Clamp |
90464-23M22-00 |
from US $1.70 |
||
| replacement | |||||
|
33
|
33
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
34
|
34
6H0-82117-00-00 Wire, Lead |
6H0-82117-00-00 |
US $25.22 |
||
|
35
|
35
697-82519-00-00 Wire, Earth Lead |
697-82519-00-00 |
from US $12.89 |
||
|
36
|
36
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $6.52 |
||
|
37
|
37
61A-81950-00-00 Relay Assy80aeto/90aeto |
61A-81950-00-00 |
US $243.16 |
||
| replacement | |||||
|
37
|
37
61A-81950-01-00 Relay Assy80aeto/90aeto |
61A-81950-01-00 |
from US $243.16 |
||
|
38
|
38
970-95060-25-00
Bolt
80aeto/90aeto |
970-95060-25-00 |
— | ||
| replacement | |||||
|
38
|
38
90101-06M27-00 Bolt80aeto/90aeto |
90101-06M27-00 |
from US $1.52 |
||
|
39
|
39
929-90066-00-00 Washer, Plain (646)80aeto/90aeto |
929-90066-00-00 |
from US $1.18 |
||
|
40
|
40
6H0-81949-10-00 Wire, Lead80aeto/90aeto |
6H0-81949-10-00 |
US $18.42 |
||
| replacements | |||||
|
40
|
40
6H2-81949-11-00 Wire, Lead80aeto/90aeto |
6H2-81949-11-00 |
US $18.42 |
||
|
40
|
40
6H2-81949-12-00 Wire, Lead80aeto/90aeto |
6H2-81949-12-00 |
US $22.37 |
||
|
41
|
41
6H5-81949-00-00 Wire, Lead80aeto/90aeto |
6H5-81949-00-00 |
US $20.54 |
||
|
42
|
42
682-82119-01-00 Cover, Lead Wire80aeto/90aeto |
682-82119-01-00 |
US $5.53 |
||
| replacement | |||||
|
42
|
42
6G5-82119-10-00 Cover, Lead Wire80aeto/90aeto |
6G5-82119-10-00 |
from US $5.53 |
||
|
43
|
43
6H1-82563-10-00 Trim & Tilt Switch Assy80aeto/90aeto |
6H1-82563-10-00 |
US $95.47 |
||
| replacements | |||||
|
43
|
43
6H1-82563-11-00 Trim & Tilt Switch Assy80aeto/90aeto |
6H1-82563-11-00 |
from US $95.47 |
||
|
43
|
43
6R3-82563-01-00 Trim & Tilt Switch Assy80aeto/90aeto |
6R3-82563-01-00 |
from US $78.10 |
||
|
44
|
44
6E5-82587-00-00 Gasket80aeto/90aeto |
6E5-82587-00-00 |
US $5.58 |
||
|
45
|
45
6H1-83614-00-00 Bracket80aeto/90aeto |
6H1-83614-00-00 |
from US $11.33 |
||
|
46
|
46
97095-06016-00 Bolt80aeto/90aeto |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
46
|
46
97D95-06016-00 Bolt, Hexagon Deep Recess80aeto/90aeto |
97D95-06016-00 |
from US $1.39 |
||
|
47
|
47
90464-18M14-00 Clamp80aeto/90aeto |
90464-18M14-00 |
from US $1.84 |
||
|
48
|
48
688-82540-11-00 Neutral Switch Ass'yAp |
688-82540-11-00 |
US $39.24 |
||
| replacement | |||||
|
48
|
48
688-82540-12-00 Neutral Switch AssyAp |
688-82540-12-00 |
from US $39.24 |
||
|
49
|
49
663-82554-01-00 Stay, Neutral SwitchAp |
663-82554-01-00 |
from US $10.63 |
||
|
50
|
50
663-82555-01-00 Damper, Main Switch 1Ap |
663-82555-01-00 |
from US $12.89 |
||
