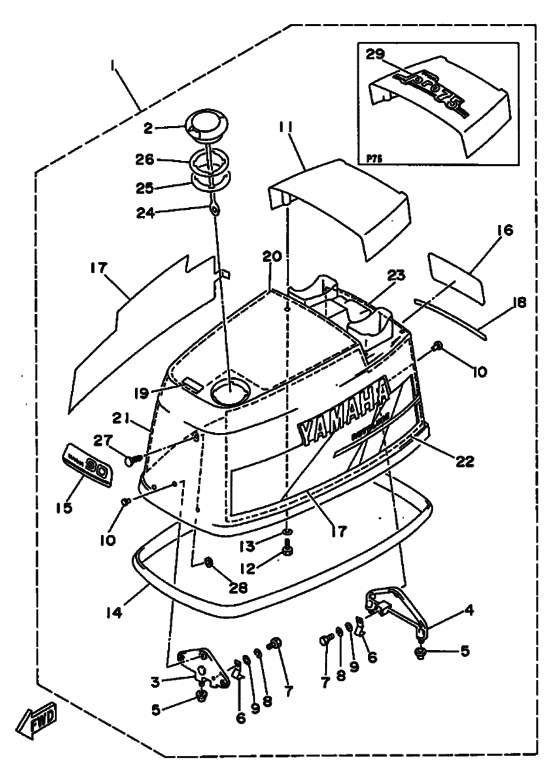

Top cowling Diagram Yamaha 90 ETOL/XL
- Year
- 1997
- Model
- 90A
- Model code
- 6H1
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 90
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H1-42610-A4-4D
Top Cowling Assy
|
6H1-42610-A4-4D |
— | ||
|
1
|
1
6H0-42610-60-4D
Top Cowling Assy
UR P75 |
6H0-42610-60-4D |
— | ||
|
2
|
2
63D-2177H-00-00 Disk Cap 2 |
63D-2177H-00-00 |
from US $17.28 |
||
|
3
|
3
6H1-42647-00-94 Holder, Clamp Band |
6H1-42647-00-94 |
US $25.08 |
||
| replacement | |||||
|
3
|
3
6H1-42647-00-00 Holder, Clamp Band |
6H1-42647-00-00 |
from US $21.76 |
||
|
4
|
4
6H1-42649-00-94 Holder, Clamp Band |
6H1-42649-00-94 |
US $52.92 |
||
| replacement | |||||
|
4
|
4
6H1-42649-00-00 Holder, Clamp Band |
6H1-42649-00-00 |
from US $28.15 |
||
|
5
|
5
663-42662-00-00 Damper |
663-42662-00-00 |
US $8.93 |
||
|
6
|
6
688-42652-10-00 Hook 2 |
688-42652-10-00 |
from US $8.76 |
||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
90266-06M02-00 Rivet (697) |
90266-06M02-00 |
from US $2.24 |
||
|
11
|
11
6H1-42613-01-4D Molding, Air Duct |
6H1-42613-01-4D |
US $165.79 |
||
| replacement | |||||
|
11
|
11
6H1-42613-01-8D Molding, Air Duct |
6H1-42613-01-8D |
from US $153.09 |
||
|
12
|
12
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
688-42615-00-00 Seal |
688-42615-00-00 |
US $52.78 |
||
|
15
|
15
6H1-42677-40-00
Graphic, Front
|
6H1-42677-40-00 |
— | ||
|
15
|
15
6H0-42677-60-00
Graphic, Front
UR P75 |
6H0-42677-60-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
UR P75 |
999-99999-99-00 |
— | ||
|
16
|
16
6H1-42678-40-00
Graphic, Rear
|
6H1-42678-40-00 |
— | ||
|
16
|
16
6H0-42678-N0-00
Graphic, Rear
UR P75 |
6H0-42678-N0-00 |
— | ||
|
17
|
17
6H1-W0070-A2-00
Graphic Set
|
6H1-W0070-A2-00 |
— | ||
|
17
|
17
6H0-W0070-N0-00
Graphic Set
UR P75 |
6H0-W0070-N0-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
UR P75 |
999-99999-99-00 |
— | ||
|
18
|
18
6H1-4267A-A0-00
Graphic, Rear 2
|
6H1-4267A-A0-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
6H0-4267A-N0-00
Graphic, Rear 2
UR P75 |
6H0-4267A-N0-00 |
— | ||
|
19
|
19
6H1-13436-41-00
Mark
|
6H1-13436-41-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
689-W4266-20-00
Damper, Form
|
689-W4266-20-00 |
— | ||
|
21
|
21
689-W4266-40-00 Damper, Form |
689-W4266-40-00 |
from US $50.01 |
||
|
22
|
22
689-W4266-40-00 Damper, Form |
689-W4266-40-00 |
from US $50.01 |
||
|
23
|
23
689-W4266-10-00
Damper, Form
|
689-W4266-10-00 |
— | ||
|
24
|
24
6H1-42694-00-00 Band |
6H1-42694-00-00 |
from US $18.42 |
||
|
25
|
25
6H3-21732-00-00 Seal 1 |
6H3-21732-00-00 |
from US $12.47 |
||
|
26
|
26
6H3-21735-00-00 Seal 2 |
6H3-21735-00-00 |
US $12.47 |
||
|
27
|
27
90338-05M12-00 Plug |
90338-05M12-00 |
from US $1.94 |
||
|
28
|
28
90183-05M06-00 Nut, Spring |
90183-05M06-00 |
from US $1.98 |
||
|
29
|
29
6H0-42683-N0-00
Mark, Cowling
|
6H0-42683-N0-00 |
— | ||
