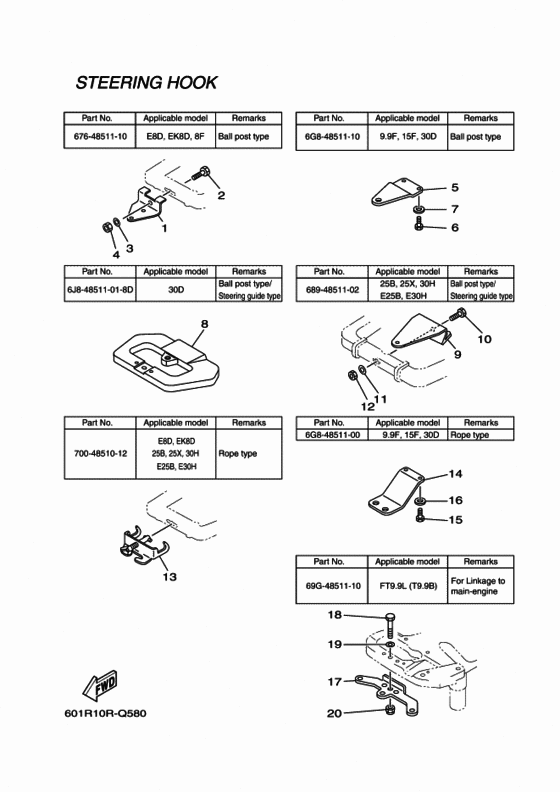

Steering hook 3 Diagram Yamaha Accessories
- Year
- 2016
- Model
- RIGGING REMOCON
- Model code
- 601R
- Year
- 2016
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
676-48511-10-00 Hook, SteeringBALL POST TYPE |
676-48511-10-00 |
from US $22.18 |
||
|
2
|
2
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.14 |
||
| replacement | |||||
|
2
|
2
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.40 |
||
|
3
|
3
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
4
|
4
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
5
|
5
6G8-48511-10-00 Hook, SteeringBALL POST TYPE |
6G8-48511-10-00 |
from US $13.03 |
||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
7
|
7
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
6J8-48511-01-8D Hook, Steering |
6J8-48511-01-8D |
from US $74.72 |
||
|
9
|
9
689-48511-02-00 Hook, Steering |
689-48511-02-00 |
from US $46.58 |
||
|
10
|
10
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.14 |
||
| replacement | |||||
|
10
|
10
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.40 |
||
|
11
|
11
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
12
|
12
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
13
|
13
700-48510-12-00 Steering Hook AssyROPE TYPE |
700-48510-12-00 |
from US $43.38 |
||
|
14
|
14
6G8-48511-00-00 Hook, SteeringROPE TYPE |
6G8-48511-00-00 |
from US $19.55 |
||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
16
|
16
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
69G-48511-10-00 Hook, Steering |
69G-48511-10-00 |
from US $84.83 |
||
|
18
|
18
970-75080-35-00
Bolt
|
970-75080-35-00 |
— | ||
| replacements | |||||
|
18
|
18
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
18
|
18
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.40 |
||
|
19
|
19
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
20
|
20
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
20
|
20
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.40 |
||
