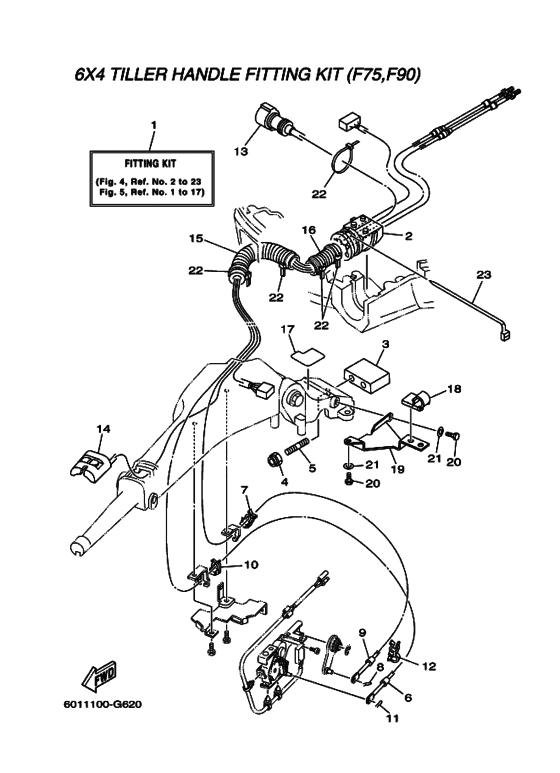

Fitting kit 2 Diagram Yamaha Accessories
- Year
- 2011
- Model
- RIGGING STEERING
- Model code
- 601S
- Year
- 2011
- Sales region
- Finland (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6X4-42102-10-00
Fitting Kit
LM |
6X4-42102-10-00 |
— | ||
| replacements | |||||
|
1
|
1
6X4-42102-11-00
Fitting Kit
LM |
6X4-42102-11-00 |
— | ||
|
1
|
1
6X4-42102-A0-00
F80/100 Fitting Kit
LM |
6X4-42102-A0-00 |
— | ||
|
1
|
1
6X4-42102-14-00 F75/F90 Tiller Fitting KitLM |
6X4-42102-14-00 |
US $571.05 |
||
|
2
|
2
68V-42725-10-00 Grommet |
68V-42725-10-00 |
US $19.55 |
||
|
3
|
3
6X4-42121-00-8D Bracket |
6X4-42121-00-8D |
from US $81.79 |
||
|
4
|
4
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
4
|
4
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
5
|
5
90116-10031-00 Bolt, Stud |
90116-10031-00 |
from US $25.64 |
||
|
6
|
6
67G-48321-20-00 Cable |
67G-48321-20-00 |
from US $93.95 |
||
|
7
|
7
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
8
|
8
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
9
|
9
67G-26301-10-00 Throttle Cable Assy |
67G-26301-10-00 |
from US $115.78 |
||
|
10
|
10
63D-48538-00-00 Clamp, Cable 1 |
63D-48538-00-00 |
from US $4.08 |
||
|
11
|
11
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
12
|
12
90464-09M42-00 Clamp |
90464-09M42-00 |
from US $3.68 |
||
|
13
|
13
6X4-82586-20-00 Ext., Wire Harness (L:1.25M) |
6X4-82586-20-00 |
US $295.66 |
||
|
14
|
14
6X4-81860-00-00 Switch Assy |
6X4-81860-00-00 |
from US $149.21 |
||
|
15
|
15
90447-22007-00 Tube |
90447-22007-00 |
from US $5.81 |
||
|
16
|
16
6K3-83557-00-00
Tube
|
6K3-83557-00-00 |
— | ||
| replacement | |||||
|
16
|
16
6G1-83557-00-00 Tube |
6G1-83557-00-00 |
from US $4.11 |
||
|
17
|
17
6X4-42735-00-00 Protector |
6X4-42735-00-00 |
from US $47.25 |
||
|
18
|
18
63D-24367-00-00 Clamp, Fuel Pipe 2 |
63D-24367-00-00 |
from US $6.23 |
||
|
19
|
19
6X4-24364-00-00 Stay |
6X4-24364-00-00 |
from US $48.22 |
||
|
20
|
20
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
20
|
20
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
21
|
21
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
904-6513M-24-00
Band, Switch Cord
|
904-6513M-24-00 |
— | ||
| replacement | |||||
|
22
|
22
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
23
|
23
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
