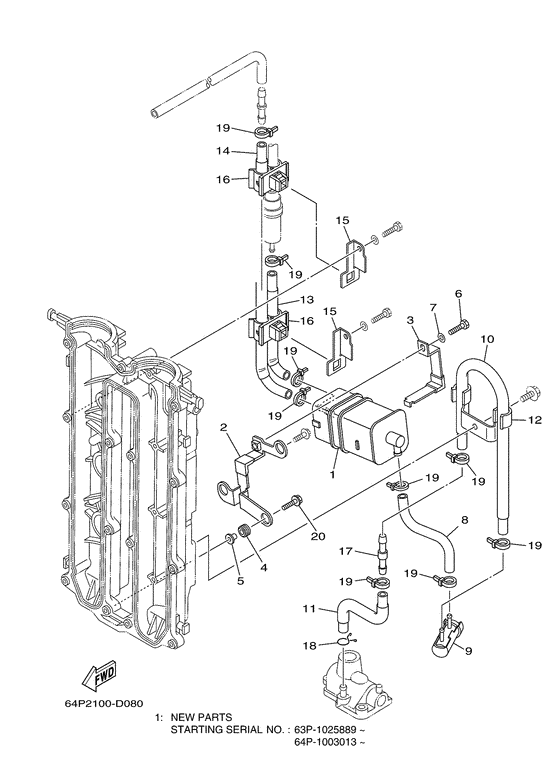

Intake 2 Diagram Yamaha F150 ETL/X
- Year
- 2005
- Model
- F150A
- Model code
- 63P
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 150
- Sales region
- Europe (General) (060)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6P2-24170-00-00 Canister AssyNew parts *1 |
6P2-24170-00-00 |
from US $83.72 |
||
|
02
|
02
63P-2134X-00-00 Bracket, CanisterNew parts *1 |
63P-2134X-00-00 |
from US $35.42 |
||
|
03
|
03
63P-2419A-00-00 HolderNew parts *1 |
63P-2419A-00-00 |
US $14.45 |
||
| replacement | |||||
|
03
|
03
63P-2419A-01-00 HolderNew parts *1 |
63P-2419A-01-00 |
from US $14.45 |
||
|
04
|
04
90480-10M23-00 GrommetNew parts *1 |
90480-10M23-00 |
from US $4.68 |
||
|
05
|
05
90387-06M60-00 CollarNew parts *1 |
90387-06M60-00 |
from US $3.38 |
||
|
06
|
06
97095-06016-00 BoltNew parts *1 |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
06
|
06
97D95-06016-00 Bolt, Hexagon Deep RecessNew parts *1 |
97D95-06016-00 |
from US $1.28 |
||
|
07
|
07
929-95066-00-00
Washer, Plate
New parts *1 |
929-95066-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-90066-00-00 Washer, Plain (646)New parts *1 |
929-90066-00-00 |
from US $1.07 |
||
|
08
|
08
64P-24313-00-00 Pipe 3New parts *1 |
64P-24313-00-00 |
from US $9.35 |
||
|
09
|
09
69J-24502-00-00 Filter, FuelNew parts *1 |
69J-24502-00-00 |
from US $56.65 |
||
|
10
|
10
64P-24312-00-00 Pipe 2New parts *1 |
64P-24312-00-00 |
from US $26.78 |
||
|
11
|
11
64P-24311-00-00 Pipe, Fuel 1New parts *1 |
64P-24311-00-00 |
from US $15.44 |
||
|
12
|
12
63P-24367-00-00 Clamp, Fuel Pipe 2New parts *1 |
63P-24367-00-00 |
US $45.32 |
||
| replacement | |||||
|
12
|
12
63P-24367-01-00 Clamp, Fuel Pipe 2New parts *1 |
63P-24367-01-00 |
from US $45.32 |
||
|
13
|
13
64P-24315-00-00 Pipe 5New parts *1 |
64P-24315-00-00 |
from US $13.03 |
||
|
14
|
14
64P-24314-00-00 Pipe 4New parts *1 |
64P-24314-00-00 |
from US $24.23 |
||
|
15
|
15
63P-24364-00-00 StayNew parts *1 |
63P-24364-00-00 |
US $5.38 |
||
| replacement | |||||
|
15
|
15
63P-24364-01-00 StayNew parts *1 |
63P-24364-01-00 |
from US $5.38 |
||
|
16
|
16
90464-11012-00 ClampNew parts *1 |
90464-11012-00 |
from US $1.70 |
||
|
17
|
17
6E5-24379-00-00 Pipe, Joint 4New parts *1 |
6E5-24379-00-00 |
from US $4.53 |
||
|
18
|
18
90467-09M09-00 Clip(6K8)New parts *1 |
90467-09M09-00 |
from US $1.71 |
||
|
19
|
19
904-6511M-10-00
Clamp
New parts *1 |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
19
|
19
80L-26397-00-00 BandNew parts *1 |
80L-26397-00-00 |
from US $1.21 |
||
|
19
|
19
904-65100-98-00 ClampNew parts *1 |
904-65100-98-00 |
from US $1.35 |
||
|
20
|
20
90119-06135-00 Bolt, With WasherNew parts *1 |
90119-06135-00 |
from US $4.96 |
||
