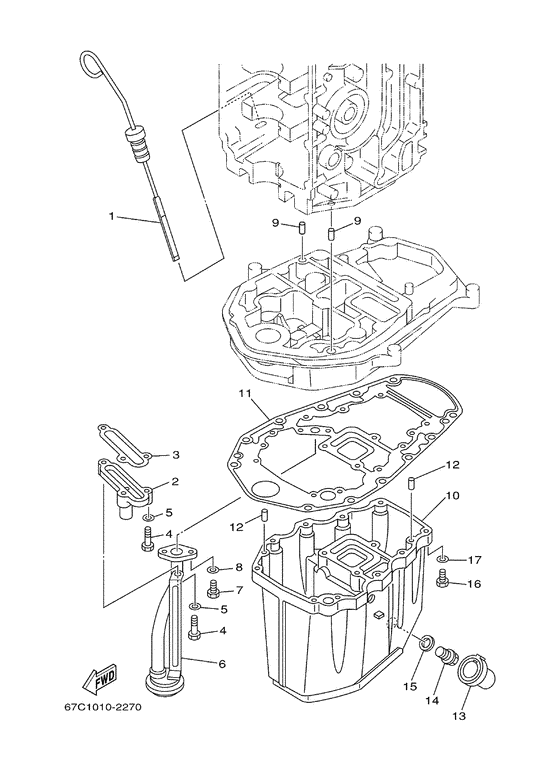

Oil pan Diagram Yamaha F30 M(E/W/H/D/T)S/L/X
- Year
- 2002
- Model
- F30A
- Model code
- 69H
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- Europe (General) (360)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67C-15362-00-00 Plug, Oil Level |
67C-15362-00-00 |
from US $15.58 |
||
|
02
|
02
62Y-11575-00-00 Relief Valve Assy |
62Y-11575-00-00 |
from US $54.30 |
||
|
03
|
03
62Y-13475-00-00 Gasket |
62Y-13475-00-00 |
from US $4.39 |
||
|
04
|
04
97013-06025-00 Bolt |
97013-06025-00 |
from US $1.48 |
||
|
05
|
05
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
05
|
05
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
06
|
06
62Y-13411-00-00 Strainer, Oil |
62Y-13411-00-00 |
from US $66.87 |
||
|
07
|
07
97013-06016-00 Bolt |
97013-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
07
|
07
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
07
|
07
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.28 |
||
|
07
|
07
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
08
|
08
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
09
|
09
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $1.66 |
||
|
10
|
10
62Y-15311-02-5B Oil Pan |
62Y-15311-02-5B |
US $251.45 |
||
| replacements | |||||
|
10
|
10
62Y-15311-02-CA Oil Pan |
62Y-15311-02-CA |
US $132.81 |
||
|
10
|
10
62Y-15311-03-CA Oil Pan |
62Y-15311-03-CA |
US $286.04 |
||
|
11
|
11
69W-15312-00-00 Gasket, Oil Pan |
69W-15312-00-00 |
US $30.32 |
||
| replacement | |||||
|
11
|
11
69W-15312-01-00 Gasket, Oil Pan |
69W-15312-01-00 |
from US $30.32 |
||
|
12
|
12
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
13
|
13
67C-15316-00-00 Damper 1L |
67C-15316-00-00 |
US $5.38 |
||
|
13
|
13
67C-15316-10-00 Damper 1Damper, engine mount 1 S |
67C-15316-10-00 |
US $5.53 |
||
|
14
|
14
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.09 |
||
|
15
|
15
904-3014M-09-00 Gasket |
904-3014M-09-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
90430-14228-00 Gasket(N261) |
90430-14228-00 |
from US $4.68 |
||
|
16
|
16
97075-06025-00 Bolt |
97075-06025-00 |
US $1.35 |
||
| replacement | |||||
|
16
|
16
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
17
|
17
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
