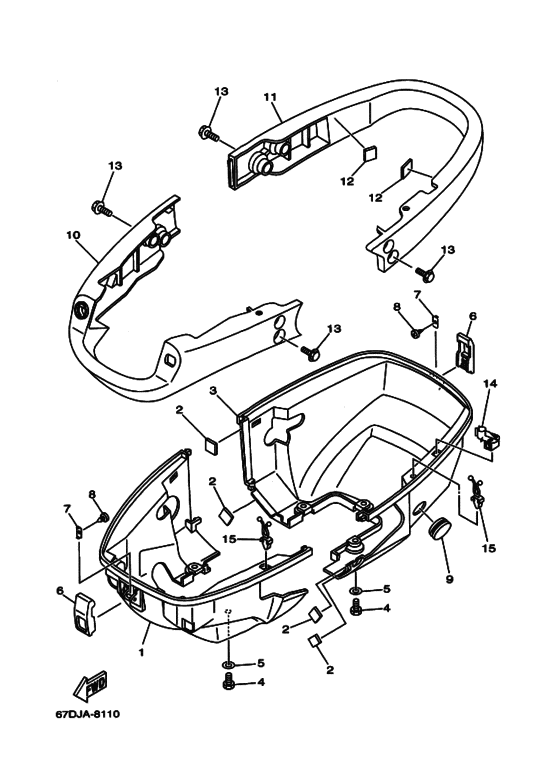

Bottom cowling assy Diagram Yamaha F4 MHS/L
- Year
- 1998
- Model
- F4A
- Model code
- 67D
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67D-42711-00-00
Cowling, Bottom 1
|
67D-42711-00-00 |
— | ||
|
2
|
2
67D-42662-00-00 Damper |
67D-42662-00-00 |
US $4 |
||
|
3
|
3
67D-42712-00-00
Cowling, Bottom 2
|
67D-42712-00-00 |
— | ||
|
4
|
4
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
|
5
|
5
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
6L5-42647-00-00 Holder, Clamp Bandホルダ，クランプバンド; |
6L5-42647-00-00 |
from US $11.05 |
||
|
7
|
7
6L5-42823-00-00 Plate, Stopプレート，ストツプ; |
6L5-42823-00-00 |
US $1.07 |
||
| replacement | |||||
|
7
|
7
6EG-G2823-00-00 Plate, Stopプレート，ストツプ; |
6EG-G2823-00-00 |
from US $1.07 |
||
|
8
|
8
90167-03M02-00 Screw, Tapping |
90167-03M02-00 |
from US $1.84 |
||
|
9
|
9
90480-22M72-00 Grommet |
90480-22M72-00 |
from US $5.67 |
||
|
10
|
10
67D-42731-00-00 Carrying Handle |
67D-42731-00-00 |
US $104.17 |
||
| replacement | |||||
|
10
|
10
68D-G2731-00-00 Carrying Handle |
68D-G2731-00-00 |
from US $104.17 |
||
|
11
|
11
67D-42735-00-00 Protector |
67D-42735-00-00 |
US $57.85 |
||
| replacement | |||||
|
11
|
11
68D-G2735-00-00 Protector |
68D-G2735-00-00 |
US $186.18 |
||
|
12
|
12
67D-42662-00-00 Damper |
67D-42662-00-00 |
US $4 |
||
|
13
|
13
90119-06M79-00 Bolt, With Washer |
90119-06M79-00 |
from US $4.12 |
||
| replacement | |||||
|
13
|
13
90119-06280-00 |
90119-06280-00 |
from US $2.14 |
||
|
14
|
14
90464-07M50-00
Clamp
|
90464-07M50-00 |
— | ||
|
15
|
15
90464-07078-00 Clamp |
90464-07078-00 |
from US $2.13 |
||
