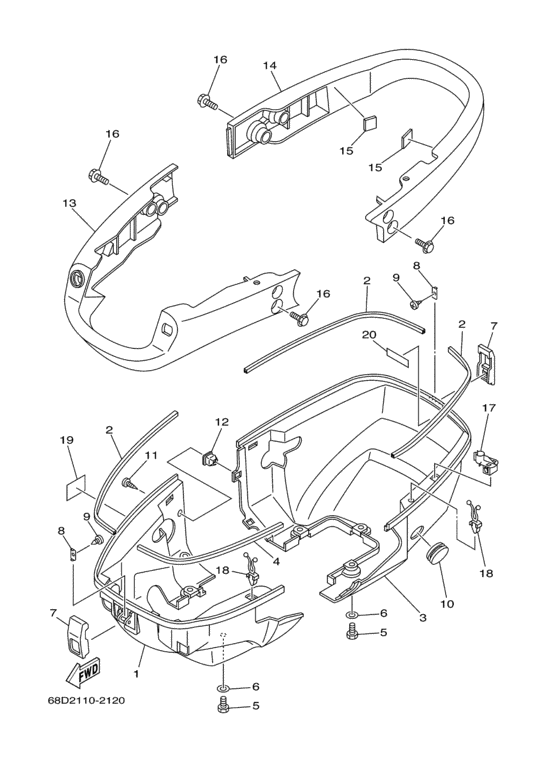

Bottom cowling Diagram Yamaha F4 MS/LH
- Year
- 2003
- Model
- F4
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68D-G2711-01-00 Cowling, Bottom 1 |
68D-G2711-01-00 |
from US $50.29 |
||
|
2
|
2
68D-G2628-00-00 Seal |
68D-G2628-00-00 |
from US $16.09 |
||
|
3
|
3
68D-G2712-01-00 Cowling, Bottom 2 |
68D-G2712-01-00 |
from US $50.43 |
||
|
4
|
4
68D-G2629-00-00 Seal |
68D-G2629-00-00 |
from US $15.39 |
||
|
5
|
5
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
6
|
6
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
7
|
7
6L5-42647-00-00 Holder, Clamp Band |
6L5-42647-00-00 |
from US $11.05 |
||
|
8
|
8
6L5-42823-00-00 Plate, Stop |
6L5-42823-00-00 |
US $1.07 |
||
| replacement | |||||
|
8
|
8
6EG-G2823-00-00 Plate, Stop |
6EG-G2823-00-00 |
from US $1.07 |
||
|
9
|
9
90167-03M02-00 Screw, Tapping |
90167-03M02-00 |
from US $1.84 |
||
|
10
|
10
90480-22M72-00 Grommet |
90480-22M72-00 |
from US $5.67 |
||
|
11
|
11
90161-05001-00 Screw, Tapping |
90161-05001-00 |
US $1.47 |
||
|
12
|
12
90480-10004-00 Grommet |
90480-10004-00 |
US $1.77 |
||
|
13
|
13
68D-G2731-00-00 Carrying Handle |
68D-G2731-00-00 |
from US $104.17 |
||
|
14
|
14
68D-G2735-00-00 Protector |
68D-G2735-00-00 |
US $186.18 |
||
|
15
|
15
67D-42662-00-00 Damper |
67D-42662-00-00 |
US $4 |
||
|
16
|
16
90119-06M79-00 Bolt, With Washer |
90119-06M79-00 |
from US $4.12 |
||
| replacement | |||||
|
16
|
16
90119-06280-00 |
90119-06280-00 |
from US $2.14 |
||
|
17
|
17
90464-07M50-00
Clamp
|
90464-07M50-00 |
— | ||
|
18
|
18
90464-07078-00 Clamp |
90464-07078-00 |
from US $2.13 |
||
|
19
|
19
67D-13444-40-00
Mark
|
67D-13444-40-00 |
— | ||
|
20
|
20
68D-E2138-40-00 Mark, Caution |
68D-E2138-40-00 |
from US $5.24 |
||
