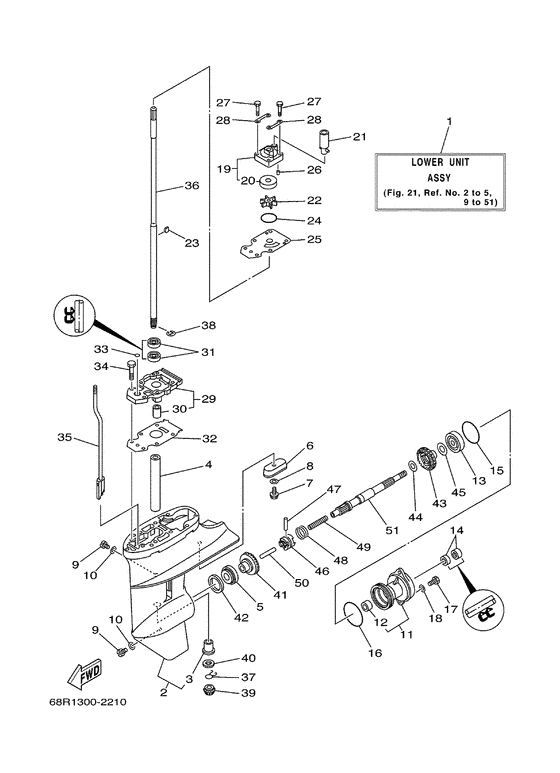

Lower casing & drive 1 Diagram Yamaha F6 MHS/L
- Year
- 2004
- Model
- F6B
- Model code
- 69F
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 6
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
68T-45300-00-4D Lower Unit AssyS |
68T-45300-00-4D |
US $1,265.88 |
||
| replacements | |||||
|
01
|
01
6AU-45300-00-8D Lower Unit AssyS |
6AU-45300-00-8D |
US $1,265.88 |
||
|
01
|
01
6AU-45300-02-8D Lower Unit AssyS |
6AU-45300-02-8D |
US $1,265.88 |
||
|
01
|
01
6AU-45300-04-8D Lower Unit AssyS |
6AU-45300-04-8D |
US $1,346.10 |
||
|
01
|
01
6AU-45300-04-8D Lower Unit AssyS |
6AU-45300-04-8D |
US $1,346.10 |
||
|
01
|
01
68T-45300-10-4D Lower Unit AssyL |
68T-45300-10-4D |
US $1,313.40 |
||
| replacements | |||||
|
01
|
01
6AU-45300-10-4D Lower Unit AssyL |
6AU-45300-10-4D |
US $1,313.40 |
||
|
01
|
01
6AU-45300-10-8D
Lower Unit Assy (L)
L |
6AU-45300-10-8D |
— | ||
|
01
|
01
6AU-45300-11-8D Lower Unit AssyL |
6AU-45300-11-8D |
US $1,313.40 |
||
|
01
|
01
6AU-45300-14-8D Lower Unit AssyL |
6AU-45300-14-8D |
US $1,018.15 |
||
|
01
|
01
6AU-45300-14-8D Lower Unit AssyL |
6AU-45300-14-8D |
US $1,018.15 |
||
|
02
|
02
68T-45311-00-4D Casing, Lower |
68T-45311-00-4D |
US $414.66 |
||
| replacements | |||||
|
02
|
02
60R-G5311-00-4D Casing, Lower |
60R-G5311-00-4D |
US $414.66 |
||
|
02
|
02
6AU-45311-01-8D Casing, Lower |
6AU-45311-01-8D |
from US $414.66 |
||
|
03
|
03
6G1-45317-09-00 Bushing, Drive Shaft |
6G1-45317-09-00 |
from US $14.56 |
||
|
04
|
04
90387-14M49-00 Collar |
90387-14M49-00 |
from US $9.49 |
||
|
05
|
05
933-06004-U0-00
Bearing
|
933-06004-U0-00 |
— | ||
| replacement | |||||
|
05
|
05
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.75 |
||
|
06
|
06
68T-45251-00-00 Anode |
68T-45251-00-00 |
from US $9.92 |
||
|
07
|
07
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
07
|
07
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
07
|
07
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
07
|
07
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
08
|
08
92990-06300-00 Washer, Internal Tooth |
92990-06300-00 |
from US $1.84 |
||
|
09
|
09
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
10
|
10
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
11
|
11
6G1-45361-01-4D
Cap, Lower Casing
|
6G1-45361-01-4D |
— | ||
| replacement | |||||
|
11
|
11
6G1-45361-01-8D Cap, Lower Casing |
6G1-45361-01-8D |
from US $88.56 |
||
|
12
|
12
6G1-45362-09-00 Bushing |
6G1-45362-09-00 |
from US $14.56 |
||
|
13
|
13
933-06004-U0-00
Bearing
|
933-06004-U0-00 |
— | ||
| replacement | |||||
|
13
|
13
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.75 |
||
|
14
|
14
93101-15074-00 Oil Seal |
93101-15074-00 |
from US $7.28 |
||
|
15
|
15
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.70 |
||
|
16
|
16
93210-53M08-00 O-Ring |
93210-53M08-00 |
US $2.55 |
||
| replacement | |||||
|
16
|
16
93210-53679-00 O-Ring |
93210-53679-00 |
from US $2.55 |
||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
18
|
18
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
63V-44301-00-00 Water Pump Housing Comp |
63V-44301-00-00 |
from US $39.68 |
||
|
20
|
20
63V-44322-00-00 Insert, Cartridge |
63V-44322-00-00 |
from US $11.92 |
||
|
21
|
21
68T-44366-00-00 Damper, Water Seal 2 |
68T-44366-00-00 |
US $7.23 |
||
|
22
|
22
68T-44352-00-00 Impeller |
68T-44352-00-00 |
from US $19.69 |
||
|
23
|
23
664-44338-00-00 Key, Woodruff |
664-44338-00-00 |
from US $6.23 |
||
|
24
|
24
932-10443-98-00
O-Ring
|
932-10443-98-00 |
— | ||
| replacement | |||||
|
24
|
24
93210-44704-00 O-Ring |
93210-44704-00 |
from US $1.42 |
||
|
25
|
25
68T-44323-00-00 Outer Plate, Cartridge |
68T-44323-00-00 |
from US $7.94 |
||
|
26
|
26
93604-12M07-00 Pin, Dowel |
93604-12M07-00 |
US $1.84 |
||
| replacement | |||||
|
26
|
26
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.66 |
||
|
27
|
27
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
28
|
28
63V-44328-00-00 Plate |
63V-44328-00-00 |
US $3.97 |
||
| replacement | |||||
|
28
|
28
63V-44328-01-00 Plate |
63V-44328-01-00 |
from US $3.97 |
||
|
29
|
29
68T-45331-00-5B Housing, Bearing |
68T-45331-00-5B |
US $61.34 |
||
| replacements | |||||
|
29
|
29
68T-45331-00-CA Housing, Bearing |
68T-45331-00-CA |
US $61.34 |
||
|
29
|
29
68T-45331-01-CA Housing, Bearing |
68T-45331-01-CA |
US $88.18 |
||
|
30
|
30
6G1-45316-09-00 Bushing, Drive Shaft |
6G1-45316-09-00 |
from US $14.22 |
||
|
31
|
31
93101-11M23-00 Oil Seal |
93101-11M23-00 |
from US $4.96 |
||
|
32
|
32
68T-45315-A0-00 Packing, Lower Casing |
68T-45315-A0-00 |
from US $7.37 |
||
|
33
|
33
93210-06ME6-00 O-Ring |
93210-06ME6-00 |
from US $2 |
||
|
34
|
34
97080-08025-00 Bolt |
97080-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
34
|
34
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
34
|
34
97095-08025-00 Bolt |
97095-08025-00 |
from US $2.98 |
||
|
35
|
35
68T-44150-00-00 Shift Cam Assy |
68T-44150-00-00 |
from US $46.56 |
||
|
36
|
36
68T-45511-00-00 Shaft, DriveS |
68T-45511-00-00 |
US $281.85 |
||
| replacement | |||||
|
36
|
36
6AU-45511-00-00 Shaft, DriveS |
6AU-45511-00-00 |
from US $206.86 |
||
|
36
|
36
68T-45511-10-00 Shaft, DriveL |
68T-45511-10-00 |
US $281.85 |
||
| replacement | |||||
|
36
|
36
6AU-45511-10-00 Shaft, DriveL |
6AU-45511-10-00 |
from US $228.62 |
||
|
37
|
37
90467-09M05-00 Clip |
90467-09M05-00 |
from US $1.34 |
||
|
38
|
38
990-01076-00-00
Clip
|
990-01076-00-00 |
— | ||
| replacement | |||||
|
38
|
38
99080-07600-00 Clip |
99080-07600-00 |
from US $1.66 |
||
|
39
|
39
68T-45551-00-00 Pinion (13T) |
68T-45551-00-00 |
from US $63.69 |
||
|
40
|
40
6G1-45533-00-19 Shim (T:1.9Mm)Ur |
6G1-45533-00-19 |
US $5.81 |
||
| replacement | |||||
|
40
|
40
6G1-45533-00-00 Shim (T:1.90Mm)Ur |
6G1-45533-00-00 |
from US $5.81 |
||
|
40
|
40
6G1-45533-00-20 Shim (T:2.0Mm)Ur |
6G1-45533-00-20 |
US $5.81 |
||
| replacement | |||||
|
40
|
40
6G1-45533-10-00 Shim (T:2.00Mm)Ur |
6G1-45533-10-00 |
from US $2.66 |
||
|
40
|
40
6G1-45533-00-21 Shim (T:2.1Mm)Ur |
6G1-45533-00-21 |
US $5.81 |
||
| replacement | |||||
|
40
|
40
6G1-45533-20-00 Shim (T:2.10Mm)Ur |
6G1-45533-20-00 |
from US $5.81 |
||
|
40
|
40
6G1-45533-00-22 Shim (T:2.2Mm)Ur |
6G1-45533-00-22 |
US $5.81 |
||
| replacement | |||||
|
40
|
40
6G1-45533-30-00 Shim (T:2.20Mm)Ur |
6G1-45533-30-00 |
from US $5.81 |
||
|
41
|
41
68T-45560-00-00 Gear 1 (27T) |
68T-45560-00-00 |
from US $103.21 |
||
|
42
|
42
664-45587-01-10 Shim (T:0.10Mm)Ur |
664-45587-01-10 |
US $5.81 |
||
| replacement | |||||
|
42
|
42
664-45587-01-00 Shim (T:0.10Mm)Ur |
664-45587-01-00 |
from US $5.09 |
||
|
42
|
42
664-45587-01-12 Shim (T:0.12Mm)Ur |
664-45587-01-12 |
US $5.81 |
||
| replacement | |||||
|
42
|
42
664-45587-10-00 Shim (T:0.12Mm)Ur |
664-45587-10-00 |
from US $5.09 |
||
|
42
|
42
664-45587-01-15 Shim (T:0.15Mm)Ur |
664-45587-01-15 |
US $5.81 |
||
| replacement | |||||
|
42
|
42
664-45587-20-00 Shim (T:0.15Mm)Ur |
664-45587-20-00 |
from US $5.09 |
||
|
42
|
42
664-45587-01-18 Shim (T:0.18Mm)Ur |
664-45587-01-18 |
US $5.81 |
||
| replacement | |||||
|
42
|
42
664-45587-30-00 Shim (T:0.18Mm)Ur |
664-45587-30-00 |
from US $5.09 |
||
|
42
|
42
664-45587-01-30 Shim (T:0.30Mm)Ur |
664-45587-01-30 |
US $5.81 |
||
| replacement | |||||
|
42
|
42
664-45587-40-00 Shim (T:0.30Mm)Ur |
664-45587-40-00 |
from US $5.09 |
||
|
42
|
42
664-45587-01-40 Shim (T:0.40Mm)Ur |
664-45587-01-40 |
US $5.81 |
||
| replacement | |||||
|
42
|
42
664-45587-50-00 Shim (T:0.40Mm)Ur |
664-45587-50-00 |
from US $5.09 |
||
|
42
|
42
664-45587-01-50 Shim (T:0.50Mm)Ur |
664-45587-01-50 |
US $5.81 |
||
| replacement | |||||
|
42
|
42
664-45587-60-00 Shim (T:0.50Mm)Ur |
664-45587-60-00 |
from US $5.09 |
||
|
43
|
43
68T-45571-00-00 Gear 2 (27T) |
68T-45571-00-00 |
from US $131.94 |
||
|
44
|
44
90201-15M89-00 Washer, Plate |
90201-15M89-00 |
from US $3.26 |
||
|
45
|
45
647-45567-00-00 Shim (T:0.10Mm)Un |
647-45567-00-00 |
from US $5.81 |
||
|
46
|
46
68T-45631-00-00 Clutch, Dog |
68T-45631-00-00 |
from US $47.53 |
||
|
47
|
47
6G1-45632-00-00 Pin, Cross |
6G1-45632-00-00 |
from US $6.38 |
||
|
48
|
48
654-45633-00-00 Ring, Cross Pin |
654-45633-00-00 |
from US $3.12 |
||
|
49
|
49
90501-12M05-00 Spring, Compression |
90501-12M05-00 |
from US $3.54 |
||
|
50
|
50
6G1-45635-00-00 Plunger, Shift |
6G1-45635-00-00 |
from US $2 |
||
|
51
|
51
68T-45611-00-00 Shaft, Propeller |
68T-45611-00-00 |
from US $259.74 |
||
