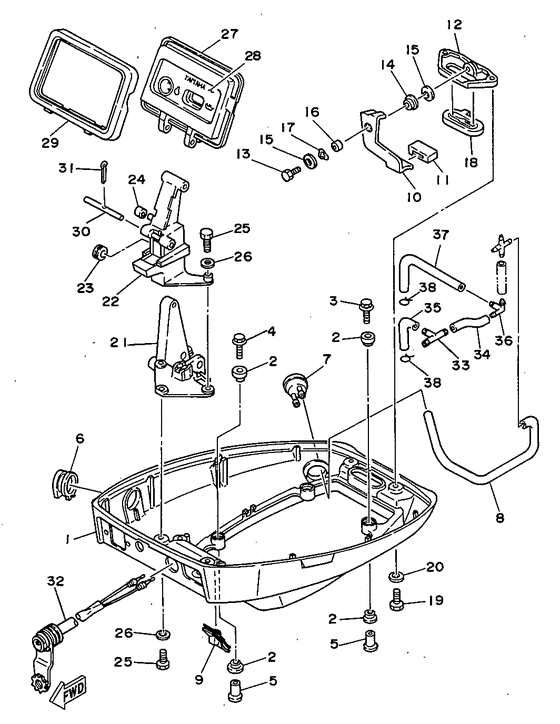

Bottom cowling Diagram Yamaha F8 M(E)HS/L
- Year
- 1997
- Model
- F8B
- Model code
- 6J7
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G8-42711-02-4D Cowling, Bottom 1 |
6G8-42711-02-4D |
US $226.61 |
||
|
02
|
02
90480-09M35-00 Grommet |
90480-09M35-00 |
from US $2.55 |
||
|
03
|
03
90119-06M56-00 Bolt, With Washer |
90119-06M56-00 |
US $1.21 |
||
| replacement | |||||
|
03
|
03
90119-06293-00 Bolt, With Washer |
90119-06293-00 |
from US $1.21 |
||
|
04
|
04
90119-06M55-00 Bolt, With Washer |
90119-06M55-00 |
from US $3.83 |
||
|
05
|
05
90387-06M15-00 Collar |
90387-06M15-00 |
from US $3.40 |
||
|
06
|
06
6G8-42724-00-00 GrommetM/em |
6G8-42724-00-00 |
US $17.32 |
||
|
07
|
07
6G8-44391-00-00 Nipple, Hose |
6G8-44391-00-00 |
US $4.11 |
||
|
08
|
08
90445-09163-00
Hose (L235)
Except for boden sea |
90445-09163-00 |
— | ||
| replacement | |||||
|
08
|
08
90445-09010-00
Hose (L260)
Except for boden sea |
90445-09010-00 |
— | ||
|
09
|
09
6G8-42727-00-00 Grommet |
6G8-42727-00-00 |
from US $5.29 |
||
|
10
|
10
6G8-42815-00-00 Lever, Clamp |
6G8-42815-00-00 |
from US $22.88 |
||
|
11
|
11
6G8-42831-00-00 Bushing |
6G8-42831-00-00 |
from US $1.40 |
||
|
12
|
12
6G8-42811-00-94 Stay |
6G8-42811-00-94 |
from US $37.58 |
||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
14
|
14
90386-08M49-00 Bush |
90386-08M49-00 |
from US $2.55 |
||
|
15
|
15
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
16
|
16
90387-06M72-00
Collar
|
90387-06M72-00 |
— | ||
| replacement | |||||
|
16
|
16
903-87067-04-00
Collar (796)
|
903-87067-04-00 |
— | ||
|
17
|
17
90206-08M13-00
Washer, Wave
|
90206-08M13-00 |
— | ||
|
18
|
18
6G8-42748-00-00 Grommet |
6G8-42748-00-00 |
from US $1.77 |
||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
6G8-42738-00-94 Plate, Fitting |
6G8-42738-00-94 |
US $31.88 |
||
|
22
|
22
6G8-42719-00-94 Panel, Front Lower |
6G8-42719-00-94 |
from US $31.88 |
||
|
23
|
23
90480-19031-00 Grommet |
90480-19031-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
90480-19368-00 Grommet |
90480-19368-00 |
from US $1.56 |
||
|
24
|
24
90445-05ME6-00
Hose (L8)
|
90445-05ME6-00 |
— | ||
| replacement | |||||
|
24
|
24
904-45055-H7-00
Hose (L30)
|
904-45055-H7-00 |
— | ||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
27
|
27
6G8-42614-02-00 Panel, Front UpperF8bm/f9.9bm |
6G8-42614-02-00 |
US $15.86 |
||
|
28
|
28
6G8-42677-00-00
Graphic, Front
F8bm/f9.9bm |
6G8-42677-00-00 |
— | ||
|
29
|
29
6G8-42629-02-00
Seal
|
6G8-42629-02-00 |
— | ||
|
30
|
30
6G8-42755-00-00 Hinge, Cowling |
6G8-42755-00-00 |
from US $5.67 |
||
|
31
|
31
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
32
|
32
682-84381-00-00 2P ConcentF8bm/f9.9bm |
682-84381-00-00 |
from US $45.77 |
||
|
33
|
33
6G8-24379-00-00
Pipe, Joint 4
|
6G8-24379-00-00 |
— | ||
|
34
|
34
90445-10M78-00 Hose (L50) |
90445-10M78-00 |
US $6.38 |
||
| replacement | |||||
|
34
|
34
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.94 |
||
|
35
|
35
6G8-12476-00-00 Pipe 6 |
6G8-12476-00-00 |
US $2.94 |
||
|
36
|
36
6G8-24378-01-00 Pipe, Joint 3 |
6G8-24378-01-00 |
US $16.51 |
||
|
37
|
37
6G8-12485-00-00 Pipe 5 |
6G8-12485-00-00 |
US $24.50 |
||
|
38
|
38
90467-10M04-00 Clip |
90467-10M04-00 |
from US $2.91 |
||
