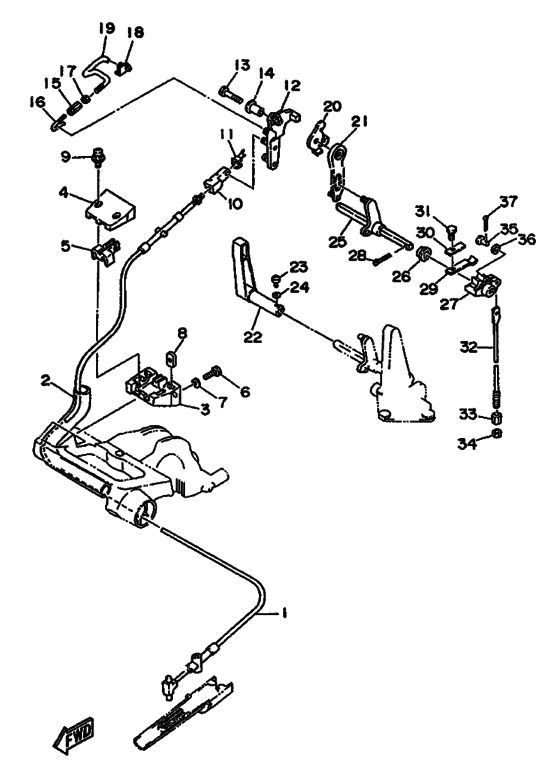

Control Diagram Yamaha F8 M(E)HS/L
- Year
- 1994
- Model
- F8B
- Model code
- 6J7
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
6G9-48311-02-00 CableUR F9.9B |
6G9-48311-02-00 |
US $62.96 |
||
1
|
1
6J7-48311-02-00
Cable
UR F8B |
6J7-48311-02-00 |
— | ||
2
|
2
90445-24M00-00 Hose (L165) |
90445-24M00-00 |
from US $3.29 |
||
3
|
3
6G8-41661-00-98 Bracket 1 |
6G8-41661-00-98 |
US $17.05 |
||
4
|
4
6G8-41662-00-98 Bracket 2 |
6G8-41662-00-98 |
US $12.12 |
||
5
|
5
6G8-41663-00-00 Bracket 3 |
6G8-41663-00-00 |
US $3.74 |
||
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.13 |
||
replacement | |||||
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
8
|
8
6G8-41654-00-00 Nut |
6G8-41654-00-00 |
US $4.79 |
||
9
|
9
90159-05M06-00 Screw, With Washer |
90159-05M06-00 |
US $2.24 |
||
10
|
10
6G8-26363-00-00 End, Wire 1 |
6G8-26363-00-00 |
from US $3.44 |
||
11
|
11
6G8-26364-00-00 End, Cable |
6G8-26364-00-00 |
US $3.74 |
||
12
|
12
6G8-41212-00-00 Arm, Accel |
6G8-41212-00-00 |
US $15.26 |
||
13
|
13
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
replacement | |||||
13
|
13
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.54 |
||
14
|
14
90387-06M58-00 Collar |
90387-06M58-00 |
US $3.74 |
||
15
|
15
6G8-41238-01-00 Joint, Link |
6G8-41238-01-00 |
US $8.53 |
||
16
|
16
6G8-41241-01-00 Rod, Link |
6G8-41241-01-00 |
US $5.29 |
||
17
|
17
95303-04600-00 Nut |
95303-04600-00 |
US $2.24 |
||
18
|
18
6G8-41237-01-00 Joint, Link |
6G8-41237-01-00 |
US $8.23 |
||
19
|
19
6G8-41242-01-00 Rod 2 |
6G8-41242-01-00 |
US $5.73 |
||
20
|
20
6G8-14493-00-00 Stay 1UR F9.9B |
6G8-14493-00-00 |
US $2.94 |
||
20
|
20
6J6-14493-00-00
Stay 1
UR F8B |
6J6-14493-00-00 |
— | ||
21
|
21
6G8-44111-00-00 Handle, Gear Shift |
6G8-44111-00-00 |
US $27.08 |
||
22
|
22
6G9-44111-00-98 Handle, Gear Shift |
6G9-44111-00-98 |
US $27.08 |
||
replacement | |||||
22
|
22
6G9-44111-00-00 Handle, Gear Shift |
6G9-44111-00-00 |
US $19.39 |
||
23
|
23
97980-04116-00 Screw, With Washer |
97980-04116-00 |
from US $1.50 |
||
replacements | |||||
23
|
23
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $0.90 |
||
23
|
23
97985-04116-00 Screw, With Washer |
97985-04116-00 |
US $1.50 |
||
24
|
24
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $0.90 |
||
25
|
25
6G8-44159-00-00 Handle, Gear Shift |
6G8-44159-00-00 |
US $15.71 |
||
26
|
26
682-44132-00-00 Bushing |
682-44132-00-00 |
US $6.28 |
||
27
|
27
6G8-44141-00-00
Link, Shift Rod
|
6G8-44141-00-00 |
— | ||
28
|
28
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.38 |
||
29
|
29
682-44116-00-00
Spring
|
682-44116-00-00 |
— | ||
30
|
30
682-44117-00-00 Bracket |
682-44117-00-00 |
US $3.52 |
||
31
|
31
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
replacement | |||||
31
|
31
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.94 |
||
32
|
32
6G9-44143-00-00 Rod, ShiftUR SHORT |
6G9-44143-00-00 |
US $25.13 |
||
32
|
32
6G8-44143-10-00 Rod, ShiftUR LONG |
6G8-44143-10-00 |
US $25.28 |
||
33
|
33
90170-06015-00 Nut |
90170-06015-00 |
US $10.32 |
||
replacement | |||||
33
|
33
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $10.28 |
||
34
|
34
953-80067-00-00
Nut
|
953-80067-00-00 |
— | ||
replacement | |||||
34
|
34
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.43 |
||
35
|
35
91790-05020-00 Pin, Clevis |
91790-05020-00 |
US $2.64 |
||
36
|
36
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $0.90 |
||
37
|
37
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $2.69 |
