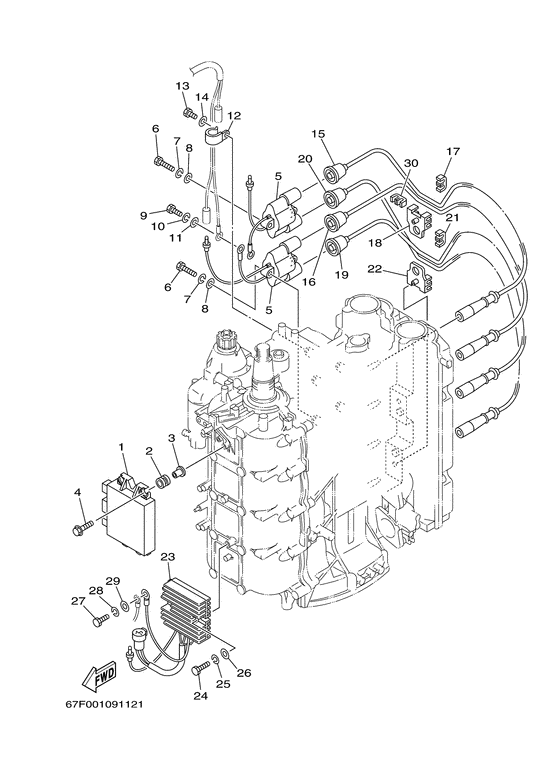

Electrical 1 Diagram Yamaha F80 ETL/X
- Year
- 2007
- Model
- F80A
- Model code
- 67G
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 80
- Sales region
- Switzerland (040)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67F-85540-03-00 C.d.i. Unit Assy |
67F-85540-03-00 |
from US $691.68 |
||
|
02
|
02
68V-82317-00-00 Damper, Ignition Coil |
68V-82317-00-00 |
US $4.53 |
||
|
03
|
03
90387-06119-00 Collar |
90387-06119-00 |
from US $2.32 |
||
|
04
|
04
90119-06M59-00 Bolt, With Washer |
90119-06M59-00 |
US $2.83 |
||
| replacement | |||||
|
04
|
04
901-19062-89-00 BOLT WITH WASHER |
901-19062-89-00 |
from US $2.32 |
||
|
05
|
05
67F-85570-00-00 Ignition Coil Assy |
67F-85570-00-00 |
from US $94.23 |
||
|
06
|
06
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
06
|
06
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
08
|
08
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
09
|
09
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
09
|
09
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
90465-06M86-00 Clamp |
90465-06M86-00 |
from US $4.64 |
||
|
13
|
13
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
14
|
14
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
67F-82341-00-00 Cord, High Tension 1#1 |
67F-82341-00-00 |
from US $19.13 |
||
|
16
|
16
67F-82342-00-00 Cord, High Tension 2#2 |
67F-82342-00-00 |
from US $19.13 |
||
|
17
|
17
67F-82361-00-00 Clamp, Cord |
67F-82361-00-00 |
from US $1.70 |
||
|
18
|
18
67F-82362-00-00 Clamp, Cord 2 |
67F-82362-00-00 |
from US $4.82 |
||
|
19
|
19
67F-82343-00-00 Cord, High Tension 3#3 |
67F-82343-00-00 |
from US $19.13 |
||
|
20
|
20
67F-82344-00-00 Cord, High Tension 4#4 |
67F-82344-00-00 |
from US $19.13 |
||
|
21
|
21
67F-82361-00-00 Clamp, Cord |
67F-82361-00-00 |
from US $1.70 |
||
|
22
|
22
67F-82362-00-00 Clamp, Cord 2 |
67F-82362-00-00 |
from US $4.82 |
||
|
23
|
23
67F-81960-12-00 Rectifier & Regulator Assy |
67F-81960-12-00 |
from US $219.67 |
||
|
24
|
24
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
24
|
24
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
27
|
27
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
29
|
29
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
67F-82361-00-00 Clamp, Cord67g:1006575- |
67F-82361-00-00 |
from US $1.70 |
||
