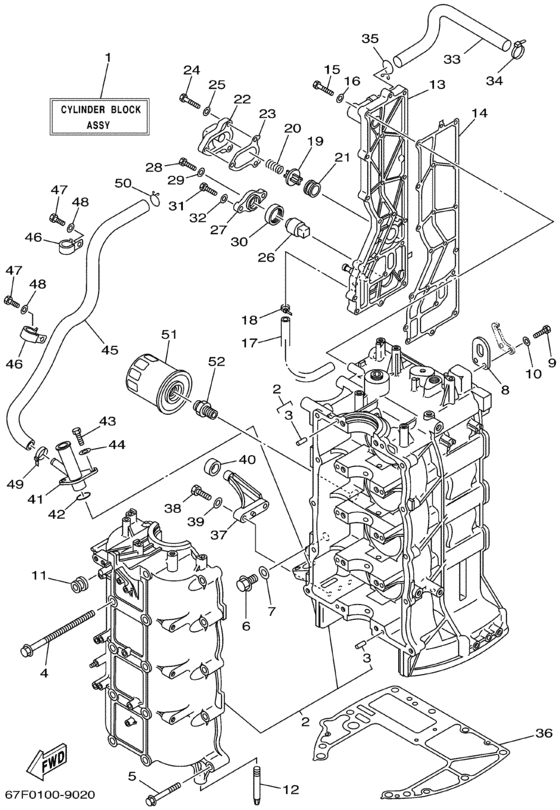

Cylinder crankcase Diagram Yamaha F80 TL/XR
- Year
- 1999
- Model
- F80
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 80
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67F-W009B-00-1S
Cylinder Block Assembly
|
67F-W009B-00-1S |
— | ||
| replacements | |||||
|
1
|
1
67F-W009B-28-9S
Cylinder Block Assy (6D8 Brg)
|
67F-W009B-28-9S |
— | ||
|
1
|
1
67F-W009B-09-9S
Cylinder Block Assy
|
67F-W009B-09-9S |
— | ||
|
1
|
1
67F-W009B-27-9S Cylinder Block Assy |
67F-W009B-27-9S |
US $4,809.97 |
||
|
1
|
1
67F-W009B-27-9S Cylinder Block Assy |
67F-W009B-27-9S |
US $4,809.97 |
||
|
2
|
2
67F-15100-00-1S
Crankcase Assembly
|
67F-15100-00-1S |
— | ||
| replacement | |||||
|
2
|
2
67F-15100-01-00
Crankcase Assy
|
67F-15100-01-00 |
— | ||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
4
|
4
90119-10M88-00 Bolt, With Washer |
90119-10M88-00 |
from US $9.63 |
||
|
5
|
5
90119-08M66-00 Bolt, With Washer |
90119-08M66-00 |
from US $5.22 |
||
|
6
|
6
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.09 |
||
|
7
|
7
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
8
|
8
62Y-11119-00-00 Hanger, Engine |
62Y-11119-00-00 |
from US $10.34 |
||
|
9
|
9
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
10
|
10
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.84 |
||
|
12
|
12
67F-15142-00-00 Guide 1 |
67F-15142-00-00 |
from US $18.70 |
||
|
13
|
13
67F-41113-00-1S Outer Cover, Exhaust |
67F-41113-00-1S |
US $162.07 |
||
| replacement | |||||
|
13
|
13
67F-41113-00-9S Outer Cover, Exhaust |
67F-41113-00-9S |
US $162.07 |
||
|
14
|
14
67F-41114-A0-00 Gasket, Exhaust Outer Cover |
67F-41114-A0-00 |
US $19.55 |
||
| replacement | |||||
|
14
|
14
67F-41114-A2-00 Gasket, Exhaust Outer Cover |
67F-41114-A2-00 |
from US $19.55 |
||
|
15
|
15
97013-06030-00 Bolt |
97013-06030-00 |
from US $1.65 |
||
| replacement | |||||
|
15
|
15
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
16
|
16
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
90445-10M40-00 Hose (L330) |
90445-10M40-00 |
US $6.38 |
||
| replacement | |||||
|
17
|
17
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.38 |
||
|
18
|
18
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
18
|
18
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
18
|
18
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
19
|
19
6G5-12416-00-00 Valve, Pressure Cont |
6G5-12416-00-00 |
from US $10.92 |
||
| replacement | |||||
|
19
|
19
60H-12416-00-00 Valve, Pressure Control |
60H-12416-00-00 |
from US $9.26 |
||
|
20
|
20
90501-16M11-00 Spring, Compression |
90501-16M11-00 |
from US $2.32 |
||
|
21
|
21
904-8020M-05-00 Grommet |
904-8020M-05-00 |
from US $1.34 |
||
|
22
|
22
67F-1246A-00-1S Cover 1 |
67F-1246A-00-1S |
US $26.64 |
||
| replacement | |||||
|
22
|
22
67F-1246A-A0-9S Cover 1 |
67F-1246A-A0-9S |
from US $26.64 |
||
|
23
|
23
67F-12435-A0-00 Gasket |
67F-12435-A0-00 |
from US $5.53 |
||
|
24
|
24
97013-06020-00 Bolt |
97013-06020-00 |
from US $1.42 |
||
|
25
|
25
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
26
|
26
67F-11325-00-00 Tab, Trim |
67F-11325-00-00 |
from US $8.94 |
||
|
27
|
27
67F-11327-00-94 Cover, Anode |
67F-11327-00-94 |
US $17.85 |
||
| replacements | |||||
|
27
|
27
67F-11301-10-00 Anode Cover Assy |
67F-11301-10-00 |
US $17.85 |
||
|
27
|
27
67F-11301-11-00 ANODE COVER ASSY |
67F-11301-11-00 |
from US $17.85 |
||
|
28
|
28
970-75060-20-00
Bolt
|
970-75060-20-00 |
— | ||
| replacement | |||||
|
28
|
28
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
29
|
29
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
67F-11328-00-00
Grommet, Anode
|
67F-11328-00-00 |
— | ||
| replacement | |||||
|
30
|
30
67F-11328-01-00 GROMMET ANODE |
67F-11328-01-00 |
from US $2.27 |
||
|
31
|
31
97075-08025-00 Bolt |
97075-08025-00 |
US $1.42 |
||
| replacement | |||||
|
31
|
31
97D75-08025-00 Bolt, Hexagon Deep Recess |
97D75-08025-00 |
from US $1.42 |
||
|
32
|
32
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
33
|
33
67F-1243A-00-00 Hose 1 |
67F-1243A-00-00 |
from US $13.74 |
||
|
34
|
34
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
34
|
34
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
34
|
34
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
35
|
35
90467-20M15-00 Clip |
90467-20M15-00 |
from US $3.83 |
||
|
36
|
36
67F-11351-00-00 Gasket, Cylinder |
67F-11351-00-00 |
US $73.78 |
||
| replacement | |||||
|
36
|
36
68V-11351-00-00 Gasket, Cylinder |
68V-11351-00-00 |
from US $73.78 |
||
|
37
|
37
67F-42761-00-94 Stopper |
67F-42761-00-94 |
US $21.11 |
||
| replacement | |||||
|
37
|
37
67F-42761-01-00 Stopper |
67F-42761-01-00 |
from US $21.11 |
||
|
38
|
38
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
38
|
38
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
39
|
39
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
39
|
39
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
40
|
40
663-44533-00-00 Damper, Upper Mount Rubber |
663-44533-00-00 |
from US $5.38 |
||
|
41
|
41
67F-15378-00-00
Holder
|
67F-15378-00-00 |
— | ||
|
42
|
42
93210-19MJ3-00 O-Ring |
93210-19MJ3-00 |
from US $7.65 |
||
|
43
|
43
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
43
|
43
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
44
|
44
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
44
|
44
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
45
|
45
67F-15393-00-00 Pipe, Breather 2 |
67F-15393-00-00 |
US $40.73 |
||
|
46
|
46
90465-08M85-00
Clamp
|
90465-08M85-00 |
— | ||
|
47
|
47
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
47
|
47
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
48
|
48
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
48
|
48
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
49
|
49
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
49
|
49
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
49
|
49
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
50
|
50
90467-15M14-00 Clip |
90467-15M14-00 |
from US $3.68 |
||
|
51
|
51
3FV-13440-00-00
Element Assy, Oil Cleaner
|
3FV-13440-00-00 |
— | ||
| replacements | |||||
|
51
|
51
3FV-13440-20-00 Element Assy, Oil Cleaner |
3FV-13440-20-00 |
from US $19.55 |
||
|
51
|
51
3FV-13440-30-00 ELEMENT ASSY, OIL CL |
3FV-13440-30-00 |
from US $18.86 |
||
|
52
|
52
90401-20145-00 Bolt, Union |
90401-20145-00 |
from US $14.60 |
||
| replacement | |||||
|
52
|
52
90401-20007-00 Bolt, Union |
90401-20007-00 |
from US $14.73 |
||
