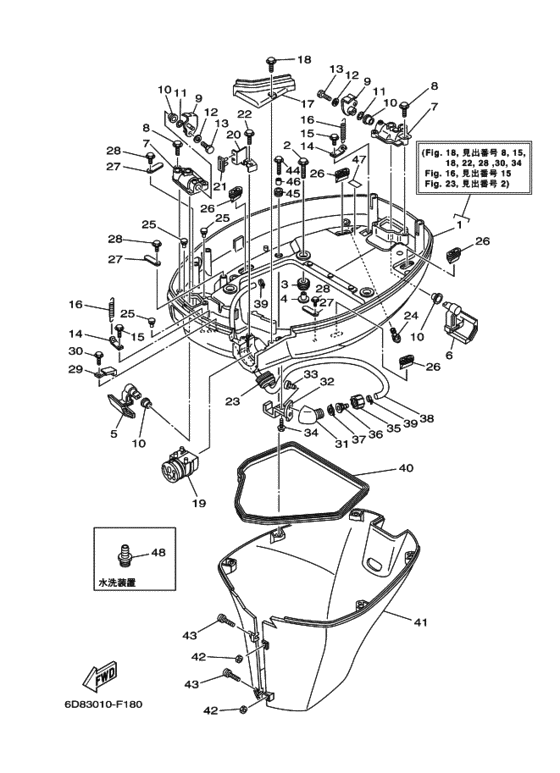

Bottom cowling assy Diagram Yamaha F90 ETL/X
- Year
- 2007
- Model
- F90B
- Model code
- 6D8
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- Japan (120)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6D8-42710-00-4D Bottom Cowling Assy |
6D8-42710-00-4D |
US $1,184.04 |
||
| replacement | |||||
|
1
|
1
6D8-42710-00-8D Bottom Cowling Assy |
6D8-42710-00-8D |
from US $1,184.04 |
||
|
2
|
2
90119-08M22-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-08M22-00 |
from US $3.60 |
||
| replacement | |||||
|
2
|
2
901-19081-87-00 BOLT WITH WASHERボルト，ウイズワツシヤ; |
901-19081-87-00 |
from US $5.64 |
||
|
3
|
3
90480-22M15-00 Grommet |
90480-22M15-00 |
from US $5.67 |
||
|
4
|
4
90387-08M37-00 Collarカラー; |
90387-08M37-00 |
from US $7.62 |
||
|
5
|
5
67F-42815-00-4D Lever, Clampレバー，クランプ; |
67F-42815-00-4D |
US $40.20 |
||
| replacement | |||||
|
5
|
5
67F-42815-00-8D Lever, Clampレバー，クランプ; |
67F-42815-00-8D |
from US $40.20 |
||
|
6
|
6
67F-42816-00-4D Lever, Clampレバー，クランプ; |
67F-42816-00-4D |
US $40.20 |
||
| replacement | |||||
|
6
|
6
67F-42816-00-8D Lever, Clampレバー，クランプ; |
67F-42816-00-8D |
from US $40.20 |
||
|
7
|
7
67F-42828-00-5B Plate, Clamp |
67F-42828-00-5B |
US $37.17 |
||
| replacement | |||||
|
7
|
7
67F-42828-00-9S Plate, Clamp |
67F-42828-00-9S |
from US $37.17 |
||
|
8
|
8
90109-06M82-00 Bolt |
90109-06M82-00 |
from US $2 |
||
|
9
|
9
68V-42818-01-00 Lever, Clampレバー，クランプ; |
68V-42818-01-00 |
from US $17.71 |
||
|
10
|
10
90386-15M73-00 Bush |
90386-15M73-00 |
from US $3.32 |
||
|
11
|
11
90206-15M18-00 Washer, Waveワツシヤ，ウエイブ; |
90206-15M18-00 |
from US $1.66 |
||
|
12
|
12
90201-06068-00 Washer, Plateワツシヤ，プレート; |
90201-06068-00 |
US $2.98 |
||
| replacement | |||||
|
12
|
12
90201-06M02-00 Washer,plate (6K8)ワツシヤ，プレート; |
90201-06M02-00 |
from US $2.27 |
||
|
13
|
13
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
|
14
|
14
64D-43144-00-00 Hook, Spring |
64D-43144-00-00 |
from US $3.26 |
||
|
15
|
15
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
16
|
16
90506-16M34-00 Spring, Tensionスプリング，テンシヨン; |
90506-16M34-00 |
from US $2.32 |
||
|
17
|
17
67F-42738-00-5B Plate, Fittingプレート，フイツテイング; |
67F-42738-00-5B |
US $46.97 |
||
| replacement | |||||
|
17
|
17
67F-42738-00-8D Plate, Fittingプレート，フイツテイング; |
67F-42738-00-8D |
from US $46.97 |
||
|
18
|
18
90109-06M96-00 Bolt |
90109-06M96-00 |
from US $3.97 |
||
|
19
|
19
68V-42725-00-00 Grommet |
68V-42725-00-00 |
US $24.09 |
||
|
20
|
20
6D8-42756-00-00 Stay, Clampステー，クランプ; |
6D8-42756-00-00 |
US $9.07 |
||
| replacement | |||||
|
20
|
20
6D8-42756-02-00 Stay, Clampステー，クランプ; |
6D8-42756-02-00 |
from US $9.07 |
||
|
21
|
21
6D8-42717-00-00 Rubber, Seal 2ラバー，シール ２; |
6D8-42717-00-00 |
from US $4.53 |
||
|
22
|
22
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
23
|
23
6H1-42726-21-00 Grommet |
6H1-42726-21-00 |
US $5.95 |
||
| replacement | |||||
|
23
|
23
6H1-42726-22-00 GROMMET |
6H1-42726-22-00 |
from US $5.95 |
||
|
24
|
24
69D-44391-00-00 Nipple, Hoseニツプル，ホース; |
69D-44391-00-00 |
from US $6.52 |
||
|
24
|
24
6H3-44391-01-00
Nipple, Hose
ニツプル，ホース; 参照; ６Ｄ７３：１００４４９９〜 ６Ｄ８３：１０２４５９８〜セット互換あり |
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
24
|
24
6BL-44391-00-00 Nipple, Hoseニツプル，ホース; 参照; ６Ｄ７３：１００４４９９〜 ６Ｄ８３：１０２４５９８〜セット互換あり |
6BL-44391-00-00 |
from US $0.93 |
||
|
25
|
25
6H4-42748-00-00 Grommet |
6H4-42748-00-00 |
US $1.98 |
||
|
26
|
26
67F-42717-00-00 Rubber, Seal 2ラバー，シール ２; |
67F-42717-00-00 |
from US $5.24 |
||
|
27
|
27
6E5-82588-00-00 Plateプレート; |
6E5-82588-00-00 |
from US $5.67 |
||
|
28
|
28
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
|
29
|
29
90465-08M23-00 Clamp |
90465-08M23-00 |
from US $3.54 |
||
|
30
|
30
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
31
|
31
68T-12572-00-00 Adapterスイセンソウチ |
68T-12572-00-00 |
US $9.35 |
||
| replacement | |||||
|
31
|
31
6DR-12572-00-00 Adapterスイセンソウチ |
6DR-12572-00-00 |
from US $9.35 |
||
|
32
|
32
67F-12535-00-00 Plateスイセンソウチ |
67F-12535-00-00 |
US $27.20 |
||
| replacement | |||||
|
32
|
32
67F-12535-01-00 Plateスイセンソウチ |
67F-12535-01-00 |
from US $27.20 |
||
|
33
|
33
90167-06002-00 Screw, Tappingスイセンソウチ |
90167-06002-00 |
from US $1.34 |
||
|
34
|
34
90109-06M86-00 Boltスイセンソウチ |
90109-06M86-00 |
from US $2.52 |
||
|
35
|
35
6R3-12581-00-00 Joint, Hose 1ジヨイント，ホース １; スイセンソウチ |
6R3-12581-00-00 |
from US $2.66 |
||
|
36
|
36
6R3-12582-00-00 Joint, Hose 2ジヨイント，ホース ２; スイセンソウチ |
6R3-12582-00-00 |
from US $2.32 |
||
|
37
|
37
6R3-12583-00-00 Gasket, Hose Jointガスケツト，ホースジヨイント; スイセンソウチ |
6R3-12583-00-00 |
from US $1.13 |
||
|
38
|
38
67F-24312-00-00 Pipe 2スイセンソウチ |
67F-24312-00-00 |
from US $34.14 |
||
|
39
|
39
904-6511M-10-00
Clamp
スイセンソウチ |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
39
|
39
80L-26397-00-00 Bandスイセンソウチ |
80L-26397-00-00 |
from US $1.21 |
||
|
39
|
39
904-65100-98-00 Clampスイセンソウチ |
904-65100-98-00 |
from US $1.34 |
||
|
40
|
40
61A-42716-00-00 Rubber, Seal 1ラバー，シール １; |
61A-42716-00-00 |
US $58.30 |
||
|
41
|
41
67F-42741-01-8D Apron |
67F-42741-01-8D |
from US $258.36 |
||
|
42
|
42
95380-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95380-06600-00 |
from US $1.07 |
||
|
43
|
43
90159-06M28-00 Screw, With Washer |
90159-06M28-00 |
from US $4.39 |
||
|
44
|
44
90109-06M80-00 Bolt |
90109-06M80-00 |
from US $2.13 |
||
|
45
|
45
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $4.82 |
||
|
46
|
46
90387-06M43-00 Collarカラー; |
90387-06M43-00 |
from US $4.96 |
||
|
47
|
47
67F-82377-00-00 Labelラベル; |
67F-82377-00-00 |
from US $2.13 |
||
|
48
|
48
69J-12584-00-00 Joint, Hose 3ジヨイント，ホース ３; ＡＰ スイセンソウチ |
69J-12584-00-00 |
from US $4.11 |
||
