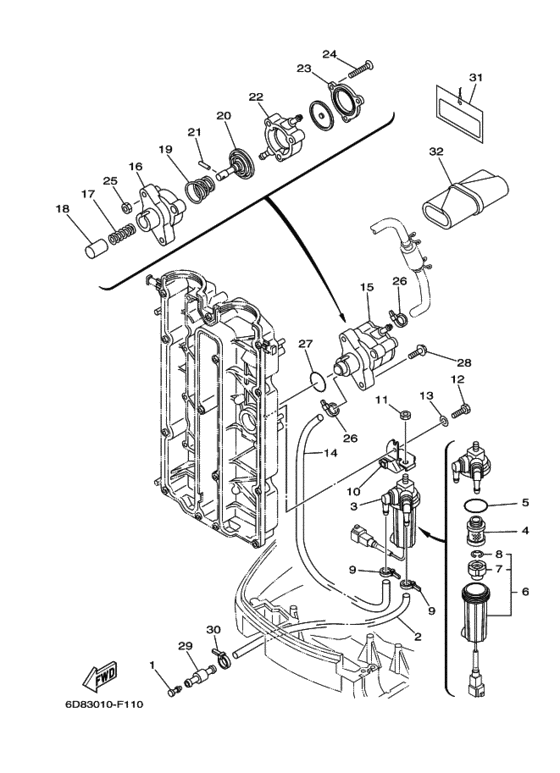

Fuel damper Diagram Yamaha F90 ETL/X
- Year
- 2007
- Model
- F90B
- Model code
- 6D8
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- Japan (120)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-85547-00-00 Damperダンパ; |
689-85547-00-00 |
US $3.97 |
||
|
2
|
2
90445-13M27-00 Hose (L950)ホース ; Ｌ９５０ |
90445-13M27-00 |
US $22.10 |
||
|
3
|
3
6D8-24560-00-00
Filter Assy
|
6D8-24560-00-00 |
— | ||
| replacement | |||||
|
3
|
3
6D8-24560-01-00 Filter Assy |
6D8-24560-01-00 |
from US $93.26 |
||
|
4
|
4
6D8-24563-00-00 Element, Filter．エレメント，フイルタ; |
6D8-24563-00-00 |
US $16.72 |
||
| replacement | |||||
|
4
|
4
6D8-WS24A-00-00 Element, Filter．エレメント，フイルタ; |
6D8-WS24A-00-00 |
from US $16.72 |
||
|
5
|
5
6D8-24564-00-00 Gasket．ガスケツト; |
6D8-24564-00-00 |
from US $6.38 |
||
|
6
|
6
6D8-24562-00-00
Cup, Filter
．カツプ，フイルタ; |
6D8-24562-00-00 |
— | ||
| replacement | |||||
|
6
|
6
6D8-WS24B-00-00 Cup, Filter (With Tag)．カツプ，フイルタ; |
6D8-WS24B-00-00 |
from US $90.49 |
||
|
7
|
7
6D8-24469-00-00 Float, Water Level．．フロート，ウオータ レベル; |
6D8-24469-00-00 |
from US $8.22 |
||
|
8
|
8
6D8-24519-00-00 Clip．．クリツプ; |
6D8-24519-00-00 |
from US $1.56 |
||
|
9
|
9
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
9
|
9
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
9
|
9
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
10
|
10
6D8-24566-00-00 Bracket, Filter |
6D8-24566-00-00 |
from US $11.48 |
||
|
11
|
11
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
11
|
11
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
11
|
11
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
12
|
12
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
6D8-24311-00-00 Pipe, Fuel 1 |
6D8-24311-00-00 |
from US $18.56 |
||
| replacement | |||||
|
14
|
14
6D8-24311-10-00 Pipe, Fuel 1 |
6D8-24311-10-00 |
from US $56.65 |
||
|
15
|
15
6D8-24410-00-00 Fuel Pump Assy |
6D8-24410-00-00 |
US $145.07 |
||
| replacement | |||||
|
15
|
15
6D8-24410-10-00 Fuel Pump Assy |
6D8-24410-10-00 |
from US $145.07 |
||
|
16
|
16
68V-24412-00-00 Body 1．ボデー １; |
68V-24412-00-00 |
from US $58.86 |
||
|
17
|
17
68V-24454-00-00 Spring．スプリング; |
68V-24454-00-00 |
from US $10.48 |
||
|
18
|
18
63P-13131-00-00 Plunger．プランジヤ; |
63P-13131-00-00 |
from US $25.50 |
||
|
19
|
19
68V-24423-00-00 Spring, Diaphragm．スプリング，ダイヤフラム; |
68V-24423-00-00 |
from US $10.63 |
||
|
20
|
20
68V-24411-00-00 Diaphragm．ダイヤフラム; |
68V-24411-00-00 |
from US $47.53 |
||
|
21
|
21
68V-24374-00-00 Pin．ピン; |
68V-24374-00-00 |
from US $3.26 |
||
|
22
|
22
68V-24413-00-00 Body 2．ボデー ２; |
68V-24413-00-00 |
from US $79.17 |
||
|
23
|
23
6D8-24414-00-00 Body 3．ボデー ３; |
6D8-24414-00-00 |
from US $10.48 |
||
|
24
|
24
68V-24444-00-00 Screw．スクリユ; |
68V-24444-00-00 |
from US $3.26 |
||
|
25
|
25
68V-24149-00-00 Nut．ナツト; |
68V-24149-00-00 |
from US $3.26 |
||
|
26
|
26
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
26
|
26
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
26
|
26
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
27
|
27
93210-30682-00 O-RingＯ−リング; |
93210-30682-00 |
from US $3.83 |
||
| replacement | |||||
|
27
|
27
93210-29198-00 O-RingＯ−リング; |
93210-29198-00 |
from US $3.32 |
||
|
28
|
28
90119-06M83-00 Bolt, With Washer |
90119-06M83-00 |
US $3.68 |
||
|
29
|
29
6R3-24377-00-00 Pipe, Joint 2パイプ，ジヨイント ３; |
6R3-24377-00-00 |
from US $5.24 |
||
|
30
|
30
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
30
|
30
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
30
|
30
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
31
|
31
61H-2819R-01-00 Tag, Warning |
61H-2819R-01-00 |
US $8.93 |
||
|
32
|
32
67F-28100-01-00 Tool Kitツールキツト; |
67F-28100-01-00 |
US $55.13 |
||
| replacement | |||||
|
32
|
32
67F-28100-03-00 Tool Kitツールキツト; |
67F-28100-03-00 |
from US $55.13 |
||
