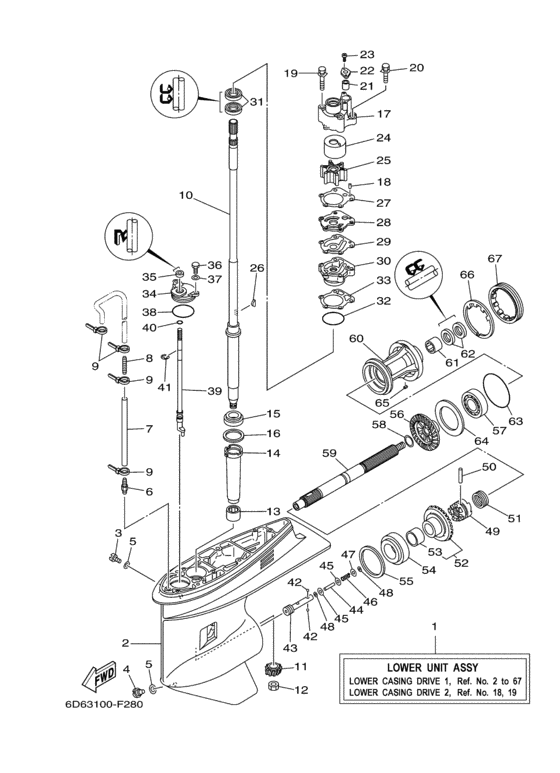

Lower casing drive Diagram Yamaha F90 TL/XR
- Year
- 2008
- Model
- F90
- Year
- 2008
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6D9-45300-11-8D
Lower Unit Assy (L)
|
6D9-45300-11-8D |
— | ||
| replacements | |||||
|
1
|
1
6D9-45300-13-8D
Lower Unit Assy
|
6D9-45300-13-8D |
— | ||
|
1
|
1
6D9-45300-14-8D
Lower Unit Assy
|
6D9-45300-14-8D |
— | ||
|
1
|
1
6D9-45300-15-8D LOWER UNIT ASSY (L) |
6D9-45300-15-8D |
from US $3,194.54 |
||
|
1
|
1
6D9-45300-15-8D LOWER UNIT ASSY (L) |
6D9-45300-15-8D |
from US $3,194.54 |
||
|
2
|
2
67F-45301-00-8D Casing, Lower |
67F-45301-00-8D |
from US $1,261.92 |
||
|
3
|
3
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
4
|
4
688-45341-10-00 Plug, Drain |
688-45341-10-00 |
from US $7.37 |
||
|
5
|
5
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
6
|
6
6E5-45378-00-00 Nipple, Hose |
6E5-45378-00-00 |
from US $4.30 |
||
|
7
|
7
904-4507M-31-00
Hose (L200)
|
904-4507M-31-00 |
— | ||
| replacement | |||||
|
7
|
7
90445-07M19-00 Hose (L200) |
90445-07M19-00 |
from US $2.27 |
||
|
8
|
8
6E5-83558-10-00 End, Nipple |
6E5-83558-10-00 |
from US $6.23 |
||
|
9
|
9
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
9
|
9
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
9
|
9
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
10
|
10
67F-45501-10-00 Drive Shaft Comp (L) |
67F-45501-10-00 |
from US $395.78 |
||
|
11
|
11
6D9-45551-00-00
Pinion (13T)
13T |
6D9-45551-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99040-29-00 Pinion & gear set13T |
999-99040-29-00 |
from US $534.60 |
||
|
12
|
12
90170-16M01-00 Nut |
90170-16M01-00 |
from US $5.30 |
||
|
13
|
13
93315-52563-00 Bearing |
93315-52563-00 |
from US $55.68 |
||
|
14
|
14
688-45536-01-00 Sleeve, Drive Shaft |
688-45536-01-00 |
from US $19.13 |
||
|
15
|
15
93332-000U3-00 Bearing |
93332-000U3-00 |
from US $26.46 |
||
|
16
|
16
688-45587-01-00 Shim (T:0.10Mm) |
688-45587-01-00 |
from US $1.34 |
||
|
16
|
16
688-45587-10-00 Shim (T:0.12Mm) |
688-45587-10-00 |
from US $5.09 |
||
|
16
|
16
688-45587-20-00 Shim (T:0.15Mm) |
688-45587-20-00 |
from US $1.34 |
||
|
16
|
16
688-45587-30-00 Shim (T:0.18Mm) |
688-45587-30-00 |
from US $1.34 |
||
|
16
|
16
688-45587-40-00 Shim (T:0.30Mm) |
688-45587-40-00 |
from US $5.09 |
||
|
16
|
16
688-45587-50-00 Shim (T:0.40Mm) |
688-45587-50-00 |
from US $5.09 |
||
|
16
|
16
688-45587-60-00 Shim (T:0.50Mm) |
688-45587-60-00 |
from US $1.34 |
||
|
17
|
17
67F-44311-01-00 Housing, Water Pump |
67F-44311-01-00 |
from US $14.88 |
||
|
18
|
18
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.66 |
||
|
19
|
19
90119-08M87-00 Bolt, With Washer |
90119-08M87-00 |
US $10.77 |
||
|
20
|
20
90119-08M13-00 Bolt, With Washer |
90119-08M13-00 |
from US $6.09 |
||
|
21
|
21
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.83 |
||
|
22
|
22
90480-19M06-00 Grommet |
90480-19M06-00 |
from US $4.53 |
||
|
23
|
23
90160-04006-00 Screw, Round Tapping |
90160-04006-00 |
from US $1.84 |
||
|
24
|
24
67F-44322-00-00 Insert, Cartridge |
67F-44322-00-00 |
from US $16.15 |
||
|
25
|
25
67F-44352-00-00 Impeller |
67F-44352-00-00 |
from US $38.96 |
||
|
26
|
26
902-8004M-04-00 Key, Woodruff |
902-8004M-04-00 |
from US $7.94 |
||
|
27
|
27
688-44315-A0-00 Gasket, Water Pump |
688-44315-A0-00 |
from US $3.64 |
||
|
28
|
28
67F-44323-00-00 Outer Plate, Cartridge |
67F-44323-00-00 |
from US $10.42 |
||
|
29
|
29
688-44324-A0-00 Gasket, Cartridge |
688-44324-A0-00 |
from US $3.32 |
||
|
30
|
30
6D8-44341-00-94 Housing, Water Pump |
6D8-44341-00-94 |
US $69.22 |
||
| replacement | |||||
|
30
|
30
6D8-WS443-00-00 Housing, Water Pump Set |
6D8-WS443-00-00 |
from US $69.22 |
||
|
31
|
31
931-0125M-03-00 Oil Seal |
931-0125M-03-00 |
from US $4.30 |
||
|
32
|
32
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.55 |
||
|
33
|
33
688-44316-A0-00 Gasket, Water Pump |
688-44316-A0-00 |
from US $3.32 |
||
|
34
|
34
688-45321-00-00 Plate |
688-45321-00-00 |
from US $3.54 |
||
|
35
|
35
931-06090-14-00 Oil Seal |
931-06090-14-00 |
from US $2.98 |
||
|
36
|
36
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
36
|
36
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
37
|
37
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
37
|
37
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.70 |
||
|
39
|
39
67F-44150-01-00 Shift Cam Assy |
67F-44150-01-00 |
from US $186.52 |
||
|
40
|
40
93210-07003-00 O-Ring |
93210-07003-00 |
from US $1.56 |
||
| replacement | |||||
|
40
|
40
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.56 |
||
|
41
|
41
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
42
|
42
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
43
|
43
67F-45634-00-00 Slide, Shift |
67F-45634-00-00 |
from US $88.15 |
||
|
44
|
44
6H1-45668-00-00 Shaft, Free 1 |
6H1-45668-00-00 |
from US $2.66 |
||
|
45
|
45
6H1-45635-00-00 Plunger, Shift |
6H1-45635-00-00 |
from US $19.84 |
||
|
46
|
46
90501-12M48-00 Spring, Compression |
90501-12M48-00 |
from US $3.68 |
||
|
47
|
47
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
48
|
48
90183-02M03-00 Nut, Spring |
90183-02M03-00 |
from US $1.34 |
||
|
49
|
49
6D8-45631-00-00 Clutch, Dog |
6D8-45631-00-00 |
from US $135.40 |
||
|
50
|
50
90250-07M02-00 Pin, Straight |
90250-07M02-00 |
from US $2.66 |
||
|
51
|
51
688-45633-00-00 Ring, Cross Pin |
688-45633-00-00 |
from US $1.34 |
||
|
52
|
52
67F-45560-00-00
Gear 1 (30T)
30T |
67F-45560-00-00 |
— | ||
| replacement | |||||
|
52
|
52
999-99040-29-00 Pinion & gear set30T |
999-99040-29-00 |
from US $534.60 |
||
|
53
|
53
93317-322V0-00 Bearing |
93317-322V0-00 |
from US $26.21 |
||
|
54
|
54
93332-000UD-00 Bearing |
93332-000UD-00 |
from US $127.62 |
||
|
55
|
55
688-45567-01-00 Shim (T:0.10Mm) |
688-45567-01-00 |
from US $2 |
||
|
55
|
55
688-45567-10-00 Shim (T:0.12Mm) |
688-45567-10-00 |
from US $1.66 |
||
|
55
|
55
688-45567-20-00 Shim (T:0.15Mm) |
688-45567-20-00 |
from US $6.52 |
||
|
55
|
55
688-45567-30-00 Shim (T:0.18Mm) |
688-45567-30-00 |
from US $2 |
||
|
55
|
55
688-45567-40-00 Shim (T:0.30Mm) |
688-45567-40-00 |
from US $2 |
||
|
55
|
55
688-45567-50-00 Shim (T:0.40Mm) |
688-45567-50-00 |
from US $1.66 |
||
|
55
|
55
688-45567-60-00 Shim (T:0.50Mm) |
688-45567-60-00 |
from US $2.32 |
||
|
56
|
56
6D9-45571-00-00
Gear 2 (30T)
30T |
6D9-45571-00-00 |
— | ||
| replacement | |||||
|
56
|
56
999-99040-29-00 Pinion & gear set30T |
999-99040-29-00 |
from US $534.60 |
||
|
57
|
57
933-06207-U0-00 Bearing |
933-06207-U0-00 |
from US $26.46 |
||
|
58
|
58
90201-25M05-00 Washer, Plate |
90201-25M05-00 |
from US $4.64 |
||
|
59
|
59
67F-45611-01-00 Shaft, Propeller |
67F-45611-01-00 |
from US $306.72 |
||
|
60
|
60
67F-45331-00-94 Housing, Bearing |
67F-45331-00-94 |
US $163.03 |
||
| replacement | |||||
|
60
|
60
67F-45331-00-CA Housing, Bearing |
67F-45331-00-CA |
from US $163.03 |
||
|
61
|
61
93317-325U0-00 Bearing |
93317-325U0-00 |
from US $16.54 |
||
|
62
|
62
931-0125M-03-00 Oil Seal |
931-0125M-03-00 |
from US $4.30 |
||
|
63
|
63
932-1086M-39-00 O-Ring |
932-1086M-39-00 |
from US $7.62 |
||
|
64
|
64
67F-45576-00-00 Washer, Thrust 2 |
67F-45576-00-00 |
from US $14.17 |
||
|
65
|
65
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.40 |
||
|
66
|
66
688-45383-02-00 Washer, Claw |
688-45383-02-00 |
from US $10.58 |
||
|
67
|
67
688-45384-00-00 Nut |
688-45384-00-00 |
US $41.59 |
||
| replacement | |||||
|
67
|
67
688-45384-02-00 Nut |
688-45384-02-00 |
from US $19.18 |
||
