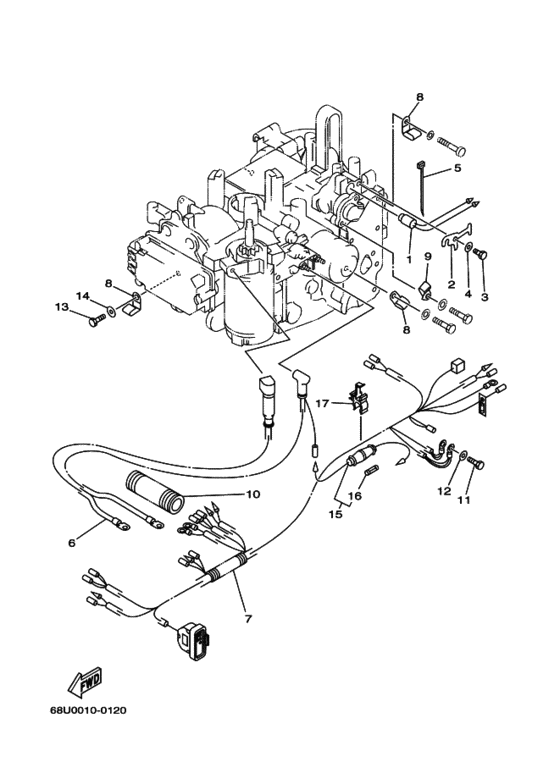

Electrical 2 Diagram Yamaha FT25 E(H/D/T)L/X
- Year
- 2003
- Model
- FT25B
- Model code
- 68U
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-85790-00-00 Thermosensor Assyサーモセンサアセンブリ; |
65W-85790-00-00 |
from US $73.10 |
||
|
2
|
2
65W-85757-00-00 Retainerリテーナ; |
65W-85757-00-00 |
from US $11.62 |
||
|
3
|
3
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
3
|
3
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
4
|
4
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
5
|
5
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
5
|
5
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
6
|
6
65W-82105-J0-00 Wire Harnessワイヤハーネス; |
65W-82105-J0-00 |
US $229.35 |
||
|
7
|
7
65W-82590-00-00 Wire Harness Assyワイヤハーネスアセンブリ; |
65W-82590-00-00 |
US $207.96 |
||
|
8
|
8
90465-08M08-00 Clamp |
90465-08M08-00 |
from US $11.05 |
||
|
9
|
9
90465-06M88-00 Clamp |
90465-06M88-00 |
from US $8.05 |
||
|
10
|
10
6N7-83557-00-00 Tube (I.dia:22Mm)チユーブ; |
6N7-83557-00-00 |
from US $4.11 |
||
|
11
|
11
97095-06016-00 Boltボルト; |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.52 |
||
|
12
|
12
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
970-95050-16-00 Boltボルト; |
970-95050-16-00 |
from US $1.55 |
||
|
14
|
14
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
15
|
15
6G8-82150-00-00 Fuse Holder Assyフユーズホルダアセンブリ; |
6G8-82150-00-00 |
US $20.83 |
||
|
16
|
16
663-82151-00-00 Fuse (12V-20A)．フユーズ ; １２Ｖ−２０Ａ |
663-82151-00-00 |
US $1.81 |
||
| replacements | |||||
|
16
|
16
682-82151-01-00 Fuse (20A)．フユーズ ; １２Ｖ−２０Ａ |
682-82151-01-00 |
US $1.81 |
||
|
16
|
16
682-82151-02-00 FUSE．フユーズ ; １２Ｖ−２０Ａ |
682-82151-02-00 |
from US $1.81 |
||
|
17
|
17
6G5-82152-00-00 Holder, Fuseホルダ，フユーズ; |
6G5-82152-00-00 |
from US $2.36 |
||
