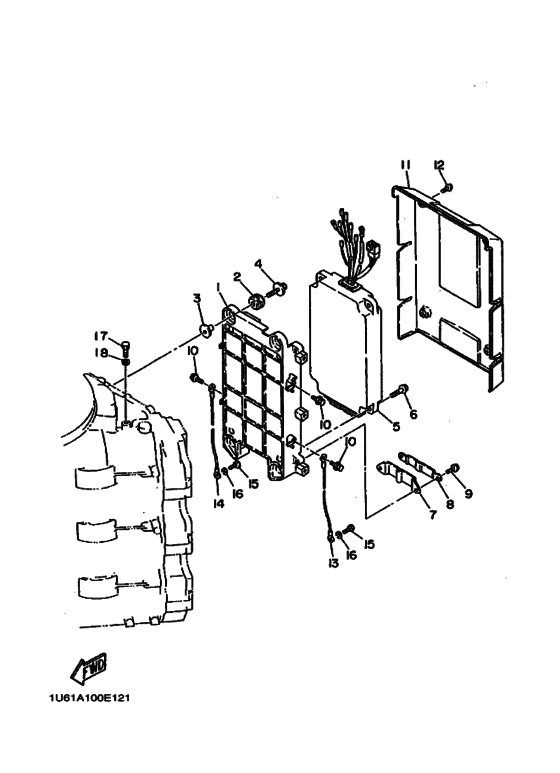

Electrical 1 Diagram Yamaha L250 ETOX
- Year
- 1996
- Model
- L250A
- Model code
- 61B
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-85542-00-94 Bracket |
61A-85542-00-94 |
US $119.51 |
||
| replacements | |||||
|
1
|
1
61A-85542-01-94 Bracket |
61A-85542-01-94 |
US $119.51 |
||
|
1
|
1
61A-85542-01-00 Bracket |
61A-85542-01-00 |
from US $76.44 |
||
|
2
|
2
90480-09M12-00 Grommet |
90480-09M12-00 |
from US $2.36 |
||
|
3
|
3
90387-06M03-00 Collar |
90387-06M03-00 |
from US $5.81 |
||
|
4
|
4
90119-06M28-00 Bolt, With Washer |
90119-06M28-00 |
from US $4.39 |
||
| replacements | |||||
|
4
|
4
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
4
|
4
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.86 |
||
|
5
|
5
62J-85540-01-00 C.d.i. Unit Assembly |
62J-85540-01-00 |
US $2,071.70 |
||
| replacement | |||||
|
5
|
5
62J-85540-02-00 C.d.i. Unit Assy |
62J-85540-02-00 |
from US $1,215.87 |
||
|
6
|
6
97513-06525-00 Bolt, With Washer |
97513-06525-00 |
from US $1.84 |
||
|
7
|
7
61A-85548-00-00 Holder |
61A-85548-00-00 |
from US $10.94 |
||
|
8
|
8
61A-85525-00-00 Cover |
61A-85525-00-00 |
from US $11.48 |
||
|
9
|
9
97595-06516-00 Bolt, With Washer |
97595-06516-00 |
US $3.05 |
||
| replacement | |||||
|
9
|
9
90119-06M41-00 Bolt, With Washer |
90119-06M41-00 |
from US $2.74 |
||
|
10
|
10
97513-06514-00 Bolt, With Washer |
97513-06514-00 |
US $2.41 |
||
| replacements | |||||
|
10
|
10
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
10
|
10
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
10
|
10
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
11
|
11
61A-85537-00-00 Cover |
61A-85537-00-00 |
from US $77.92 |
||
|
12
|
12
90159-06M03-00 Screw, With Washer |
90159-06M03-00 |
from US $1.70 |
||
|
13
|
13
61A-82519-00-00 Wire, Earth Lead |
61A-82519-00-00 |
US $13.32 |
||
| replacement | |||||
|
13
|
13
6R3-82519-00-00 Wire, Earth Lead |
6R3-82519-00-00 |
from US $13.32 |
||
|
14
|
14
6G0-82519-00-00 Wire, Earth Lead |
6G0-82519-00-00 |
US $13.32 |
||
| replacement | |||||
|
14
|
14
6R3-82519-00-00 Wire, Earth Lead |
6R3-82519-00-00 |
from US $13.32 |
||
|
15
|
15
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
