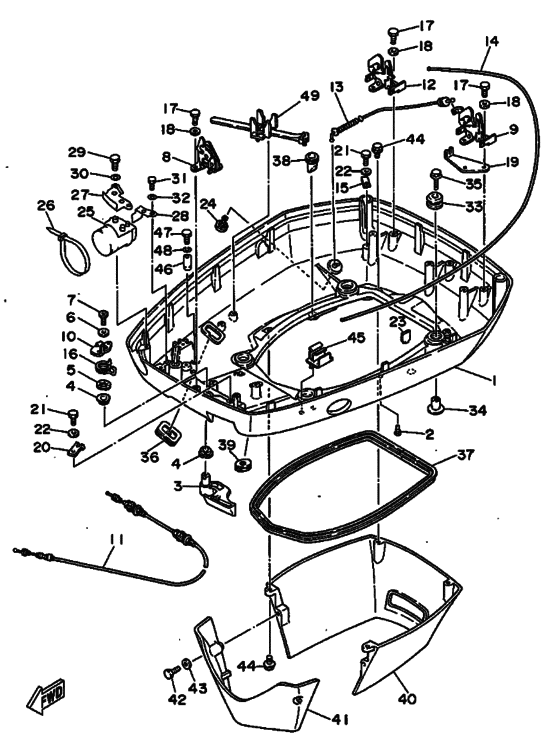

Bottom cowling Diagram Yamaha L250 ETOX
- Year
- 1997
- Model
- L250A
- Model code
- 61B
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 250
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61A-42711-04-8D
Cowling, Bottom 1
|
61A-42711-04-8D |
— | ||
| replacement | |||||
|
1
|
1
999-99031-00-00
Bottom Cowl
|
999-99031-00-00 |
— | ||
|
2
|
2
90480-06M19-00 Grommet |
90480-06M19-00 |
from US $3.12 |
||
|
3
|
3
61A-42815-01-8D Lever, Clamp |
61A-42815-01-8D |
US $32.01 |
||
|
4
|
4
90386-13M88-00 Bush |
90386-13M88-00 |
from US $4.68 |
||
|
5
|
5
90206-13M10-00 Washer, Wave |
90206-13M10-00 |
from US $2.69 |
||
|
6
|
6
90201-06M30-00 Washer, Plate |
90201-06M30-00 |
from US $1.70 |
||
|
7
|
7
90109-06M50-00 Bolt |
90109-06M50-00 |
from US $4.39 |
||
|
8
|
8
6R3-42824-00-00 Base, Clamp Lever |
6R3-42824-00-00 |
from US $76.96 |
||
|
9
|
9
6R3-42811-01-00 Stay |
6R3-42811-01-00 |
from US $66.22 |
||
|
10
|
10
6R3-42816-00-00 Lever, Clamp |
6R3-42816-00-00 |
from US $27.43 |
||
|
11
|
11
6R3-42850-10-00 Wire Complete |
6R3-42850-10-00 |
from US $80.41 |
||
|
12
|
12
6R3-42811-10-00 Stay |
6R3-42811-10-00 |
from US $71.29 |
||
|
13
|
13
61A-42850-01-00 Wire Complete |
61A-42850-01-00 |
from US $53.05 |
||
|
14
|
14
61A-42850-20-00 Wire Complete |
61A-42850-20-00 |
from US $53.05 |
||
|
15
|
15
682-44117-00-00 Bracket |
682-44117-00-00 |
from US $3.52 |
||
|
16
|
16
6R3-42813-00-00 Spring, Clamp Lever |
6R3-42813-00-00 |
from US $6.94 |
||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
6N7-42828-00-00 Plate, Clamp |
6N7-42828-00-00 |
from US $10.77 |
||
|
20
|
20
6R3-42828-00-00 Plate, Clamp |
6R3-42828-00-00 |
from US $2.98 |
||
|
21
|
21
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
21
|
21
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
6N7-42841-00-00
Mark, Clamp
|
6N7-42841-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
25
|
25
61A-42725-12-00 Grommet |
61A-42725-12-00 |
US $28.34 |
||
|
26
|
26
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
26
|
26
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.34 |
||
|
27
|
27
61A-42738-02-5B Plate, Fitting |
61A-42738-02-5B |
US $16.29 |
||
| replacement | |||||
|
27
|
27
61A-42738-02-8D Plate, Fitting |
61A-42738-02-8D |
from US $16.29 |
||
|
28
|
28
64D-42738-10-5B Plate, Fitting |
64D-42738-10-5B |
US $16.29 |
||
| replacement | |||||
|
28
|
28
64D-42738-11-00 Plate, Fitting |
64D-42738-11-00 |
from US $11.14 |
||
|
29
|
29
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
29
|
29
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
31
|
31
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
31
|
31
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
32
|
32
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
33
|
33
90480-22M15-00 Grommet |
90480-22M15-00 |
from US $5.67 |
||
|
34
|
34
90387-08M37-00 Collar |
90387-08M37-00 |
from US $7.62 |
||
|
35
|
35
90119-08M22-00 Bolt, With Washer |
90119-08M22-00 |
from US $3.60 |
||
| replacement | |||||
|
35
|
35
901-19081-87-00 BOLT WITH WASHER |
901-19081-87-00 |
from US $5.64 |
||
|
36
|
36
688-42726-10-00 Grommet |
688-42726-10-00 |
US $4.11 |
||
|
37
|
37
61A-42716-00-00 Rubber, Seal 1 |
61A-42716-00-00 |
US $58.30 |
||
|
38
|
38
61A-42717-00-00 Rubber, Seal 2 |
61A-42717-00-00 |
from US $3.32 |
||
|
39
|
39
61A-42727-00-00 Grommet |
61A-42727-00-00 |
US $4.82 |
||
|
40
|
40
61A-42741-01-8D Apron |
61A-42741-01-8D |
from US $244.54 |
||
|
41
|
41
61A-42771-01-80
Apron
|
61A-42771-01-80 |
— | ||
|
42
|
42
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
42
|
42
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
43
|
43
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
44
|
44
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
44
|
44
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
44
|
44
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
45
|
45
6E5-82594-00-00 Clamp |
6E5-82594-00-00 |
from US $6.52 |
||
|
46
|
46
6E5-82588-00-00 Plate |
6E5-82588-00-00 |
from US $5.67 |
||
|
47
|
47
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
47
|
47
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
48
|
48
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
49
|
49
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $3.64 |
||
