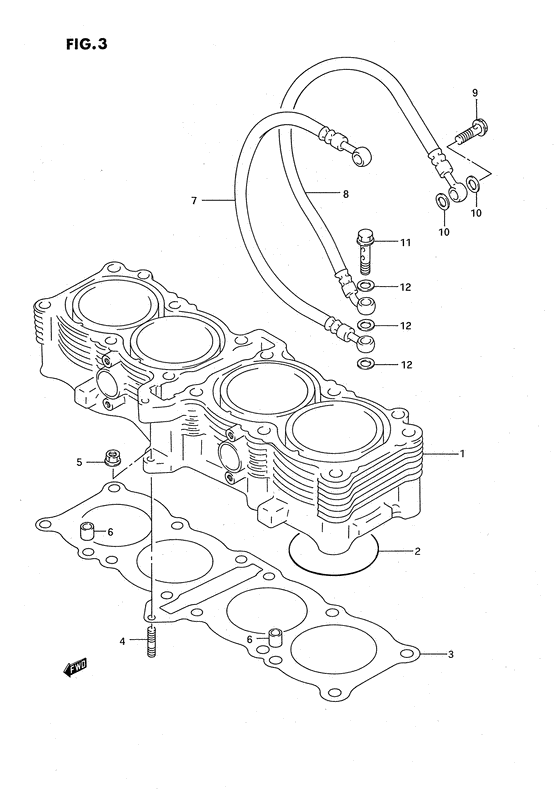

Cylinder Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11210-17E20-000
Cylinder
|
11210-17E20-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-17E01-000
CYLINDER
|
11200-17E01-000 |
— | ||
|
2
|
2
09280-75004-000 O ring |
09280-75004-000 |
US $23.31 |
||
| replacement | |||||
|
2
|
2
09280-71004-000 O RING(D:2.6,ID:69.6) |
09280-71004-000 |
from US $7.20 |
||
|
3
|
3
11241-17E00-000 GASKET,CYLINDER |
11241-17E00-000 |
US $24.08 |
||
|
4
|
4
01421-06203-000
Stud bolt (l:20)(green)
Stud bolt; |
01421-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0620A-000 BOLT,STUDStud bolt; |
01421-0620A-000 |
from US $1.12 |
||
|
5
|
5
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
04211-11189-000 PINPin; |
04211-11189-000 |
from US $1.12 |
||
|
7
|
7
11281-17E01-000
HOSE,OIL,R
|
11281-17E01-000 |
— | ||
|
8
|
8
11282-17E01-000
HOSE,OIL,L
|
11282-17E01-000 |
— | ||
|
9
|
9
11284-17E00-000
Bolt,oil pipe u
Bolt, oil hose union; |
11284-17E00-000 |
— | ||
| replacement | |||||
|
9
|
9
09360-08013-000 UNIONBolt, oil hose union; |
09360-08013-000 |
from US $13.58 |
||
|
10
|
10
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
11
|
11
11285-32C00-000
Bolt,oil pipe u
Bolt, oil hose union; |
11285-32C00-000 |
— | ||
| replacement | |||||
|
11
|
11
09360-10052-000 UNIONBolt, oil hose union; |
09360-10052-000 |
US $127.70 |
||
|
12
|
12
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
