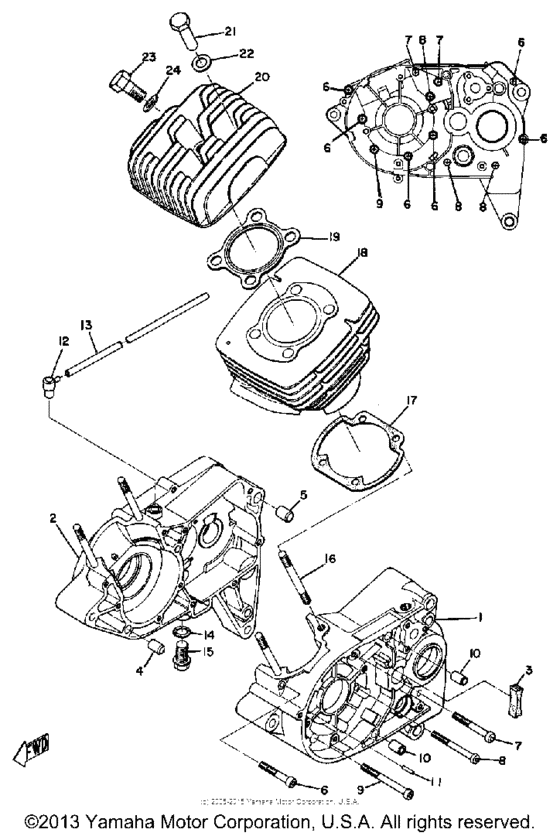

Crankcase Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-15111-02-00
Crankcase 1
PN251 |
248-15111-02-00 |
— | ||
|
2
|
2
444-15121-01-00
Crankcase 2
SEE NOTE |
444-15121-01-00 |
— | ||
|
3
|
3
248-15357-00-00 Grommet |
248-15357-00-00 |
from US $4.39 |
||
|
4
|
4
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
4
|
4
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
4
|
4
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
5
|
5
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
5
|
5
90340-12005-00 Plug Straigtscrew 132153510000132-15351-00 |
90340-12005-00 |
from US $1.70 |
||
|
6
|
6
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
7
|
7
98580-06055-00 Screw,panhead |
98580-06055-00 |
US $3.40 |
||
| replacement | |||||
|
7
|
7
98580-06555-00 Screw, Panhed (Gc2) |
98580-06555-00 |
from US $3.40 |
||
|
8
|
8
98580-06565-00 Screw, Pan Head |
98580-06565-00 |
from US $7.23 |
||
|
9
|
9
985-01060-70-00
Screw Pan Head
|
985-01060-70-00 |
— | ||
| replacement | |||||
|
9
|
9
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
10
|
10
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
10
|
10
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
10
|
10
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
11
|
11
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $1.98 |
||
|
12
|
12
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.34 |
||
|
13
|
13
904-46072-41-00 Hose (3Ak)3AK |
904-46072-41-00 |
from US $3.40 |
||
|
14
|
14
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
15
|
15
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
16
|
16
90116-08064-00 Bolt, Stud |
90116-08064-00 |
from US $3.64 |
||
|
17
|
17
248-11351-00-00 Gasket, Cylinder |
248-11351-00-00 |
from US $8.78 |
||
| replacement | |||||
|
17
|
17
1WE-11351-00-00 Gasket, Cylinder |
1WE-11351-00-00 |
from US $6.76 |
||
|
18
|
18
248-11311-00-00
Cylinder 1
|
248-11311-00-00 |
— | ||
|
18
|
18
248-11311-70-00
Cylinder 1
|
248-11311-70-00 |
— | ||
|
19
|
19
248-11181-00-00 Gasket, Cylinder Head 1 |
248-11181-00-00 |
from US $16.43 |
||
|
20
|
20
248-11111-02-00
Head, Cylinder 1
1855 |
248-11111-02-00 |
— | ||
|
20
|
20
248-11111-71-00
Head, Cylinder 1
|
248-11111-71-00 |
— | ||
|
21
|
21
901-79083-03-00 Nut |
901-79083-03-00 |
from US $7.65 |
||
|
22
|
22
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
23
|
23
903-40140-22-00
Plug, Straight Scrw (214-11197-
214-11197- 1855 AT1E PN251 |
903-40140-22-00 |
— | ||
|
24
|
24
214-11198-01-00 Washer-gasket1855AT1E PN251 |
214-11198-01-00 |
from US $1.66 |
||
|
24
|
24
248-00000-20-00
Gasket Kit At1
|
248-00000-20-00 |
— | ||
