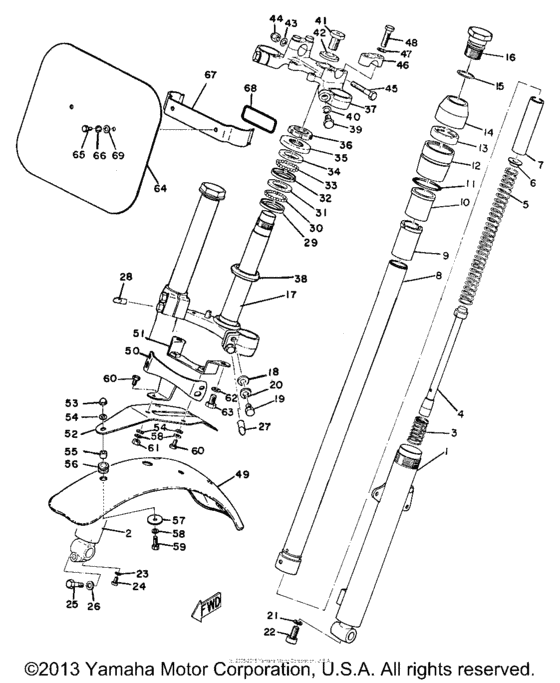

Front fork & front fender Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-23126-00-35
Tube, Outer 1
SILVER |
248-23126-00-35 |
— | ||
|
1
|
1
263-23101-02-35
Front Fork Assembly
|
263-23101-02-35 |
— | ||
|
2
|
2
248-23136-00-35
Tube, Outer 2
SILVER |
248-23136-00-35 |
— | ||
|
3
|
3
248-23152-00-00
Spring, Sub
|
248-23152-00-00 |
— | ||
|
4
|
4
248-23170-01-00
Cylinder, Frtfrk
|
248-23170-01-00 |
— | ||
|
5
|
5
318-23141-00-00
Spring, Front Fork
|
318-23141-00-00 |
— | ||
|
6
|
6
248-23142-00-00
Seat, Spring Upper
|
248-23142-00-00 |
— | ||
|
7
|
7
248-23118-00-00
Spacer
|
248-23118-00-00 |
— | ||
|
8
|
8
248-23124-00-00
Tube, Inner 1
|
248-23124-00-00 |
— | ||
|
9
|
9
248-23166-00-00
Spacer, Oil Lock
|
248-23166-00-00 |
— | ||
|
10
|
10
137-23125-01-00
Metal, Slide 1
|
137-23125-01-00 |
— | ||
|
11
|
11
137-23147-00-00
O-Ring
|
137-23147-00-00 |
— | ||
|
12
|
12
193-23150-40-00
Outer Nut
|
193-23150-40-00 |
— | ||
|
13
|
13
137-23145-01-00 Oil Seal |
137-23145-01-00 |
from US $47.66 |
||
|
14
|
14
248-23144-00-00 Seal, Dust |
248-23144-00-00 |
from US $35.20 |
||
|
15
|
15
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
16
|
16
2K5-23111-00-00
Bolt, Cap
|
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
248-23340-51-33
Under Bracket
|
248-23340-51-33 |
— | ||
|
18
|
18
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
19
|
19
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
20
|
20
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
21
|
21
214-23158-00-00
Gasket
|
214-23158-00-00 |
— | ||
|
22
|
22
913-11080-20-00
Bolt, Hexagon Socket Head
|
913-11080-20-00 |
— | ||
| replacement | |||||
|
22
|
22
91314-08020-00 Bolt, Hexagon Socket Head |
91314-08020-00 |
from US $1.42 |
||
|
23
|
23
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
24
|
24
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
25
|
25
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
27
|
27
263-21581-00-00
Stay, Plate Ftng 1
|
263-21581-00-00 |
— | ||
|
28
|
28
263-21591-00-00
Stay, Plate Ftng 2
|
263-21591-00-00 |
— | ||
|
29
|
29
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
29
|
29
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
30
|
30
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
30
|
30
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
31
|
31
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
31
|
31
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
32
|
32
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $7.93 |
||
| replacement | |||||
|
32
|
32
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.93 |
||
|
33
|
33
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
33
|
33
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
34
|
34
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $8.78 |
||
| replacement | |||||
|
34
|
34
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $6.30 |
||
|
35
|
35
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
36
|
36
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
36
|
36
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
36
|
36
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
37
|
37
248-23435-03-33
Crown, Handle
|
248-23435-03-33 |
— | ||
|
38
|
38
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.25 |
||
|
39
|
39
97013-10030-00 Bolt (8J7)8J7 97303-10030-00 |
97013-10030-00 |
from US $10.06 |
||
|
40
|
40
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
41
|
41
901-01141-13-00
Bolt (214-23451-10)
214-23451-10 |
901-01141-13-00 |
— | ||
|
42
|
42
902-09140-22-00
Washer, Spec''l Shap (214-23443
214-23443 |
902-09140-22-00 |
— | ||
|
43
|
43
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
44
|
44
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 |
95303-08800-00 |
from US $3.12 |
||
|
45
|
45
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
45
|
45
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
46
|
46
315-23441-00-93
Holder, Handle Upr
|
315-23441-00-93 |
— | ||
|
47
|
47
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
48
|
48
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
48
|
48
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
48
|
48
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
48
|
48
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
49
|
49
284-21510-00-35
Fender, Front
|
284-21510-00-35 |
— | ||
|
50
|
50
284-21513-00-35
Stay, Fender 1
SILVER |
284-21513-00-35 |
— | ||
|
51
|
51
284-21514-00-35
Stay, Fender 2
SILVER |
284-21514-00-35 |
— | ||
|
52
|
52
284-21512-00-35
Bracket, Fender
|
284-21512-00-35 |
— | ||
|
53
|
53
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
53
|
53
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
54
|
54
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
55
|
55
90387-062N2-00 Collar |
90387-062N2-00 |
from US $1.42 |
||
|
56
|
56
90480-13163-00 Grommet |
90480-13163-00 |
from US $1.70 |
||
|
57
|
57
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
57
|
57
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
58
|
58
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
59
|
59
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
59
|
59
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
60
|
60
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
60
|
60
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
61
|
61
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
62
|
62
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
63
|
63
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
63
|
63
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
64
|
64
263-23485-00-00
Plate, Number
|
263-23485-00-00 |
— | ||
|
65
|
65
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
65
|
65
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
65
|
65
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.28 |
||
|
65
|
65
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
66
|
66
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
67
|
67
263-23487-00-00
Stay, Plate
|
263-23487-00-00 |
— | ||
|
68
|
68
932-10670-57-00
O-Ring
|
932-10670-57-00 |
— | ||
|
69
|
69
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
