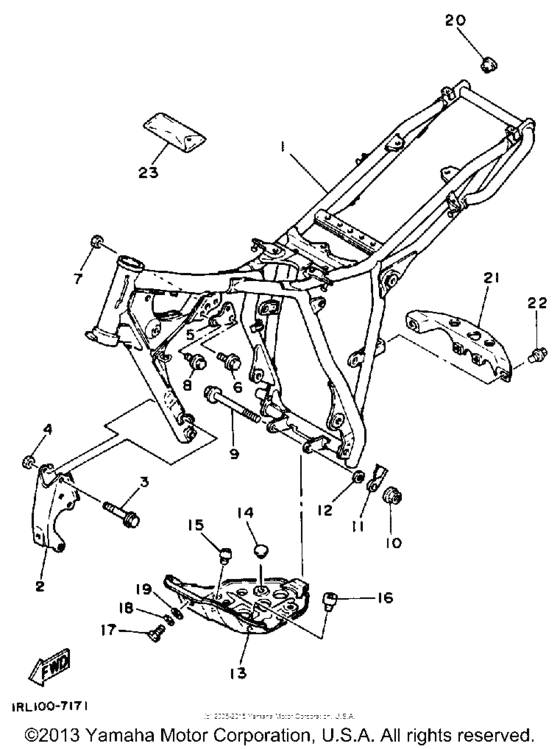

Frame Diagram Yamaha BW200 Big Wheel
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 200
- Model
- BW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RL-21110-00-FH
Frame
|
1RL-21110-00-FH |
— | ||
|
2
|
2
1RL-21316-00-FH
Stay, Engine 3
FIRE RED |
1RL-21316-00-FH |
— | ||
|
3
|
3
95811-08065-00 Bolt, Flange |
95811-08065-00 |
from US $3.02 |
||
| replacements | |||||
|
3
|
3
95814-08065-00 Bolt, Flange |
95814-08065-00 |
from US $3.89 |
||
|
3
|
3
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $5.97 |
||
|
4
|
4
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
5
|
5
36X-21315-00-00 Stay, Engine 2 |
36X-21315-00-00 |
from US $5.81 |
||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
95811-08050-00 Bolt, Flange (26H) |
95811-08050-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.66 |
||
|
7
|
7
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
8
|
8
90105-08155-00 Bolt, Flange |
90105-08155-00 |
from US $3.68 |
||
| replacements | |||||
|
8
|
8
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
8
|
8
90105-08066-00 Bolt, Flange |
90105-08066-00 |
from US $3.68 |
||
|
9
|
9
95811-08120-00 Bolt, Flange (22W) |
95811-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
9
|
9
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
10
|
10
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
10
|
10
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
10
|
10
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
11
|
11
1RL-21337-00-00 Clamp, Cable |
1RL-21337-00-00 |
from US $4.34 |
||
|
12
|
12
90185-08055-00 Nut, Self-Locking |
90185-08055-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
13
|
13
1RL-21471-00-98 Protector, Engine |
1RL-21471-00-98 |
US $92.23 |
||
|
14
|
14
128-27114-00-00 Stopper, Main Stand |
128-27114-00-00 |
from US $4.68 |
||
|
15
|
15
34L-21485-00-00 Damper, Rubber 1 |
34L-21485-00-00 |
from US $8.78 |
||
|
16
|
16
4N0-27114-00-00 Stopper, Main Stand |
4N0-27114-00-00 |
from US $4.53 |
||
|
17
|
17
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
20
|
20
90338-18122-00 Plug |
90338-18122-00 |
from US $1.63 |
||
|
21
|
21
1RL-2116A-00-00
Cover 1
|
1RL-2116A-00-00 |
— | ||
|
22
|
22
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
23
|
23
54G-28100-00-00
Tool Kit
|
54G-28100-00-00 |
— | ||
