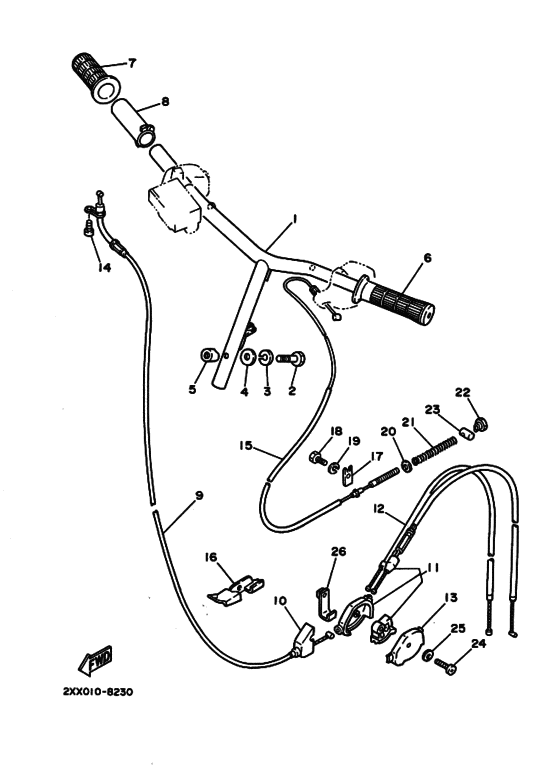

Steering handle & cable Diagram Yamaha CG80 Jog
- Year
- 1988
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 2XX1
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- A
- Model
- CG80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3CP-26110-00-00
Handle Comp
ハンドルコンプリート; |
3CP-26110-00-00 |
— | ||
|
2
|
2
90109-08507-00
Bolt
|
90109-08507-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
4
|
4
2E9-26129-00-00 Washer |
2E9-26129-00-00 |
from US $2.98 |
||
|
5
|
5
90179-08354-00
Nut, Spec''l Shape
|
90179-08354-00 |
— | ||
|
6
|
6
5G3-26241-00-00 Gripグリツプ ; レフト; ブラツク |
5G3-26241-00-00 |
US $11.45 |
||
|
7
|
7
5G3-26242-00-00 Grip (Right)グリツプ ; ライト; ブラツク |
5G3-26242-00-00 |
US $21.76 |
||
|
8
|
8
2GN-26243-00-00
Tube, Throttle Guide
チユーブ，スロツトルガイド; |
2GN-26243-00-00 |
— | ||
|
9
|
9
2XX-26311-00-00
Cable, Throttle 1
ケーブル，スロツトル １; |
2XX-26311-00-00 |
— | ||
|
10
|
10
25K-26316-00-00
Boot, Throttle Cable
ブーツ，スロツトルケーブル; |
25K-26316-00-00 |
— | ||
|
11
|
11
2XX-26260-00-00
Cable Assy, Throttle & Pump
ケーブルアセンブリ，スロツトルアンドポンプ; |
2XX-26260-00-00 |
— | ||
|
12
|
12
2XX-26312-00-00
Cable, Throttle 2
ケーブル，スロツトル ２; |
2XX-26312-00-00 |
— | ||
|
13
|
13
2T4-26262-02-00 Cap, Cble Connector (2T4-26262-キヤツプ，ケーブルコネクタ; |
2T4-26262-02-00 |
from US $9.28 |
||
|
14
|
14
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
14
|
14
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
15
|
15
2JA-26351-00-00 Cable, Brakeケーブル，ブレーキ; |
2JA-26351-00-00 |
from US $29.96 |
||
|
16
|
16
90465-30195-00
Clamp
|
90465-30195-00 |
— | ||
|
17
|
17
1YU-26393-00-00
Holder
|
1YU-26393-00-00 |
— | ||
| replacement | |||||
|
17
|
17
2EK-26393-00-00
Holder
|
2EK-26393-00-00 |
— | ||
|
18
|
18
97021-06016-00 Bolt(1Kh) |
97021-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
18
|
18
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
19
|
19
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
90202-08175-00 Washer, Plateワツシヤ，プレート; |
90202-08175-00 |
from US $1.98 |
||
|
21
|
21
90501-123E4-00 Spring, Compression |
90501-123E4-00 |
from US $1.66 |
||
|
22
|
22
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
23
|
23
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
24
|
24
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
24
|
24
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
25
|
25
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
25
|
25
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
25
|
25
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
26
|
26
14T-26398-00-00 Washer |
14T-26398-00-00 |
US $13.60 |
||
