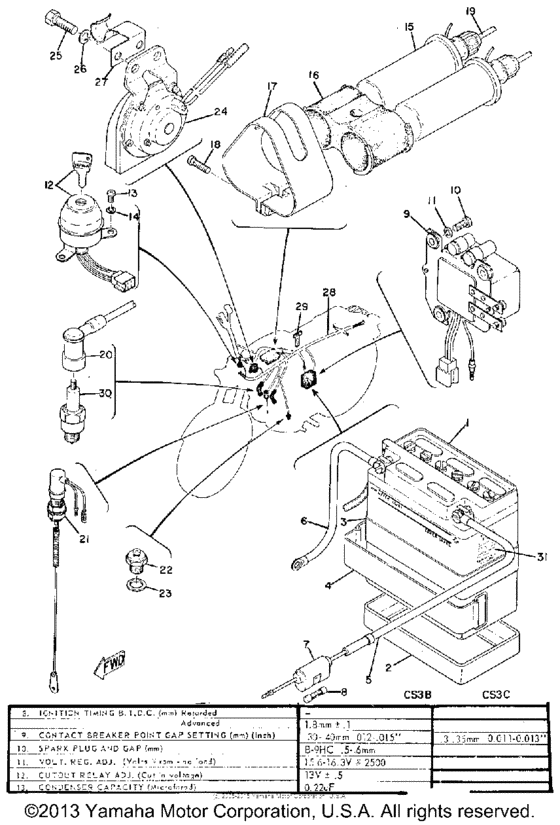

Electrical Diagram Yamaha CS3/ CS5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CS3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
104-82111-20-00
Cap, Battery
|
104-82111-20-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
BTY-12N93-A1-00
12N9-3A-1 Gs Batter
GS BATTER |
BTY-12N93-A1-00 |
— | ||
| replacement | |||||
|
1
|
1
12N-93A10-00-00
BLANK KEY
GS BATTER |
12N-93A10-00-00 |
— | ||
|
1
|
1
235-82511-10-00
Key, Main Switch
|
235-82511-10-00 |
— | ||
|
2
|
2
173-82122-00-00
Seat, Battery
|
173-82122-00-00 |
— | ||
|
3
|
3
1UA-82124-00-00
Band, Battery
|
1UA-82124-00-00 |
— | ||
|
4
|
4
26H-82131-00-00 Band, Battery |
26H-82131-00-00 |
from US $8.36 |
||
|
5
|
5
173-82115-00-00
Wire, Plus Lead
|
173-82115-00-00 |
— | ||
|
6
|
6
173-82116-00-00
Wire, Minus Lead
|
173-82116-00-00 |
— | ||
|
7
|
7
2UJ-82150-01-00 Fuse Holder Assy |
2UJ-82150-01-00 |
from US $11.76 |
||
| replacement | |||||
|
7
|
7
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
8
|
8
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
9
|
9
173-81910-20-00
Voltage Reg Assembly
|
173-81910-20-00 |
— | ||
|
10
|
10
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
10
|
10
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
237-82508-10-00
Main Switch Assembly
|
237-82508-10-00 |
— | ||
|
13
|
13
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
13
|
13
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
14
|
14
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
15
|
15
168-82310-70-00
Ignition Coil Assembly
|
168-82310-70-00 |
— | ||
|
16
|
16
168-82312-00-00
Holder, Coil Ftng
|
168-82312-00-00 |
— | ||
|
17
|
17
237-82311-00-00
Band, Coil Fitting
|
237-82311-00-00 |
— | ||
|
18
|
18
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
19
|
19
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $47.50 |
||
|
20
|
20
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
21
|
21
193-82530-01-00
Stop Switch Assembly
|
193-82530-01-00 |
— | ||
|
22
|
22
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
22
|
22
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
23
|
23
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
24
|
24
227-83371-21-00
Horn
|
227-83371-21-00 |
— | ||
|
25
|
25
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
25
|
25
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
27
|
27
904-65080-22-00
Clamp
|
904-65080-22-00 |
— | ||
|
28
|
28
237-82590-10-00
Wire Harness Assembly
|
237-82590-10-00 |
— | ||
|
29
|
29
150-82591-00-00
Band, Wire Harness
|
150-82591-00-00 |
— | ||
|
30
|
30
947-01000-33-00
Spark Plug B9Hc
B9HC |
947-01000-33-00 |
— | ||
|
31
|
31
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
31
|
31
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
