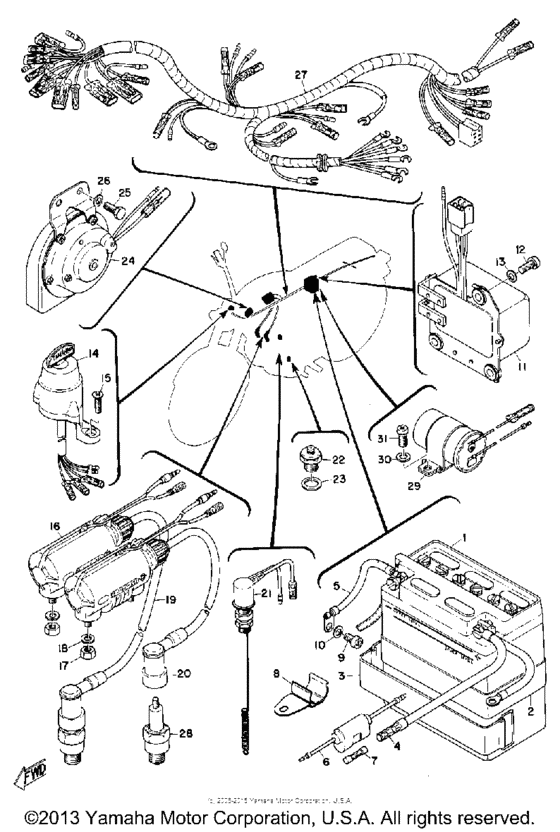

Electrical Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
104-82111-20-00
Cap, Battery
|
104-82111-20-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
BTY-12N93-A1-00
12N9-3A-1 Gs Batter
12N9-3A-1 FURUKAWA |
BTY-12N93-A1-00 |
— | ||
| replacement | |||||
|
1
|
1
12N-93A10-00-00
BLANK KEY
12N9-3A-1 FURUKAWA |
12N-93A10-00-00 |
— | ||
|
2
|
2
1UA-82124-00-00
Band, Battery
|
1UA-82124-00-00 |
— | ||
|
3
|
3
337-82131-00-00 Band, Battery |
337-82131-00-00 |
from US $17.57 |
||
|
4
|
4
337-82115-00-00
Wire, Plus Lead
|
337-82115-00-00 |
— | ||
|
5
|
5
337-82116-00-00
Wire, Minus Lead
|
337-82116-00-00 |
— | ||
|
6
|
6
2UJ-82150-01-00 Fuse Holder Assy |
2UJ-82150-01-00 |
from US $11.76 |
||
| replacement | |||||
|
6
|
6
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
7
|
7
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
8
|
8
337-82152-00-00
Holder, Fuse
|
337-82152-00-00 |
— | ||
|
9
|
9
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
337-81910-10-00
Voltage Reg Assembly
|
337-81910-10-00 |
— | ||
|
12
|
12
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
12
|
12
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
337-82508-10-00
Main Switch Assembly
|
337-82508-10-00 |
— | ||
|
15
|
15
98701-05016-00 Screw, Flat Head |
98701-05016-00 |
from US $1.42 |
||
| replacements | |||||
|
15
|
15
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
15
|
15
90151-05055-00 Screw, Countersunk(3Ac) |
90151-05055-00 |
from US $2.27 |
||
|
16
|
16
254-82310-60-00
Ignition Coil Assembly
|
254-82310-60-00 |
— | ||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $47.50 |
||
|
20
|
20
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
21
|
21
307-82530-09-00
Stop Switch Assembly
|
307-82530-09-00 |
— | ||
|
22
|
22
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
22
|
22
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
23
|
23
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
24
|
24
183-83371-21-00
Horn
|
183-83371-21-00 |
— | ||
|
25
|
25
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
25
|
25
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
337-82590-10-00
Wire Harness Assembly
|
337-82590-10-00 |
— | ||
|
28
|
28
NGK-B9HS0-00-00
B9Hs Ngk 10Pk
10PK |
NGK-B9HS0-00-00 |
— | ||
| replacements | |||||
|
28
|
28
B9H-S0000-00-00
"3/8"" X 12 DOCKLINE"
10PK |
B9H-S0000-00-00 |
— | ||
|
28
|
28
BR9-HS000-00-00 BULB, TS 12V10W10PK |
BR9-HS000-00-00 |
US $48 |
||
|
29
|
29
278-83350-71-00
Flasher Relay Assembly
|
278-83350-71-00 |
— | ||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
31
|
31
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
