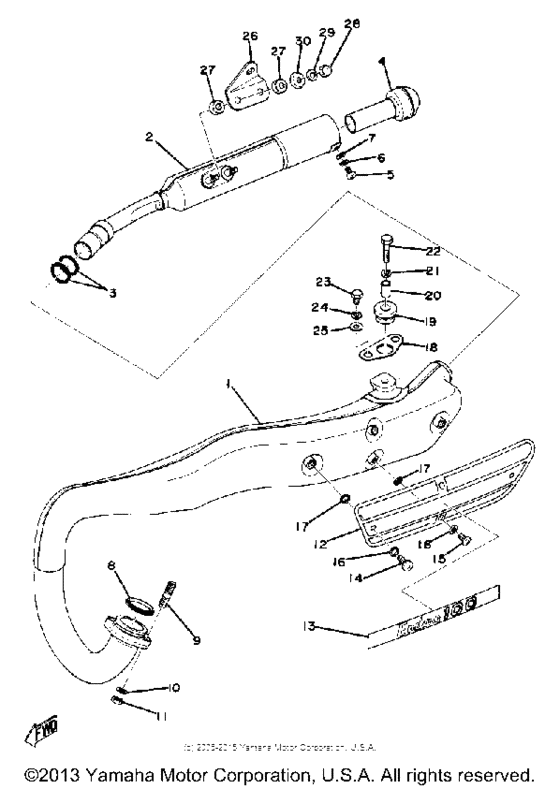

Exhaust Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
429-14610-00-00
Exhaust Pipe Assembly L
|
429-14610-00-00 |
— | ||
|
2
|
2
437-14753-02-00
Silencer, Exhaust
|
437-14753-02-00 |
— | ||
|
3
|
3
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
4
|
4
438-14752-00-00 Pipe, Outlet |
438-14752-00-00 |
from US $58.92 |
||
|
5
|
5
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
8
|
8
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
9
|
9
901-16061-46-00
Bolt, Stud (392-14651-00)
392-14651-00 |
901-16061-46-00 |
— | ||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
12
|
12
437-14718-00-00
Protector, Muff 1
|
437-14718-00-00 |
— | ||
|
13
|
13
437-14729-00-00
Emblem, Protector
|
437-14729-00-00 |
— | ||
|
13
|
13
437-14729-01-00
Emblem, Protector
|
437-14729-01-00 |
— | ||
|
14
|
14
98980-06030-00 Screw, Bind |
98980-06030-00 |
from US $1.84 |
||
|
15
|
15
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
16
|
16
90202-05005-00 Washer, Plate |
90202-05005-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
902-02051-88-00 Washer, Plate |
902-02051-88-00 |
from US $1.70 |
||
|
17
|
17
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
18
|
18
437-14771-00-00
Stay, Muffler 1
|
437-14771-00-00 |
— | ||
|
19
|
19
90480-20132-00 Grommet |
90480-20132-00 |
from US $2.91 |
||
|
20
|
20
903-87082-42-00
Collar
|
903-87082-42-00 |
— | ||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
22
|
22
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
22
|
22
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
23
|
23
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
23
|
23
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
25
|
25
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
26
|
26
437-14781-00-00
Stay, Muffler 2
|
437-14781-00-00 |
— | ||
|
27
|
27
438-14757-00-00
Damper, Muffler 2
|
438-14757-00-00 |
— | ||
|
28
|
28
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
29
|
29
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
30
|
30
902-09060-61-00
Washer, Spec''l Shap
|
902-09060-61-00 |
— | ||
