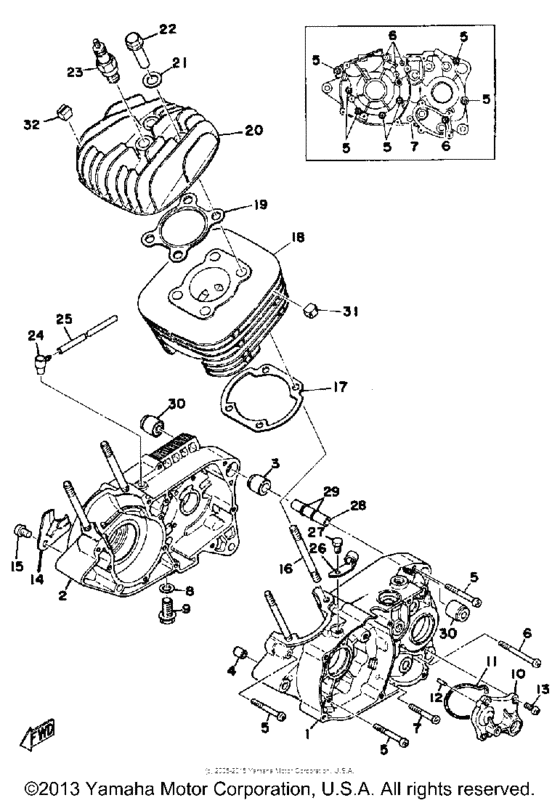

Crankcase & cylinder Diagram Yamaha DT100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
437-15111-03-00
Crankcase 1
|
437-15111-03-00 |
— | ||
|
2
|
2
437-15121-02-00
Crankcase 2
|
437-15121-02-00 |
— | ||
|
3
|
3
995-10200-20-00
Pin, Dowel
|
995-10200-20-00 |
— | ||
| replacement | |||||
|
3
|
3
995-30200-20-00 Pin, Dowel |
995-30200-20-00 |
US $2.13 |
||
|
4
|
4
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
4
|
4
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
4
|
4
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
5
|
5
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
6
|
6
925-80065-60-00
Screw, Pan Head (92580-06560-00
92580-06560-00 |
925-80065-60-00 |
— | ||
| replacement | |||||
|
6
|
6
985-80065-60-00 Screw, Pan Head (92580-06560-0092580-06560-00 |
985-80065-60-00 |
from US $7.51 |
||
|
7
|
7
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
8
|
8
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
9
|
9
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
10
|
10
437-15419-01-00 Cover, Shifter 1 |
437-15419-01-00 |
from US $67.42 |
||
|
11
|
11
401-15449-00-00 Ring, Rubber |
401-15449-00-00 |
from US $18.84 |
||
|
12
|
12
93603-12007-00 Pin, Dowel |
93603-12007-00 |
from US $1.94 |
||
|
13
|
13
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
13
|
13
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
14
|
14
304-15128-00-00 Holder |
304-15128-00-00 |
from US $7.93 |
||
|
15
|
15
98501-08012-00
Screw, Pan Head (9806-08012)
9806-08012 |
98501-08012-00 |
— | ||
| replacement | |||||
|
15
|
15
985-80080-12-00
Screw, Pan Head (9806-08012)
9806-08012 |
985-80080-12-00 |
— | ||
|
16
|
16
90116-08065-00 Bolt Stud 276113610000 |
90116-08065-00 |
from US $7.51 |
||
|
17
|
17
3UL-11351-00-00 Gasket, Cylinder |
3UL-11351-00-00 |
from US $4.96 |
||
|
18
|
18
558-11311-00-00
Cylinder 1
|
558-11311-00-00 |
— | ||
|
19
|
19
276-11181-01-00 Gasket, Cylinder Head 1 |
276-11181-01-00 |
from US $11.05 |
||
|
20
|
20
558-11111-01-00
Head, Cylinder 1 (558-11111-00)
558-11111-00 |
558-11111-01-00 |
— | ||
|
21
|
21
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
22
|
22
901-79083-03-00 Nut |
901-79083-03-00 |
from US $7.65 |
||
|
23
|
23
NGK-B7ES0-00-00
B7Es Ngk Splug 10P
10P |
NGK-B7ES0-00-00 |
— | ||
| replacement | |||||
|
23
|
23
B7E-S0000-00-00
UNI CVR XL700/ XL760
10P |
B7E-S0000-00-00 |
— | ||
|
24
|
24
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.70 |
||
|
25
|
25
90445-07176-00 Hose (L200) |
90445-07176-00 |
from US $1.82 |
||
| replacement | |||||
|
25
|
25
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $6.74 |
||
|
26
|
26
401-15441-02-00 Holder, Clutch Cable |
401-15441-02-00 |
US $15.44 |
||
|
27
|
27
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
27
|
27
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
28
|
28
401-15317-00-00 Spacer, Engine Mount |
401-15317-00-00 |
from US $11.76 |
||
|
29
|
29
93210-11073-00 O-Ring |
93210-11073-00 |
from US $1.94 |
||
|
30
|
30
328-15316-00-00
Damper, Engine Mount 1 (328-153)
328-153 |
328-15316-00-00 |
— | ||
| replacement | |||||
|
30
|
30
90388-08003-00 Damper328-153 |
90388-08003-00 |
from US $21.44 |
||
|
31
|
31
434-11161-00-00 Absorber 1 |
434-11161-00-00 |
from US $6.23 |
||
|
32
|
32
427-11161-00-00
Absorber 1
|
427-11161-00-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
