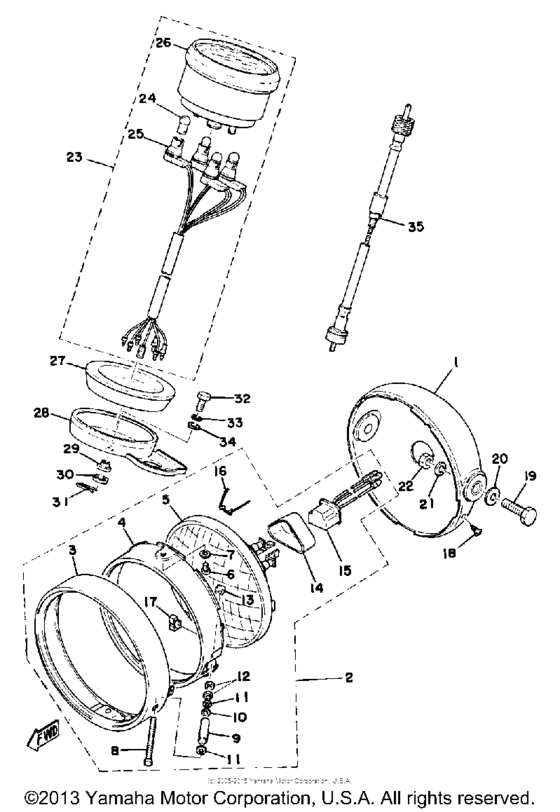

Headlight-meter Diagram Yamaha DT100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
437-84130-62-20
Body Assembly, Headlight
|
437-84130-62-20 |
— | ||
|
2
|
2
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
3
|
3
498-84115-60-00
Rim, Headlight
|
498-84115-60-00 |
— | ||
|
4
|
4
498-84195-60-00
Ring, Retaining
|
498-84195-60-00 |
— | ||
|
5
|
5
498-84120-61-00
Lens Assembly
|
498-84120-61-00 |
— | ||
|
6
|
6
438-84194-60-00
Ring, Mounting
|
438-84194-60-00 |
— | ||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $6.23 |
||
|
9
|
9
438-84133-60-00
Collar, Screw
|
438-84133-60-00 |
— | ||
|
10
|
10
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
13
|
13
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
14
|
14
341-84397-61-00
Cover, Socket
|
341-84397-61-00 |
— | ||
|
15
|
15
371-84312-60-00 Socket |
371-84312-60-00 |
from US $34.06 |
||
|
16
|
16
507-84324-60-00 Spring, Set |
507-84324-60-00 |
from US $3.12 |
||
| replacement | |||||
|
16
|
16
1UY-84124-00-00 Spring, Set |
1UY-84124-00-00 |
from US $3.12 |
||
|
17
|
17
498-84128-60-00
Spacer
|
498-84128-60-00 |
— | ||
|
18
|
18
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
19
|
19
97303-08035-00 BoltBolt,hexagon |
97303-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
19
|
19
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
20
|
20
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
22
|
22
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
22
|
22
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
23
|
23
437-83510-31-00
Speedometer Assembly
|
437-83510-31-00 |
— | ||
|
24
|
24
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S6V1CP BA9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
24
|
24
122-83516-10-XX
Bulb
6V1CP BA9S |
122-83516-10-XX |
— | ||
|
25
|
25
437-83520-30-00
Socket Cord Assembly
|
437-83520-30-00 |
— | ||
|
26
|
26
437-83513-00-00
Damper
|
437-83513-00-00 |
— | ||
|
27
|
27
438-83526-00-00
Damper 2
|
438-83526-00-00 |
— | ||
|
28
|
28
437-83519-00-00
Bracket, Meter
|
437-83519-00-00 |
— | ||
|
29
|
29
437-83523-00-00
Damper
|
437-83523-00-00 |
— | ||
|
30
|
30
437-83524-00-00
Washer, Special
|
437-83524-00-00 |
— | ||
|
31
|
31
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
32
|
32
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
32
|
32
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
32
|
32
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
32
|
32
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
33
|
33
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
34
|
34
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
35
|
35
3J0-83550-00-00 Speedometer Cable AsAS |
3J0-83550-00-00 |
from US $29.93 |
||
| replacement | |||||
|
35
|
35
1JN-83550-02-00 Speedometer Cable AssyAS |
1JN-83550-02-00 |
from US $39.79 |
||
