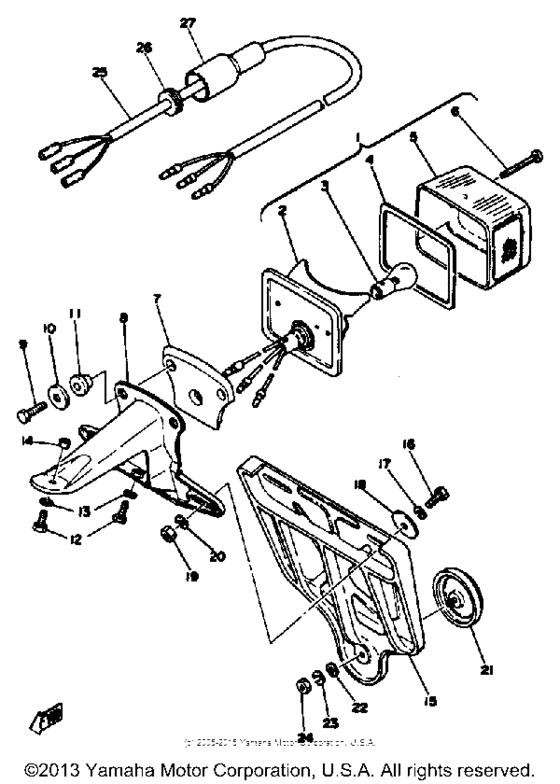

Taillight Diagram Yamaha DT100
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M1-84510-60-00
Taillight Unit Assembly
|
1M1-84510-60-00 |
— | ||
|
2
|
2
1M1-84511-60-00
Base, Taillight
|
1M1-84511-60-00 |
— | ||
|
3
|
3
1M1-84514-60-00
Bulb (6V-25/5.3W)
6VP21/5W17904 |
1M1-84514-60-00 |
— | ||
| replacement | |||||
|
3
|
3
1M1-84514-60-XX
BOLT
6VP21/5W17904 |
1M1-84514-60-XX |
— | ||
|
4
|
4
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
4
|
4
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
5
|
5
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
6
|
6
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
6
|
6
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
6
|
6
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
7
|
7
1M1-84512-60-00 Seat, Base |
1M1-84512-60-00 |
from US $10.71 |
||
|
8
|
8
1T9-84551-60-33
Bracket, Licence
|
1T9-84551-60-33 |
— | ||
|
9
|
9
1M1-84526-60-00 Bolt |
1M1-84526-60-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
10
|
10
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
11
|
11
1M1-84527-60-00 Damper |
1M1-84527-60-00 |
from US $6.52 |
||
|
12
|
12
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
15
|
15
1M1-85132-62-00
Bracket, Reflect 1
|
1M1-85132-62-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
90201-06075-00 Washer, Plate |
90201-06075-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.66 |
||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
20
|
20
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
21
|
21
1M1-85131-10-00
Reflector, Rear 1
|
1M1-85131-10-00 |
— | ||
|
22
|
22
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
23
|
23
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
24
|
24
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
25
|
25
1T9-84517-00-00
Cord, Taillight
|
1T9-84517-00-00 |
— | ||
|
25
|
25
3A3-84517-00-00
Cord, Taillight
|
3A3-84517-00-00 |
— | ||
|
26
|
26
90480-12529-00 Grommet |
90480-12529-00 |
from US $1.98 |
||
|
27
|
27
538-82599-10-00 Cover, Connecter |
538-82599-10-00 |
from US $6.80 |
||
