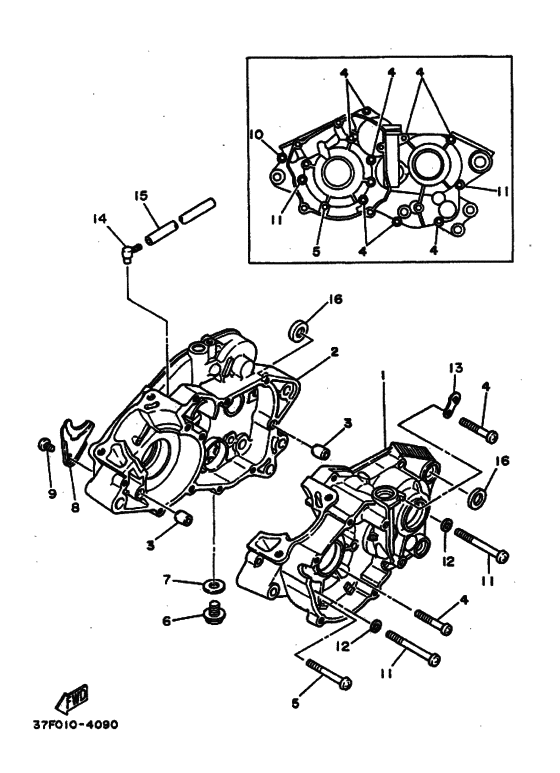

Crankcase Diagram Yamaha DT200
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 40R0
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37F-15111-00-00
Crankcase 1
|
37F-15111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
37F-15111-01-00
Crankcase 1
|
37F-15111-01-00 |
— | ||
|
2
|
2
37F-15121-00-00
Crankcase 2
|
37F-15121-00-00 |
— | ||
| replacement | |||||
|
2
|
2
37F-15121-02-00
Crankcase 2
|
37F-15121-02-00 |
— | ||
|
3
|
3
918-30220-16-00 Pin, Dowel |
918-30220-16-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
4
|
4
92506-06045-00 Screw |
92506-06045-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
98507-06045-00 Screw, Pan Head |
98507-06045-00 |
from US $1.66 |
||
|
5
|
5
92506-06060-00 Screw |
92506-06060-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.42 |
||
|
6
|
6
90340-12059-00 Plug, Straight Screw |
90340-12059-00 |
US $1.66 |
||
| replacement | |||||
|
6
|
6
90340-12006-00 Plug, Straight Screw |
90340-12006-00 |
from US $1.66 |
||
|
7
|
7
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
|
8
|
8
37F-15128-00-00 Holder |
37F-15128-00-00 |
from US $3.12 |
||
|
9
|
9
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.56 |
||
|
10
|
10
92506-06030-00 Screw |
92506-06030-00 |
US $2.13 |
||
| replacement | |||||
|
10
|
10
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.70 |
||
|
11
|
11
925-01060-75-00 Screw, Pan Head |
925-01060-75-00 |
from US $6.80 |
||
| replacement | |||||
|
11
|
11
98580-06575-00 Screw Pan Head |
98580-06575-00 |
from US $6.80 |
||
|
12
|
12
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
13
|
13
90462-12105-00
Clamp
|
90462-12105-00 |
— | ||
|
14
|
14
353-13115-01-00 Connector, Suction Pipe |
353-13115-01-00 |
from US $7.23 |
||
|
15
|
15
90445-09082-00 Hose (L150) |
90445-09082-00 |
from US $6.52 |
||
| replacements | |||||
|
15
|
15
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
15
|
15
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
16
|
16
902-01122-F8-00
Washer, Plate
|
902-01122-F8-00 |
— | ||
| replacement | |||||
|
16
|
16
90201-12043-00 Washer, Plate |
90201-12043-00 |
from US $4.68 |
||
