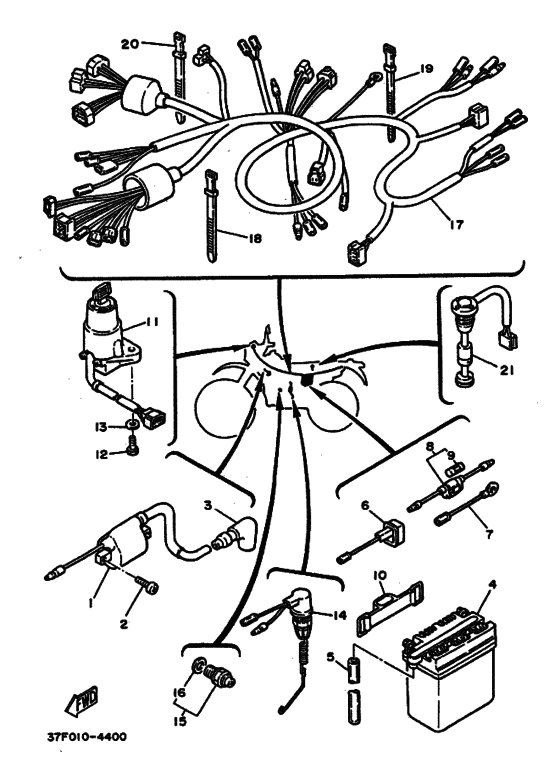

Electrical 1 Diagram Yamaha DT200
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 40R0
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- DT200R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34X-82310-M0-00 Ignition Coil Assy |
34X-82310-M0-00 |
US $89.39 |
||
| replacements | |||||
|
1
|
1
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
1
|
1
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
1
|
1
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
1
|
1
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
1
|
1
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
1
|
1
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
1
|
1
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
1
|
1
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
2
|
2
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
2
|
2
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
3
|
3
1M1-82370-21-00 Plug Cap Assywith noise suppressor |
1M1-82370-21-00 |
from US $28.34 |
||
| replacement | |||||
|
3
|
3
8DG-82370-00-00 Plug Cap Assywith noise suppressor |
8DG-82370-00-00 |
from US $28.34 |
||
|
4
|
4
30W-82110-79-00
Battery Assy
|
30W-82110-79-00 |
— | ||
| replacements | |||||
|
4
|
4
907-9R242-83-00
Battery (Yb3L-B)
|
907-9R242-83-00 |
— | ||
|
4
|
4
YB3-LB000-00-00
Bat Yb3L-B Yu
|
YB3-LB000-00-00 |
— | ||
|
4
|
4
CB3-LB000-00-00
12N14-3A GS BATTERY
|
CB3-LB000-00-00 |
— | ||
|
5
|
5
90445-08425-00 Hose (L350) |
90445-08425-00 |
from US $10.91 |
||
| replacement | |||||
|
5
|
5
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
6
|
6
1M1-82115-00-00 Wire, Plus Lead |
1M1-82115-00-00 |
from US $26.21 |
||
|
7
|
7
558-82116-00-00 Wire, Minus Lead |
558-82116-00-00 |
US $9.41 |
||
|
8
|
8
116-82150-00-00 Fuse Holder Assy |
116-82150-00-00 |
US $11.33 |
||
| replacements | |||||
|
8
|
8
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
|
8
|
8
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
9
|
9
116-82151-00-00
Fuse (12V-10A)
6V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
9
|
9
1A0-82151-00-00 Fuse (12V-10A)6V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
10
|
10
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
11
|
11
34X-82501-00-00 Main Switch Steering Lock |
34X-82501-00-00 |
from US $102.12 |
||
| replacement | |||||
|
11
|
11
5R2-82501-01-00
Main Swch Strglck
|
5R2-82501-01-00 |
— | ||
|
12
|
12
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
12
|
12
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
13
|
13
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
34X-82530-00-00
Stop Switch Assy
|
34X-82530-00-00 |
— | ||
| replacement | |||||
|
14
|
14
34X-82530-02-00
Stop Switch Assy
|
34X-82530-02-00 |
— | ||
|
15
|
15
341-82540-01-00
Neutral Switch Assy
|
341-82540-01-00 |
— | ||
| replacements | |||||
|
15
|
15
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
15
|
15
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
16
|
16
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
16
|
16
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
17
|
17
40R-82590-00-00
Wire Harness Assy
|
40R-82590-00-00 |
— | ||
| replacement | |||||
|
17
|
17
40R-82590-01-00
Wire Harness
|
40R-82590-01-00 |
— | ||
|
18
|
18
256-83936-00-00 Band, Switch Cord |
256-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
19
|
19
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
19
|
19
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
19
|
19
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
20
|
20
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
34X-85720-00-00 Oil Level Gauge Assy |
34X-85720-00-00 |
from US $46.84 |
||
| replacement | |||||
|
21
|
21
34X-85720-02-00
Oil Level Gauge Assy
|
34X-85720-02-00 |
— | ||
