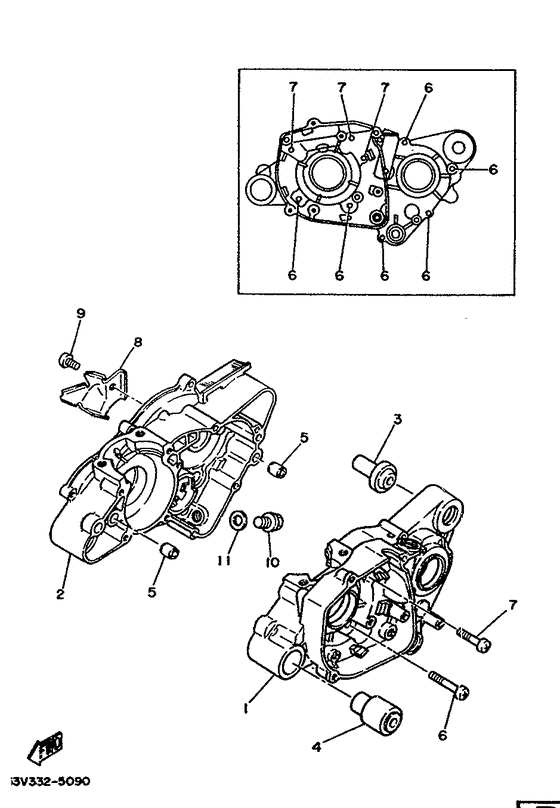

Crankcase Diagram Yamaha DT80 DT80
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 53W
- Sales region
- France (999)
- Базовая модель
- DT80LC
- Engine Capacity
- 80
- Model
- DT80LC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
10X-15111-01-00
Crankcase 1
|
10X-15111-01-00 |
— | ||
| replacement | |||||
|
01
|
01
10X-15111-02-00
Crankcase 1
|
10X-15111-02-00 |
— | ||
|
02
|
02
10X-15121-02-00
Crankcase 2
|
10X-15121-02-00 |
— | ||
| replacement | |||||
|
02
|
02
99999-01716-00
Case Kit, Crank 2 (10X)
|
99999-01716-00 |
— | ||
|
03
|
03
53V-15317-00-00 Spacer, Eng Mount |
53V-15317-00-00 |
from US $10.13 |
||
|
04
|
04
53V-15327-00-00 Spacer, Eng Mount |
53V-15327-00-00 |
US $13.28 |
||
| replacement | |||||
|
04
|
04
3GA-15327-00-00
Spacer, Engine Mount
|
3GA-15327-00-00 |
— | ||
|
05
|
05
918-30220-16-00 Pin, Dowel |
918-30220-16-00 |
from US $1.42 |
||
| replacement | |||||
|
05
|
05
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
06
|
06
92501-06045-00 Screw, Pan Head (92503-06045-00 |
92501-06045-00 |
from US $4.25 |
||
| replacement | |||||
|
06
|
06
98580-06545-00 Screw, Pan Head (92503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
07
|
07
92501-06035-00 Screw, Pan Head |
92501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
07
|
07
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
07
|
07
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
08
|
08
5R2-15113-00-00 Plate |
5R2-15113-00-00 |
US $2.32 |
||
| replacement | |||||
|
08
|
08
2RA-15113-00-00 Plate |
2RA-15113-00-00 |
US $2.09 |
||
|
09
|
09
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
10
|
10
90340-12059-00 Plug, Straight Screw |
90340-12059-00 |
US $1.66 |
||
| replacement | |||||
|
10
|
10
90340-12006-00 Plug, Straight Screw |
90340-12006-00 |
from US $1.66 |
||
|
11
|
11
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
