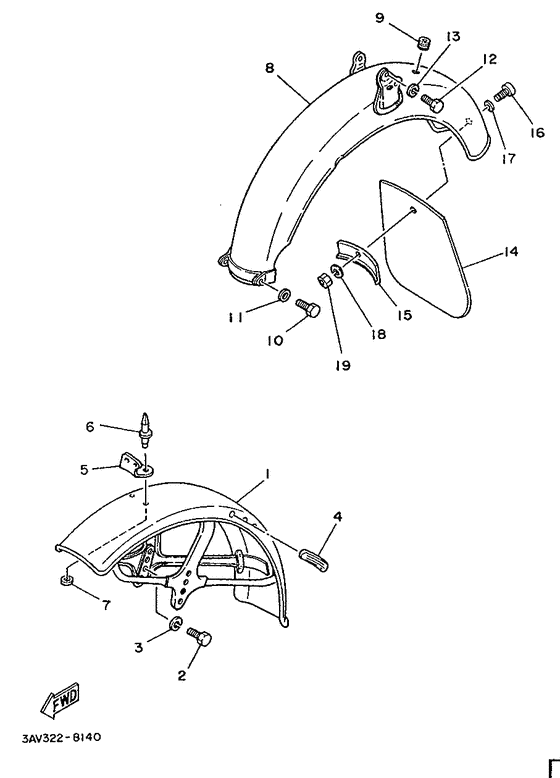

Fender Diagram Yamaha FS1
- Year
- 1988
- Colour
- French Blue (FBL; 00G3)
- Model code
- 3AV
- Sales region
- Sweden (999)
- Engine Capacity
- 50
- Model
- FS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3F0-21510-00-00 Front Fender Comp |
3F0-21510-00-00 |
US $288.75 |
||
| replacement | |||||
|
01
|
01
1U1-21510-02-93 Front Fender Comp |
1U1-21510-02-93 |
US $288.75 |
||
|
02
|
02
97313-08012-00 Bolt (661) |
97313-08012-00 |
from US $3.12 |
||
| replacements | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
97013-08012-00 Bolt |
97013-08012-00 |
from US $3.12 |
||
|
03
|
03
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
04
|
04
122-21517-00-00 Pad, Cable |
122-21517-00-00 |
US $4.11 |
||
|
05
|
05
3F0-85132-00-00
Bracket, Reflector 1
|
3F0-85132-00-00 |
— | ||
|
06
|
06
90267-40031-00 Rivet, Blind |
90267-40031-00 |
US $1.84 |
||
| replacement | |||||
|
06
|
06
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
07
|
07
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
07
|
07
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
08
|
08
3AV-21610-00-00
Rear Fender Comp
|
3AV-21610-00-00 |
— | ||
|
09
|
09
90480-13016-00 Grommet |
90480-13016-00 |
from US $1.42 |
||
|
10
|
10
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
10
|
10
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
11
|
11
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
12
|
12
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
14
|
14
526-21621-01-00
Flap
|
526-21621-01-00 |
— | ||
| replacement | |||||
|
14
|
14
3Y3-21621-00-00
Flap
|
3Y3-21621-00-00 |
— | ||
|
15
|
15
471-21623-00-00
Plate, Flap Fitting 1
|
471-21623-00-00 |
— | ||
|
16
|
16
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
17
|
17
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
