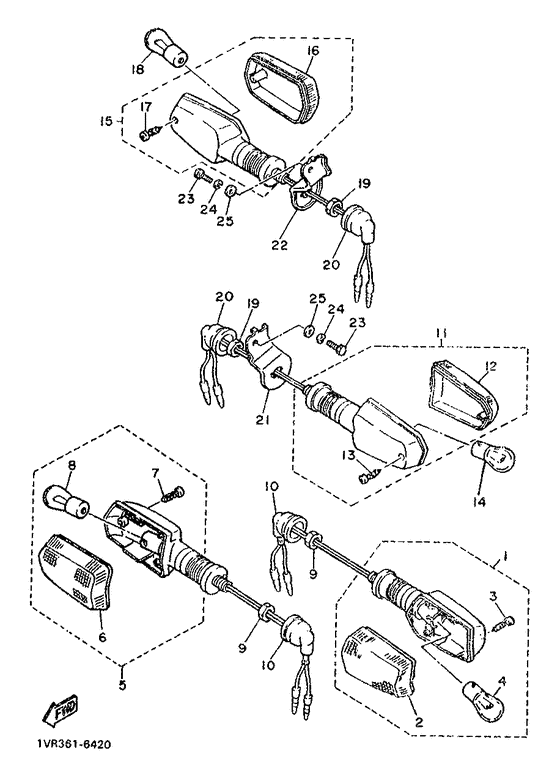

Flasher light Diagram Yamaha FZ750 FZ750 Genesis
- Year
- 1986
- Colour
- X009
- Model code
- 1VR
- Sales region
- Switzerland (999)
- Engine Capacity
- 750
- Model
- FZ750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1TV-83310-00-00
Front Flasher Light Assy 1
|
1TV-83310-00-00 |
— | ||
| replacement | |||||
|
01
|
01
1VU-83310-00-00
Front Flasher Light Assy 1
|
1VU-83310-00-00 |
— | ||
|
02
|
02
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
03
|
03
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
05
|
05
1TV-83320-00-00
Front Flasher Light Assy 2
|
1TV-83320-00-00 |
— | ||
| replacement | |||||
|
05
|
05
1VU-83320-00-00
Front Flasher Light Assy 2
|
1VU-83320-00-00 |
— | ||
|
06
|
06
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
07
|
07
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
07
|
07
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
09
|
09
95306-12600-00 Nut |
95306-12600-00 |
from US $1.70 |
||
| replacement | |||||
|
09
|
09
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
10
|
10
18G-83365-00-00 Cap |
18G-83365-00-00 |
from US $6.06 |
||
|
11
|
11
1VU-83330-00-00
Rear Flasher Light Assy 1
|
1VU-83330-00-00 |
— | ||
|
12
|
12
1VU-83332-00-00 Lens, Flasher |
1VU-83332-00-00 |
US $12.33 |
||
| replacement | |||||
|
12
|
12
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
13
|
13
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
15
|
15
1VU-83340-00-00
Flasher Light Assy 2
|
1VU-83340-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
1VU-83342-00-00 Lens, Flasher 2 |
1VU-83342-00-00 |
US $12.33 |
||
| replacement | |||||
|
16
|
16
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
17
|
17
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
19
|
19
95306-12600-00 Nut |
95306-12600-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
20
|
20
18G-83365-00-00 Cap |
18G-83365-00-00 |
from US $6.06 |
||
|
21
|
21
1AE-83368-00-00
Stay, Flasher 1
|
1AE-83368-00-00 |
— | ||
|
22
|
22
1AE-83369-00-00
Stay, Flasher 2
|
1AE-83369-00-00 |
— | ||
|
23
|
23
97002-06016-00 P53 Bolt |
97002-06016-00 |
US $1.28 |
||
| replacements | |||||
|
23
|
23
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
24
|
24
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
