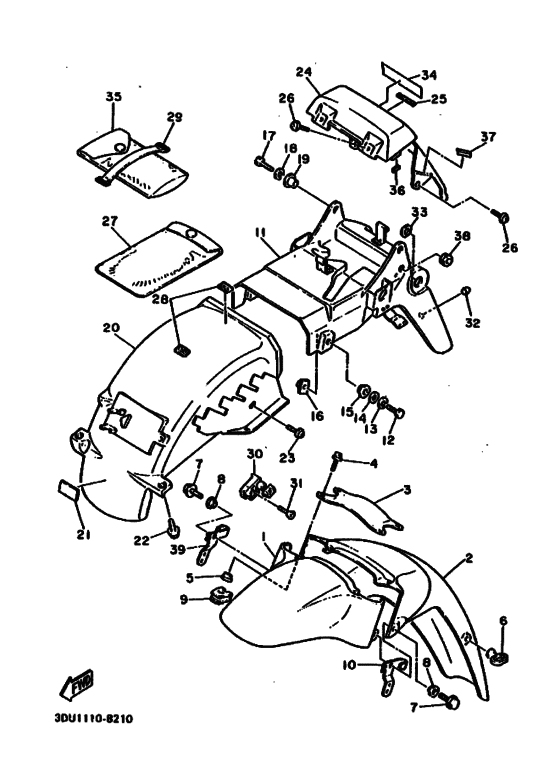

Fender Diagram Yamaha FZR1000
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 3DV1
- Sales region
- Europe (020)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GH-21511-00-GE
Fender, Front
SILKY WHITE |
2GH-21511-00-GE |
— | ||
|
2
|
2
2GH-21556-00-GE
Fender, Front 2
SILKY WHITE |
2GH-21556-00-GE |
— | ||
|
3
|
3
47X-2313A-00-00
Brace, Fork
|
47X-2313A-00-00 |
— | ||
|
4
|
4
90105-06478-00 Bolt, Flange (Small Head) |
90105-06478-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
5
|
5
90387-065T2-00 Collar |
90387-065T2-00 |
from US $3.68 |
||
|
6
|
6
1A8-21518-00-00 Holder, Cable |
1A8-21518-00-00 |
from US $4.53 |
||
|
7
|
7
90105-06477-00 Bolt, Flange |
90105-06477-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
8
|
8
903-87064-J1-00
Collar
|
903-87064-J1-00 |
— | ||
| replacement | |||||
|
8
|
8
903-87061-07-00 Collar |
903-87061-07-00 |
from US $4.43 |
||
|
9
|
9
90183-08043-00
Nut, Spring
|
90183-08043-00 |
— | ||
|
10
|
10
2LJ-25875-00-00
Holder, Brke Hose 1
|
2LJ-25875-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
2LJ-W2161-00-00
Rear Fender
|
2LJ-W2161-00-00 |
— | ||
|
12
|
12
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
13
|
13
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
90387-061M0-00 Collar |
90387-061M0-00 |
from US $4.11 |
||
|
16
|
16
31A-14477-00-00
Plate
|
31A-14477-00-00 |
— | ||
| replacement | |||||
|
16
|
16
31A-14477-10-00 Plate |
31A-14477-10-00 |
US $2.98 |
||
|
17
|
17
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
90387-064L2-00 Collar |
90387-064L2-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
90387-06648-00 Collar |
90387-06648-00 |
from US $1.56 |
||
|
20
|
20
2GH-21629-00-00
Guard, Mud
|
2GH-21629-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
29N-21747-00-00 Damper |
29N-21747-00-00 |
US $3.40 |
||
| replacement | |||||
|
21
|
21
2JG-21638-00-00 Damper 1 |
2JG-21638-00-00 |
from US $3.22 |
||
|
22
|
22
90119-06052-00 Bolt, With Washer |
90119-06052-00 |
from US $1.35 |
||
| replacement | |||||
|
22
|
22
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
23
|
23
90159-06056-00 Screw, With Washer |
90159-06056-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
901-59068-47-00 Screw, With Washer |
901-59068-47-00 |
from US $1.70 |
||
|
24
|
24
2GH-21651-00-VA
Cover, Rear Fender
DYNASTY BLUE |
2GH-21651-00-VA |
— | ||
|
25
|
25
2KT-21649-00-00 Seal 4 |
2KT-21649-00-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
26
|
26
90159-06042-00 Screw, With Washer |
90159-06042-00 |
from US $1.56 |
||
| replacements | |||||
|
26
|
26
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
26
|
26
90159-06013-00 Screw, With Washer |
90159-06013-00 |
from US $1.56 |
||
|
27
|
27
4K5-28186-00-00 Pouch |
4K5-28186-00-00 |
from US $13.88 |
||
|
28
|
28
4K5-2814E-10-00 Hook |
4K5-2814E-10-00 |
from US $3.26 |
||
|
29
|
29
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
29
|
29
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
30
|
30
26H-21308-00-00
Helmet Hanger Assy
|
26H-21308-00-00 |
— | ||
| replacement | |||||
|
30
|
30
26H-21308-01-00 Helmet Hanger Assy |
26H-21308-01-00 |
from US $44.85 |
||
|
31
|
31
90149-06150-00 Screw, Countersunk |
90149-06150-00 |
from US $1.98 |
||
|
32
|
32
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
32
|
32
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
|
33
|
33
90214-12033-00 Washer, Claw |
90214-12033-00 |
US $6.14 |
||
|
34
|
34
99231-00020-00 Emblem, Yamaha |
99231-00020-00 |
from US $8.08 |
||
| replacement | |||||
|
34
|
34
99241-00080-00 Emblem, Yamaha |
99241-00080-00 |
from US $8.08 |
||
|
35
|
35
2GH-28100-10-00
Tool Kit
|
2GH-28100-10-00 |
— | ||
| replacement | |||||
|
35
|
35
2GH-28100-20-00
Tool Kit
|
2GH-28100-20-00 |
— | ||
|
36
|
36
2GH-21732-00-00
Seal 1
|
2GH-21732-00-00 |
— | ||
|
37
|
37
2GH-21735-00-00 Seal 2 |
2GH-21735-00-00 |
from US $1.98 |
||
|
39
|
39
2LJ-25876-00-00
Holder, Brke Hose 2
|
2LJ-25876-00-00 |
— | ||
