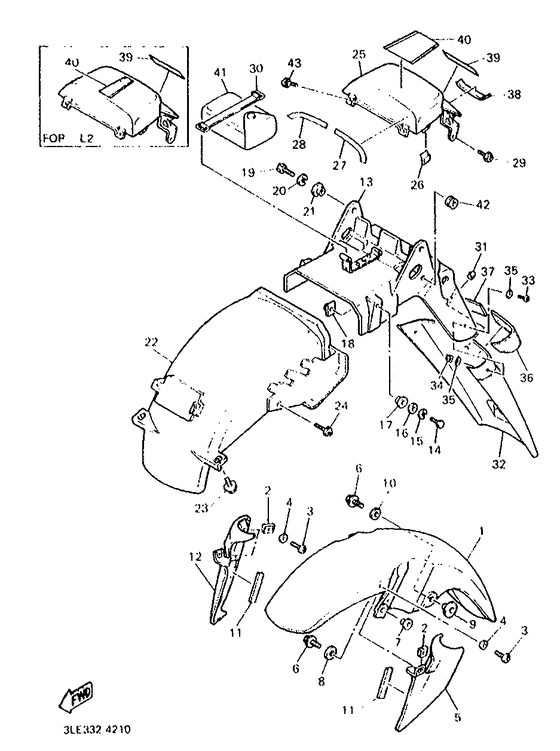

Fender Diagram Yamaha FZR1000
- Year
- 1994
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 3LE6
- Sales region
- Germany (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GM-21511-51-4B Fender, FrontUr black 2 |
3GM-21511-51-4B |
US $191.84 |
||
| replacement | |||||
|
01
|
01
3GM-21511-51-P2 Fender, FrontUr black 2 |
3GM-21511-51-P2 |
US $191.84 |
||
|
01
|
01
3GM-21511-51-PO
Fender, Front
Ur bluish white cocktail 1 |
3GM-21511-51-PO |
— | ||
|
02
|
02
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $3.33 |
||
|
03
|
03
90154-05060-00 Screw,binding |
90154-05060-00 |
from US $1.26 |
||
| replacement | |||||
|
03
|
03
98904-05012-00 Screw, Bind |
98904-05012-00 |
from US $2.21 |
||
|
04
|
04
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
05
|
05
3GM-21551-AO-4B
Fender, Over
Ur black 2 |
3GM-21551-AO-4B |
— | ||
|
05
|
05
3GM-21551-AO-P0
Fender, over
Ur bluish white cocktail 1 |
3GM-21551-AO-P0 |
— | ||
|
06
|
06
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
07
|
07
90387-06648-00 Collar |
90387-06648-00 |
from US $1.56 |
||
|
08
|
08
90202-11221-00 Washer, Plate |
90202-11221-00 |
US $12.20 |
||
|
09
|
09
90387-0604T-00 Collar |
90387-0604T-00 |
US $4.57 |
||
|
10
|
10
4FM-28372-00-00 Damper |
4FM-28372-00-00 |
from US $2.98 |
||
|
11
|
11
1FK-21746-00-00 Damper |
1FK-21746-00-00 |
from US $2.98 |
||
|
12
|
12
3GM-21555-AO-PO
Fender, Over 2
Ur bluish white cocktail 1 |
3GM-21555-AO-PO |
— | ||
|
12
|
12
3GM-21555-AO-4B
Fender, Over 2
Ur black |
3GM-21555-AO-4B |
— | ||
|
13
|
13
3GM-W2161-01-00
Rear Fender Comp
|
3GM-W2161-01-00 |
— | ||
|
14
|
14
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
16
|
16
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
17
|
17
90387-061MO-00
Collar
|
90387-061MO-00 |
— | ||
|
18
|
18
31A-14477-00-00
Plate
|
31A-14477-00-00 |
— | ||
| replacement | |||||
|
18
|
18
31A-14477-10-00 Plate |
31A-14477-10-00 |
US $2.98 |
||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
90387-06648-00 Collar |
90387-06648-00 |
from US $1.56 |
||
|
22
|
22
3GM-21629-50-00
Guard, Mud
|
3GM-21629-50-00 |
— | ||
|
23
|
23
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
24
|
24
90159-06056-00 Screw, With Washer |
90159-06056-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
901-59068-47-00 Screw, With Washer |
901-59068-47-00 |
from US $1.70 |
||
|
25
|
25
3GM-21651-50-4B Cover, Rear FenderUr black |
3GM-21651-50-4B |
US $156.73 |
||
| replacement | |||||
|
25
|
25
3GM-21651-50-P2 Cover, Rear FenderUr black |
3GM-21651-50-P2 |
US $156.73 |
||
|
25
|
25
3GM-21651-50-PO
Cover, Rear Fender
Ur bluish white cocktail 1 |
3GM-21651-50-PO |
— | ||
|
26
|
26
2GH-21732-00-00
Seal 1
|
2GH-21732-00-00 |
— | ||
|
27
|
27
3GM-21575-00-00 Seal 1For europe |
3GM-21575-00-00 |
from US $9.47 |
||
|
28
|
28
3GM-21576-00-00 Seal 2For europe |
3GM-21576-00-00 |
US $11.95 |
||
|
29
|
29
90159-06042-00 Screw, With Washer |
90159-06042-00 |
from US $1.56 |
||
| replacements | |||||
|
29
|
29
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
29
|
29
90159-06013-00 Screw, With Washer |
90159-06013-00 |
from US $1.56 |
||
|
30
|
30
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
31
|
31
90338-07043-00 Plug |
90338-07043-00 |
from US $1.71 |
||
|
32
|
32
3GM-21621-00-00
Flap
|
3GM-21621-00-00 |
— | ||
|
33
|
33
90149-04278-00 Screw |
90149-04278-00 |
from US $1.70 |
||
|
34
|
34
95606-04100-00 Nut, UNut, u |
95606-04100-00 |
from US $4.25 |
||
| replacement | |||||
|
34
|
34
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $4.25 |
||
|
35
|
35
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
35
|
35
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
36
|
36
3GM-21649-00-00
Damper
|
3GM-21649-00-00 |
— | ||
|
37
|
37
3GM-21649-10-00
Damper
|
3GM-21649-10-00 |
— | ||
|
38
|
38
1RK-22483-00-00 Damper 1 |
1RK-22483-00-00 |
US $7.42 |
||
|
39
|
39
99237-00080-00 Emblem, Yamaha |
99237-00080-00 |
from US $7.90 |
||
| replacement | |||||
|
39
|
39
992-47000-80-00 Emblem, Yamaha |
992-47000-80-00 |
from US $7.76 |
||
|
40
|
40
3KE-21663-00-00
Graphic, Tailcover
Ur for dwc1 |
3KE-21663-00-00 |
— | ||
|
40
|
40
3LE-21663-10-00
Graphic, Tailcover
Ur |
3LE-21663-10-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
41
|
41
3LE-28100-00-00
Tool Kit
|
3LE-28100-00-00 |
— | ||
|
42
|
42
90480-10258-00 Grommet |
90480-10258-00 |
from US $1.98 |
||
|
43
|
43
90159-06033-00 Screw, With Washer |
90159-06033-00 |
from US $1.70 |
||
| replacements | |||||
|
43
|
43
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
43
|
43
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
