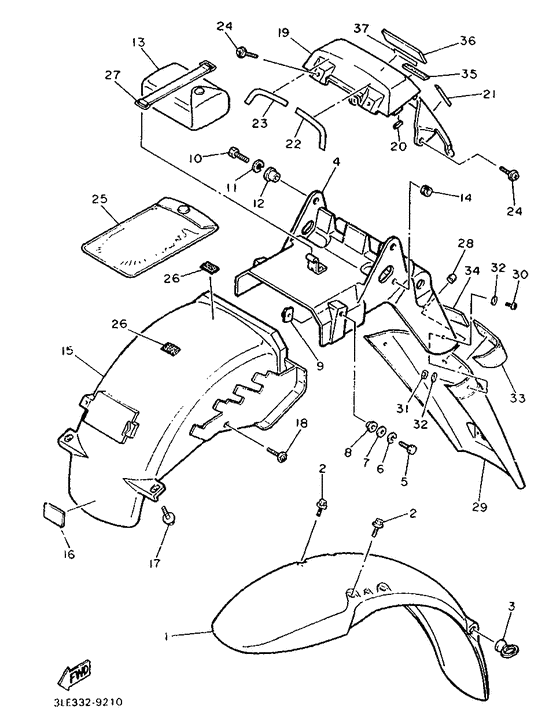

Fender Diagram Yamaha FZR1000
- Year
- 1990
- Colour
- Silky White (SW; 00GE)
- Model code
- 3LH2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GM-W2151-00-7B
Front Fender Comp
Ur bluish black 2 |
3GM-W2151-00-7B |
— | ||
| replacement | |||||
|
01
|
01
3GM-W2151-01-7B
Front Fender Comp
Ur bluish black 2 |
3GM-W2151-01-7B |
— | ||
|
01
|
01
3GM-W2151-00-GE
Front Fendercomp
Ur silky white |
3GM-W2151-00-GE |
— | ||
| replacement | |||||
|
01
|
01
3GM-W2151-01-GE
Front Fender Comp
Ur silky white |
3GM-W2151-01-GE |
— | ||
|
01
|
01
3GM-W2151-00-KM
Front Fender Comp
Ur new black blue |
3GM-W2151-00-KM |
— | ||
| replacement | |||||
|
01
|
01
3GM-W2151-01-KM
Front Fender Comp
Ur new black blue |
3GM-W2151-01-KM |
— | ||
|
02
|
02
90105-06564-00 Bolt, Flange (Small Head) |
90105-06564-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
95024-06016-00 Bolt, Flange |
95024-06016-00 |
from US $1.56 |
||
|
03
|
03
1AB-21518-00-00
New Genuine Part
|
1AB-21518-00-00 |
— | ||
|
04
|
04
3GM-W2161-00-00
Rear Fender Comp
|
3GM-W2161-00-00 |
— | ||
| replacement | |||||
|
04
|
04
3GM-W2161-01-00
Rear Fender Comp
|
3GM-W2161-01-00 |
— | ||
|
05
|
05
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
06
|
06
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
07
|
07
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
07
|
07
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
07
|
07
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
07
|
07
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
08
|
08
90387-061M0-00 Collar |
90387-061M0-00 |
from US $4.11 |
||
|
09
|
09
31A-14477-00-00
Plate
|
31A-14477-00-00 |
— | ||
| replacement | |||||
|
09
|
09
31A-14477-10-00 Plate |
31A-14477-10-00 |
US $2.98 |
||
|
10
|
10
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
10
|
10
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
10
|
10
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
90387-064L2-00 Collar |
90387-064L2-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
90387-06648-00 Collar |
90387-06648-00 |
from US $1.56 |
||
|
13
|
13
3GM-28100-00-00
Tool Kit
|
3GM-28100-00-00 |
— | ||
|
14
|
14
90480-10258-00 Grommet |
90480-10258-00 |
from US $1.98 |
||
|
15
|
15
3GM-21629-00-00
Guard, Mud
|
3GM-21629-00-00 |
— | ||
|
16
|
16
2JG-21638-00-00 Damper 1 |
2JG-21638-00-00 |
from US $3.22 |
||
|
17
|
17
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
17
|
17
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
17
|
17
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
18
|
18
90159-06056-00 Screw, With Washer |
90159-06056-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
901-59068-47-00 Screw, With Washer |
901-59068-47-00 |
from US $1.70 |
||
|
19
|
19
3GM-21651-00-7B
Cover, Rear Fender
Ur bluish black 2 |
3GM-21651-00-7B |
— | ||
|
19
|
19
3GM-21651-00-GE
Cover, Rear Fenderfender
Ur silky white |
3GM-21651-00-GE |
— | ||
|
20
|
20
2GH-21732-00-00
Seal 1
|
2GH-21732-00-00 |
— | ||
|
21
|
21
2GH-21735-00-00 Seal 2 |
2GH-21735-00-00 |
from US $1.98 |
||
|
22
|
22
2GH-21575-00-00
Seal 1
|
2GH-21575-00-00 |
— | ||
|
23
|
23
2GH-21576-00-00
Seal 2
|
2GH-21576-00-00 |
— | ||
|
24
|
24
90159-06042-00 Screw, With Washer |
90159-06042-00 |
from US $1.56 |
||
| replacements | |||||
|
24
|
24
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
24
|
24
90159-06013-00 Screw, With Washer |
90159-06013-00 |
from US $1.56 |
||
|
25
|
25
4K5-28186-00-00 Pouch |
4K5-28186-00-00 |
from US $13.88 |
||
|
26
|
26
4K5-2814E-10-00 Hook |
4K5-2814E-10-00 |
from US $3.26 |
||
|
27
|
27
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
27
|
27
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
28
|
28
90338-07043-00 Plug |
90338-07043-00 |
from US $1.71 |
||
|
29
|
29
3GM-21621-00-00
Flap
|
3GM-21621-00-00 |
— | ||
|
30
|
30
90149-04278-00 Screw |
90149-04278-00 |
from US $1.70 |
||
|
31
|
31
95606-04100-00 Nut, UNut, u |
95606-04100-00 |
from US $4.25 |
||
| replacement | |||||
|
31
|
31
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $4.25 |
||
|
32
|
32
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
33
|
33
3GM-21649-00-00
Damper
|
3GM-21649-00-00 |
— | ||
|
34
|
34
3GM-21649-10-00
Damper
|
3GM-21649-10-00 |
— | ||
|
35
|
35
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
36
|
36
3GM-2163G-00-00
Emblem 1
|
3GM-2163G-00-00 |
— | ||
|
37
|
37
99233-00020-00 Emblem, YamahaUr for sw |
99233-00020-00 |
from US $13.28 |
||
| replacement | |||||
|
37
|
37
99243-00080-00 Emblem, YamahaUr for sw |
99243-00080-00 |
from US $14.17 |
||
|
37
|
37
99236-00020-00 Emblem, Yamaha (Silver)Ur for bib 2 |
99236-00020-00 |
from US $9.07 |
||
| replacement | |||||
|
37
|
37
992-46000-80-00 Emblem (YAMAHA)Ur for bib 2 |
992-46000-80-00 |
from US $9.15 |
||
