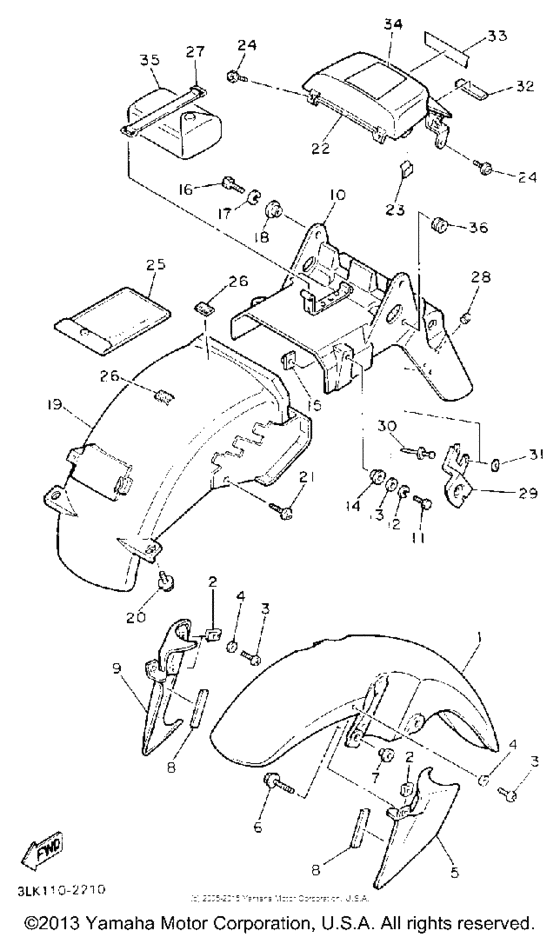

Fender Diagram Yamaha FZR1000
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- FZR1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
999-99022-57-00
Fender, Front
|
999-99022-57-00 |
— | ||
|
2
|
2
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $3.33 |
||
|
3
|
3
90154-05060-00 Screw,binding |
90154-05060-00 |
from US $1.26 |
||
| replacement | |||||
|
3
|
3
98904-05012-00 Screw, Bind |
98904-05012-00 |
from US $2.21 |
||
|
4
|
4
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
5
|
5
3GM-21551-51-GE
Over,fender
|
3GM-21551-51-GE |
— | ||
| replacement | |||||
|
5
|
5
3GM-21551-A0-GE
Fender, Over
|
3GM-21551-A0-GE |
— | ||
|
6
|
6
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
7
|
7
90387-065T2-00 Collar |
90387-065T2-00 |
from US $3.68 |
||
|
8
|
8
1VJ-24723-00-00
Damper 2
|
1VJ-24723-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
3GM-21555-51-GE Fender, Over 2SILKY WHITE |
3GM-21555-51-GE |
US $132.41 |
||
| replacement | |||||
|
9
|
9
3GM-21555-A0-GE Fender, Over 2SILKY WHITE |
3GM-21555-A0-GE |
US $132.41 |
||
|
10
|
10
3LK-W2161-51-00 Rear Fender Comp |
3LK-W2161-51-00 |
US $209.66 |
||
|
11
|
11
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
11
|
11
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
13
|
13
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
14
|
14
90387-061M0-00 Collar |
90387-061M0-00 |
from US $4.11 |
||
|
15
|
15
31A-14477-00-00
Plate
|
31A-14477-00-00 |
— | ||
| replacement | |||||
|
15
|
15
31A-14477-10-00 Plate |
31A-14477-10-00 |
US $2.98 |
||
|
16
|
16
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
90387-06648-00 Collar |
90387-06648-00 |
from US $1.56 |
||
|
19
|
19
3GM-21629-50-00
Guard, Mud
|
3GM-21629-50-00 |
— | ||
|
20
|
20
90119-06079-00 Bolt, With Washer |
90119-06079-00 |
from US $1.56 |
||
|
21
|
21
90159-06056-00 Screw, With Washer |
90159-06056-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
901-59068-47-00 Screw, With Washer |
901-59068-47-00 |
from US $1.70 |
||
|
22
|
22
3GM-21651-50-GE Cover, Rear Fender |
3GM-21651-50-GE |
from US $117.18 |
||
|
23
|
23
2GH-21732-00-00
Seal 1
|
2GH-21732-00-00 |
— | ||
|
24
|
24
90159-06042-00 Screw, With Washer |
90159-06042-00 |
from US $1.56 |
||
| replacements | |||||
|
24
|
24
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
24
|
24
90159-06013-00 Screw, With Washer |
90159-06013-00 |
from US $1.56 |
||
|
25
|
25
4K5-28186-00-00 Pouch |
4K5-28186-00-00 |
from US $13.88 |
||
|
26
|
26
4K5-2814E-10-00 Hook |
4K5-2814E-10-00 |
from US $3.26 |
||
|
27
|
27
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
28
|
28
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
28
|
28
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
|
29
|
29
47M-85132-00-00
Bracket, Reflector 1
|
47M-85132-00-00 |
— | ||
|
30
|
30
90267-32070-00 Rivet, Blind |
90267-32070-00 |
from US $2.13 |
||
|
31
|
31
92906-03200-00 Washer |
92906-03200-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
92907-03200-00 Washer |
92907-03200-00 |
from US $1.66 |
||
|
32
|
32
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
33
|
33
99234-00020-00 Emblem, Yamaha (Black) |
99234-00020-00 |
from US $8.64 |
||
| replacement | |||||
|
33
|
33
99244-00080-00 Emblem, Yamaha |
99244-00080-00 |
from US $8.74 |
||
|
34
|
34
3LG-21663-00-00
Graphic, Tailcover
|
3LG-21663-00-00 |
— | ||
|
35
|
35
3GM-28100-00-00
Tool Kit
|
3GM-28100-00-00 |
— | ||
|
36
|
36
90480-10258-00 Grommet |
90480-10258-00 |
from US $1.98 |
||
