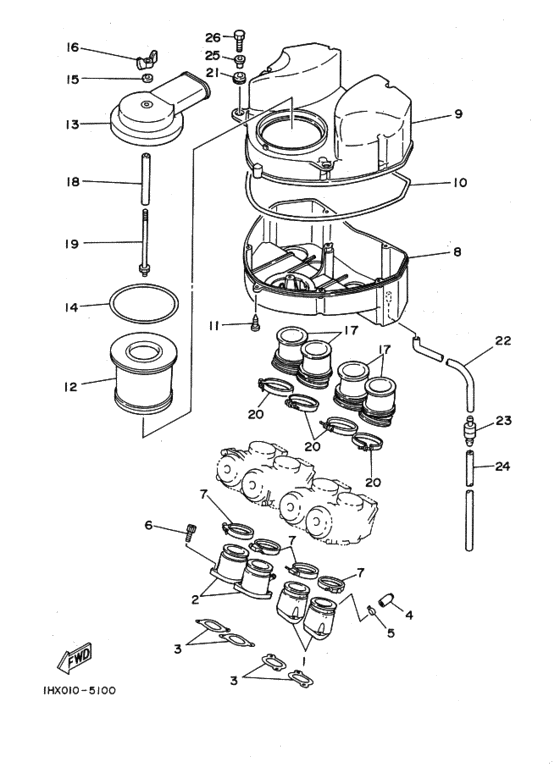

Intake Diagram Yamaha FZR250 FZR250 Genesis
- Year
- 1987
- Colour
- Silky White (SW; 00GE)
- Model code
- 2KR0
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- FZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1HX-13586-00-00 Joint, Carburetor 1 |
1HX-13586-00-00 |
from US $65.65 |
||
|
2
|
2
1HX-13596-00-00 Joint, Carburetor 2 |
1HX-13596-00-00 |
from US $65.65 |
||
|
3
|
3
1HX-13556-00-00 Gasket, Manifoldガスケツト，マニホールド; |
1HX-13556-00-00 |
US $5.81 |
||
| replacement | |||||
|
3
|
3
1HX-13556-10-00 Gasket, Manifoldガスケツト，マニホールド; |
1HX-13556-10-00 |
US $4.26 |
||
|
4
|
4
16G-13569-00-00 Plug, Blind |
16G-13569-00-00 |
from US $2.41 |
||
|
5
|
5
90467-10039-00 Clip |
90467-10039-00 |
from US $1.35 |
||
|
6
|
6
913-16060-20-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
91317-06020-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91317-06020-00 |
from US $1.07 |
||
|
7
|
7
1HX-13575-00-00 Band |
1HX-13575-00-00 |
from US $6.52 |
||
| replacements | |||||
|
7
|
7
4TR-13474-01-00 Band |
4TR-13474-01-00 |
from US $6.52 |
||
|
7
|
7
4TR-13474-02-00 BAND |
4TR-13474-02-00 |
from US $6.52 |
||
|
8
|
8
1HX-14411-00-00
Case, Air Cleaner 1
ケース，エアクリーナー １; |
1HX-14411-00-00 |
— | ||
|
9
|
9
1HX-14421-00-00
Case, Air Cleaner 2
ケース，エアクリーナー ２; |
1HX-14421-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
ケース，エアクリーナー ２; |
999-99999-99-00 |
— | ||
|
10
|
10
1HX-14457-00-00 Sealシール; |
1HX-14457-00-00 |
US $9.49 |
||
| replacement | |||||
|
10
|
10
1VJ-14462-00-00 Sealシール; |
1VJ-14462-00-00 |
from US $7.76 |
||
|
11
|
11
97780-50125-00 Screw, Tapping |
97780-50125-00 |
from US $2.55 |
||
|
12
|
12
1HX-14451-00-00 Element, Air Cleanerエレメント，エアクリーナー; |
1HX-14451-00-00 |
US $50.01 |
||
|
13
|
13
1HX-14412-00-00
Cap, Cleaner Case 1
キヤツプ，クリーナーケース １; |
1HX-14412-00-00 |
— | ||
|
14
|
14
1HX-14452-00-00 Sealシール; |
1HX-14452-00-00 |
US $9.49 |
||
| replacement | |||||
|
14
|
14
1VJ-14462-00-00 Sealシール; |
1VJ-14462-00-00 |
from US $7.76 |
||
|
15
|
15
92901-06200-00 Washer, Plainワツシヤ，プレーン; |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.07 |
||
|
16
|
16
90175-06012-00 Nut, Wing |
90175-06012-00 |
from US $2.55 |
||
| replacements | |||||
|
16
|
16
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
16
|
16
90175-06008-00 Nut, Wing |
90175-06008-00 |
from US $2.55 |
||
|
17
|
17
1HX-14453-00-00 Joint, Air Cleaner 1ジヨイント，エアクリーナー １; |
1HX-14453-00-00 |
from US $11.23 |
||
|
18
|
18
90387-06475-00 Collarカラー; |
90387-06475-00 |
US $10.20 |
||
| replacement | |||||
|
18
|
18
90387-06M13-00 Collarカラー; |
90387-06M13-00 |
from US $10.20 |
||
|
19
|
19
90116-06233-00 Bolt, Stud |
90116-06233-00 |
US $6.61 |
||
|
20
|
20
90450-54001-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-54001-00 |
US $4.39 |
||
| replacement | |||||
|
20
|
20
90450-54008-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-54008-00 |
from US $4.39 |
||
|
21
|
21
90480-10297-00 Grommet |
90480-10297-00 |
from US $1.70 |
||
|
22
|
22
1HX-1443E-00-00 Pipe, Drainパイプドレイン; |
1HX-1443E-00-00 |
from US $10.48 |
||
|
23
|
23
4X7-2149Y-00-00 Filter Assy |
4X7-2149Y-00-00 |
from US $11.33 |
||
|
24
|
24
904-45111-53-00
Hose (L460)
ホース; |
904-45111-53-00 |
— | ||
| replacement | |||||
|
24
|
24
904-45110-83-00 Hose (L800)ホース; |
904-45110-83-00 |
from US $12.61 |
||
|
25
|
25
90387-071E0-00 Collarカラー; |
90387-071E0-00 |
from US $5.38 |
||
|
26
|
26
97002-06016-00 P53 Boltボルト; |
97002-06016-00 |
US $1.28 |
||
| replacements | |||||
|
26
|
26
97095-06016-00 Boltボルト; |
97095-06016-00 |
from US $1.28 |
||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep Recessボルト; |
97D95-06016-00 |
from US $1.28 |
||
