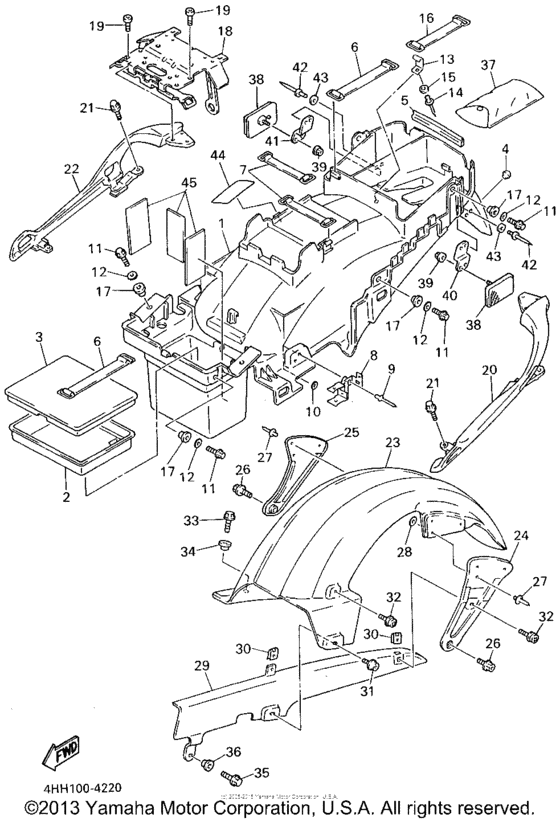

Rear fender Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4FV-21629-00-00
Guard, Mud
|
4FV-21629-00-00 |
— | ||
|
2
|
2
4BH-2384G-00-00 Case 1 |
4BH-2384G-00-00 |
US $50.18 |
||
|
3
|
3
4BH-2384H-00-00 Case 2 |
4BH-2384H-00-00 |
US $44.50 |
||
|
4
|
4
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
4
|
4
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
|
5
|
5
4BH-2171L-00-00 Mole, Side Cover 1 |
4BH-2171L-00-00 |
from US $6.35 |
||
| replacements | |||||
|
5
|
5
4WV-2171L-00-00 Mole, Side Cover 1 |
4WV-2171L-00-00 |
from US $3.38 |
||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
26H-82131-00-00 Band, Battery |
26H-82131-00-00 |
from US $8.36 |
||
|
7
|
7
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.78 |
||
|
8
|
8
4BH-2139A-00-00
Bracket, Starter Switch
|
4BH-2139A-00-00 |
— | ||
|
9
|
9
90267-40105-00 Rivet, Blind(8R6) |
90267-40105-00 |
from US $1.98 |
||
|
10
|
10
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
11
|
11
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
11
|
11
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
36Y-2175R-00-00
Hook, Band
|
36Y-2175R-00-00 |
— | ||
|
14
|
14
90267-40105-00 Rivet, Blind(8R6) |
90267-40105-00 |
from US $1.98 |
||
|
15
|
15
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
16
|
16
26H-82131-00-00 Band, Battery |
26H-82131-00-00 |
from US $8.36 |
||
|
17
|
17
90387-07717-00 Collar |
90387-07717-00 |
from US $2.36 |
||
|
18
|
18
4BH-2117E-00-00 Bracket, Taillight |
4BH-2117E-00-00 |
US $119.74 |
||
|
19
|
19
91316-08016-00 Bolt, Socket Head |
91316-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
913-17080-16-00 Bolt |
913-17080-16-00 |
from US $1.42 |
||
|
20
|
20
4BH-21644-00-P4
Stay, Rear
|
4BH-21644-00-P4 |
— | ||
|
21
|
21
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
21
|
21
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
21
|
21
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
22
|
22
4BH-21645-00-P4
Stay, Rear
|
4BH-21645-00-P4 |
— | ||
|
23
|
23
4BH-21650-00-00 Rear Fender Comp |
4BH-21650-00-00 |
US $302.96 |
||
|
24
|
24
4BH-2164F-00-00 Stay 1 |
4BH-2164F-00-00 |
from US $68.99 |
||
|
25
|
25
4BH-2164G-00-00 Stay 2 |
4BH-2164G-00-00 |
from US $68.99 |
||
|
26
|
26
90109-085E2-00 Bolt (2Kf) |
90109-085E2-00 |
from US $2.08 |
||
|
27
|
27
90267-48162-00 Rivet, Blind |
90267-48162-00 |
from US $3.37 |
||
|
28
|
28
902-01044-R6-00
Washer, Plate (90201-04325-00 )
90201-04325-00 |
902-01044-R6-00 |
— | ||
|
29
|
29
4BH-22311-00-00
Case, Chain
|
4BH-22311-00-00 |
— | ||
|
30
|
30
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
30
|
30
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
31
|
31
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
31
|
31
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
32
|
32
901-59060-71-00
Screw, With Washer
|
901-59060-71-00 |
— | ||
| replacements | |||||
|
32
|
32
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
32
|
32
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
33
|
33
958-26060-20-00
Bolt, Flange
|
958-26060-20-00 |
— | ||
| replacement | |||||
|
33
|
33
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
34
|
34
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
35
|
35
95816-06025-00 Bolt, Flange (20X) |
95816-06025-00 |
US $1.07 |
||
| replacements | |||||
|
35
|
35
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
35
|
35
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
36
|
36
90387-06737-00 Collar |
90387-06737-00 |
from US $1.81 |
||
|
37
|
37
4BH-28100-01-00 Tool Kit |
4BH-28100-01-00 |
US $193.99 |
||
|
38
|
38
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
38
|
38
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
39
|
39
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
39
|
39
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
40
|
40
2LJ-21689-00-00
Bracket, Rear Stay 2
|
2LJ-21689-00-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
2LJ-21688-00-00
Bracket, Rear Stay
|
2LJ-21688-00-00 |
— | ||
|
42
|
42
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
43
|
43
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
43
|
43
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
44
|
44
4HH-2179W-10-00
Plate, Epa
|
4HH-2179W-10-00 |
— | ||
|
44
|
44
4HH-2179U-10-00
Plate, Epa
CA |
4HH-2179U-10-00 |
— | ||
|
45
|
45
5X2-24183-00-00 Seat, Battery |
5X2-24183-00-00 |
from US $4.53 |
||
| replacement | |||||
|
45
|
45
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
