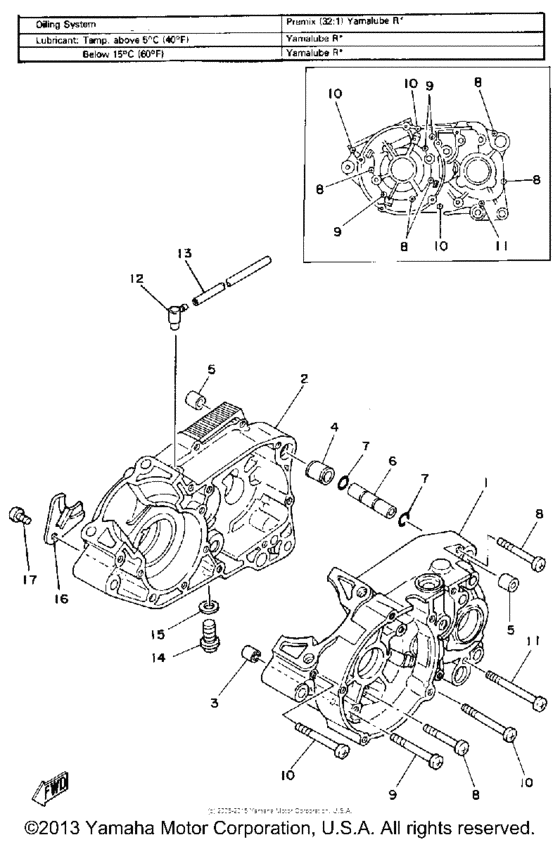

Crankcase Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W1-15111-02-00
Crankcase 1 (1W1-15111-00)
1W1-15111-00 |
1W1-15111-02-00 |
— | ||
|
2
|
2
1W1-15121-02-00
Crankcase 2 (1W1-15121-01)
1W1-15121-01 |
1W1-15121-02-00 |
— | ||
|
3
|
3
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
3
|
3
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
4
|
4
995-10200-20-00
Pin, Dowel
|
995-10200-20-00 |
— | ||
| replacement | |||||
|
4
|
4
995-30200-20-00 Pin, Dowel |
995-30200-20-00 |
US $2.13 |
||
|
5
|
5
328-15316-00-00
Damper, Engine Mount 1 (328-153)
328-153 |
328-15316-00-00 |
— | ||
| replacement | |||||
|
5
|
5
90388-08003-00 Damper328-153 |
90388-08003-00 |
from US $19.87 |
||
|
6
|
6
401-15317-00-00 Spacer, Engine Mount |
401-15317-00-00 |
from US $11.76 |
||
|
7
|
7
93210-11073-00 O-Ring |
93210-11073-00 |
from US $1.70 |
||
|
8
|
8
985-06060-50-00
Screw Pan Head
|
985-06060-50-00 |
— | ||
| replacement | |||||
|
8
|
8
98507-06050-00 Screw, Pan Head |
98507-06050-00 |
from US $1.56 |
||
|
9
|
9
98506-06060-00 Screw Pan Head |
98506-06060-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.34 |
||
|
10
|
10
98506-06070-00 Screw Pan Head |
98506-06070-00 |
from US $1.21 |
||
| replacement | |||||
|
10
|
10
98507-06070-00 Screw, Pan Head |
98507-06070-00 |
from US $1.21 |
||
|
11
|
11
98506-06075-00 Screw, Pan Head |
98506-06075-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
98507-06075-00 Screw, Pan Head |
98507-06075-00 |
from US $1.56 |
||
|
12
|
12
2N4-15371-00-00
Breather
|
2N4-15371-00-00 |
— | ||
| replacement | |||||
|
12
|
12
5UG-15371-00-00 Breather |
5UG-15371-00-00 |
from US $15.87 |
||
|
13
|
13
904-45073-40-00
Hose (L310)
|
904-45073-40-00 |
— | ||
| replacement | |||||
|
13
|
13
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $10.91 |
||
|
14
|
14
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
15
|
15
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
16
|
16
304-15128-00-00 Holder |
304-15128-00-00 |
from US $7.93 |
||
|
17
|
17
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.34 |
||
