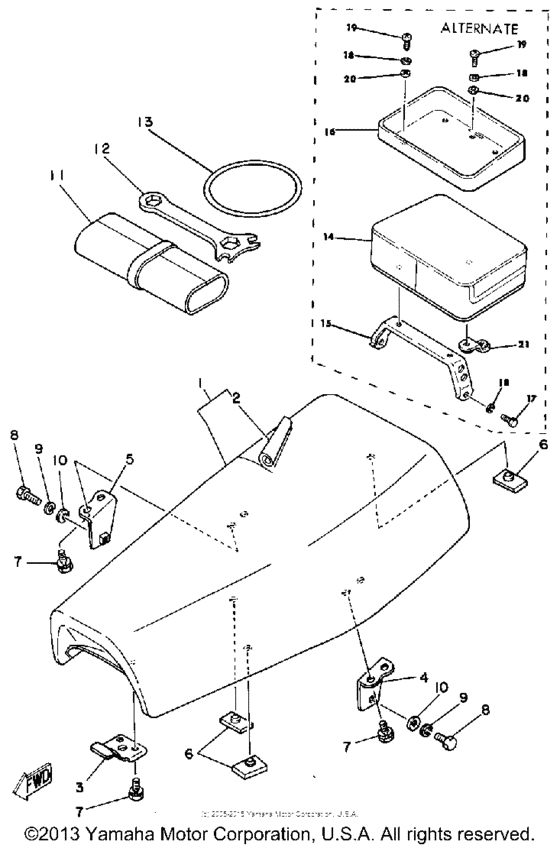

Seat Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R9-W2473-00-00
Semi-Dbl-Seat Assembly
|
3R9-W2473-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3R2-W2473-00-00
Semi-Dbl-Seat Assembly
|
3R2-W2473-00-00 |
— | ||
|
2
|
2
3R2-24771-00-00
Cover, Sm-Dbl Seat
|
3R2-24771-00-00 |
— | ||
|
3
|
3
2K5-24715-00-00
Stay, Front
|
2K5-24715-00-00 |
— | ||
|
4
|
4
2K5-24716-00-00
Stay, Rear
|
2K5-24716-00-00 |
— | ||
|
5
|
5
2K5-24719-00-00
Stay, Rear
|
2K5-24719-00-00 |
— | ||
|
6
|
6
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
7
|
7
90101-06304-00 Bolt |
90101-06304-00 |
from US $4.82 |
||
|
8
|
8
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
8
|
8
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
|
8
|
8
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
11
|
11
1W2-W2810-00-00
Tool Kit
|
1W2-W2810-00-00 |
— | ||
|
12
|
12
3R9-28136-00-00
Spanner, Special
|
3R9-28136-00-00 |
— | ||
|
13
|
13
93210-98202-00 O-Ring |
93210-98202-00 |
from US $4.96 |
||
|
14
|
14
4V5-24850-00-00
Carrier Box Assembly
|
4V5-24850-00-00 |
— | ||
|
15
|
15
3W1-24832-00-00
Bracket, Carrier 1
|
3W1-24832-00-00 |
— | ||
|
16
|
16
4V5-24833-00-00
Bracket, Carrier 2
|
4V5-24833-00-00 |
— | ||
|
17
|
17
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
17
|
17
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
19
|
19
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
20
|
20
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
21
|
21
3W1-24819-00-00
Stay, Rear
|
3W1-24819-00-00 |
— | ||
