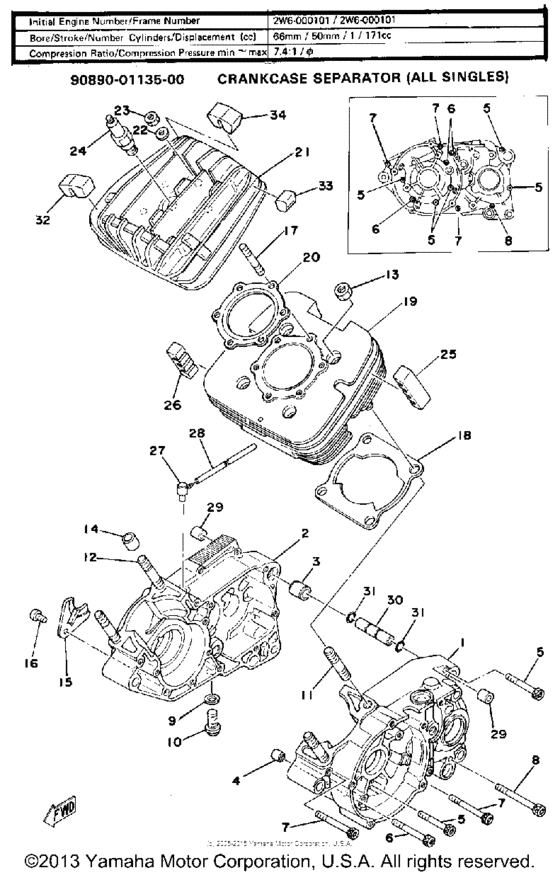

Crankcase-cylinder Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W2-15111-02-00
Crankcase 1
|
1W2-15111-02-00 |
— | ||
|
2
|
2
1W2-15121-02-00
Crankcase 2 (1W2-15121-01)
1W2-15121-01 |
1W2-15121-02-00 |
— | ||
|
3
|
3
995-10200-20-00
Pin, Dowel
|
995-10200-20-00 |
— | ||
| replacement | |||||
|
3
|
3
995-30200-20-00 Pin, Dowel |
995-30200-20-00 |
US $2.13 |
||
|
4
|
4
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
4
|
4
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
4
|
4
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
5
|
5
913-16060-50-00
Bolt
|
913-16060-50-00 |
— | ||
| replacement | |||||
|
5
|
5
91317-06050-00 Bolt |
91317-06050-00 |
from US $1.07 |
||
|
6
|
6
913-16060-60-00
Bolt
|
913-16060-60-00 |
— | ||
| replacement | |||||
|
6
|
6
91317-06060-00 Bolt |
91317-06060-00 |
from US $1.42 |
||
|
7
|
7
913-16060-70-00
Bolt
|
913-16060-70-00 |
— | ||
| replacement | |||||
|
7
|
7
91317-06070-00 Bolt |
91317-06070-00 |
from US $1.50 |
||
|
8
|
8
91316-06075-00 Bolt |
91316-06075-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
91317-06075-00 Bolt, Socket |
91317-06075-00 |
from US $1.50 |
||
|
9
|
9
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
10
|
10
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
11
|
11
901-16102-57-00
Bolt, Stud
M10-60L |
901-16102-57-00 |
— | ||
|
12
|
12
901-16102-58-00
Bolt, Stud
M10-70L |
901-16102-58-00 |
— | ||
|
13
|
13
90179-10201-00 Nut |
90179-10201-00 |
US $24.23 |
||
| replacement | |||||
|
13
|
13
90179-10021-00 Nut |
90179-10021-00 |
from US $24.23 |
||
|
14
|
14
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
15
|
15
304-15128-00-00 Holder |
304-15128-00-00 |
from US $7.93 |
||
|
16
|
16
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.34 |
||
|
17
|
17
90116-08104-00 Bolt, StudM8-50L |
90116-08104-00 |
from US $6.66 |
||
|
18
|
18
3TN-11351-00-00 Gasket, Cylinder |
3TN-11351-00-00 |
from US $3.32 |
||
|
19
|
19
2W6-11311-00-00
Cylinder 1
|
2W6-11311-00-00 |
— | ||
|
20
|
20
1W2-11181-00-00 Gasket, Cylinder Head 1 |
1W2-11181-00-00 |
from US $19.42 |
||
|
21
|
21
1W2-11111-00-00
Head, Cylinder 1
|
1W2-11111-00-00 |
— | ||
|
22
|
22
90201-08100-00 Washer, Plate |
90201-08100-00 |
from US $2.69 |
||
|
23
|
23
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
24
|
24
CMP-N2G00-00-00
Champion N2G 10Pk
N2G 10PK |
CMP-N2G00-00-00 |
— | ||
|
25
|
25
2A6-11127-00-00
Absorber 3
|
2A6-11127-00-00 |
— | ||
|
26
|
26
2A6-11127-00-00
Absorber 3
|
2A6-11127-00-00 |
— | ||
|
27
|
27
2N4-15371-00-00
Breather
|
2N4-15371-00-00 |
— | ||
| replacement | |||||
|
27
|
27
5UG-15371-00-00 Breather |
5UG-15371-00-00 |
from US $15.87 |
||
|
28
|
28
904-45073-40-00
Hose (L310)
|
904-45073-40-00 |
— | ||
| replacement | |||||
|
28
|
28
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $10.91 |
||
|
29
|
29
328-15316-00-00
Damper, Engine Mount 1 (328-153)
328-153 |
328-15316-00-00 |
— | ||
| replacement | |||||
|
29
|
29
90388-08003-00 Damper328-153 |
90388-08003-00 |
from US $19.87 |
||
|
30
|
30
401-15317-00-00 Spacer, Engine Mount |
401-15317-00-00 |
from US $11.76 |
||
|
31
|
31
93210-11073-00 O-Ring |
93210-11073-00 |
from US $1.70 |
||
|
32
|
32
1W2-11161-00-00
Absorber 1
|
1W2-11161-00-00 |
— | ||
|
33
|
33
1W2-11162-00-00
Absorber 2
|
1W2-11162-00-00 |
— | ||
|
34
|
34
1W2-11127-00-00
Absorber 3
|
1W2-11127-00-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
