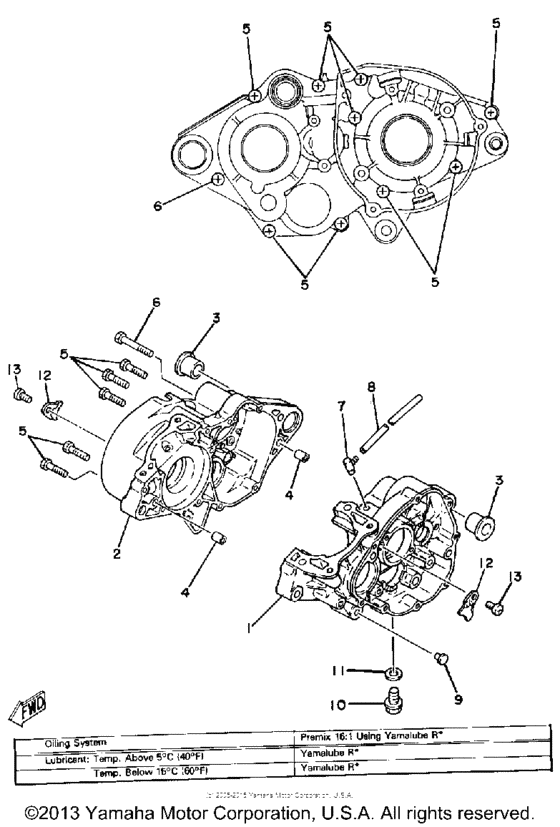

Crankcase Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R3-15111-02-00
Crankcase 1
|
3R3-15111-02-00 |
— | ||
|
2
|
2
3R3-15121-02-00
Crankcase 2 (3R3-15121-01)
3R3-15121-01 |
3R3-15121-02-00 |
— | ||
|
3
|
3
90387-16781-00
Collar
|
90387-16781-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
4
|
4
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
4
|
4
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
5
|
5
913-16060-35-00
Bolt
|
913-16060-35-00 |
— | ||
| replacements | |||||
|
5
|
5
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
5
|
5
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
5
|
5
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
6
|
6
913-16060-50-00
Bolt
|
913-16060-50-00 |
— | ||
| replacement | |||||
|
6
|
6
91317-06050-00 Bolt |
91317-06050-00 |
from US $1.07 |
||
|
7
|
7
2N4-15371-00-00
Breather
|
2N4-15371-00-00 |
— | ||
| replacement | |||||
|
7
|
7
5UG-15371-00-00 Breather |
5UG-15371-00-00 |
from US $15.87 |
||
|
8
|
8
904-45073-40-00
Hose (L310)
|
904-45073-40-00 |
— | ||
| replacement | |||||
|
8
|
8
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $10.91 |
||
|
9
|
9
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
9
|
9
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
10
|
10
90340-12097-00 Plug, Straight Screw |
90340-12097-00 |
from US $1.70 |
||
|
11
|
11
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
12
|
12
3R3-15128-01-00 Holder |
3R3-15128-01-00 |
from US $9.07 |
||
|
13
|
13
92501-08010-00 Screw, Pan Head |
92501-08010-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
98507-08010-00 Screw, Pan Head |
98507-08010-00 |
from US $1.34 |
||
